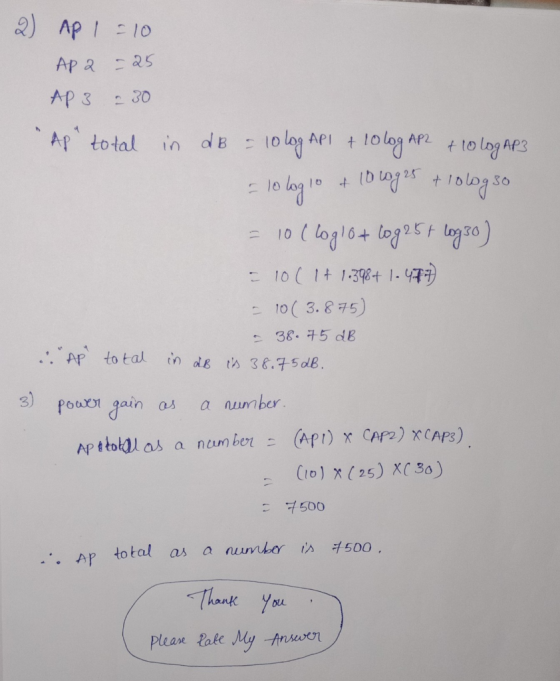

A three-stage amplifier is shown with power gains. Calculate total power gain in decibels, and...
- A three-stage amplifier is shown with power gains. Calculate total power gain in decibels, and as a number.
|
AP1 = 10 |
|
AP2 = 25 |
|
AP3 = 30 |
Homework Answers
Add Answer to:
A three-stage amplifier is shown with power gains. Calculate
total power gain in decibels, and...
Need to design and construct a two-stage amplifier with a total voltage gain of A =...
Need to design and construct a two-stage amplifier with a total voltage gain of A = A1 ∙ A2 = -Z where Z is 35. Let A1 be the gain of the first amplifier and A2 be the gain of the second amplifier. The output of Stage 1 becomes the input of Stage 2. Choose any suitable values |A|1 > 1 and |A2| >1 that you wish (Note that both gains must be strictly larger than 1. No buffers). Assume...
A single stage common emitter amplifier is shown in figure 1 200 kO 370 2 Output...
A single stage common emitter amplifier is shown in figure 1 200 kO 370 2 Output Input BC1088P The characteristic for the amplifier is given below (mA) 35 120 HA 30 25 20 60 ?? 15 40 ? A 10 20 ? A 10 12 (volts) If the amplifier is connected such that a load of 200 ? is connected across the output terminals and a signal source of sinusoidal e.m.f. 0.6 V peak and internal resistance 10 k? is...
13. Calculate the voltage gain for each stage and the overall voltage gain. AV1= ___________, AV2=...
13. Calculate the voltage gain for each stage and the overall
voltage gain.
AV1= ___________, AV2= ___________, AVoverall= ___________
14. What possible benefit is there to adding a buffer to the
front end of an inverting amplifier as shown below:
Name: Lecture Section: Lab Section: 13. Calculate the voltage gain for each stage and the overall voltage gain. Avi - Avz= __ _ Avoverall - Stage 1 ik 3.3k2 Stage 2 4702 2.7k 14. What possible benefit is there to...
1 (70 points) In the following multi-stage amplifier input and output of the amplifier as well as...
1 (70 points) In the following multi-stage amplifier input and output of the amplifier as well as the feedback resistance (RF) were AC coupled to nodes through the coupling capacitances (Ce-100uF). W/L)2 55/0.25u VAA R2 M1 Xin R, VI M2 Ri Ro a. (20 points) Calculate the bias currents of IpS,MI, IDS M2, IR2 and the total DC power consumption of the circuit assuming Ro Determine the operation regions of the transistors. (20 points) Find the type and polarity of...
22. 1) 11 points) Calculate Voltage gain A an ain Av2 of second amplifier Q2. And...
22. 1) 11 points) Calculate Voltage gain A an ain Av2 of second amplifier Q2. And calculate total Vo coupled amplifier. age gain Avi of first amplifier Qi and Voltage g Otal Voltage gain Av of the two-stage capacitor- 2 9乙 Question 3 (45 points): Using the follo two-stage capacitor-coupled amplifier s in the rgure. Vec-i 100 RI R2 The Second Amplifier Q2 100 Ril R22 500Ω 500 Ω +15 V 2N3904 R 1 4 k RC 2 k 47...
Shown below is a single stage common emitter amplifier with a unipolar dc power supply using an 2...
Shown below is a single stage common emitter amplifier with a unipolar dc power supply using an 2N3904 NPN BJT as the active device. It is specified that V+ 40 V, C1 C2CE 100uF, Ro-7.5 k2, REi-5.1kS2, and Ri - 36k52. Design the circuit so that the dc collector current is 2 mA and the magnitude of the small-signal midband voltage gain is 32.3. For the design calculations assume that the base-to- emitter dc voltage drop is 0.65 V, the...
6. Below is shown three-stage JFET amplifier circuit. VDD 15V loss 16 mA Vp--3V 1.1 k2 1.1 k2 (JF...
6. Below is shown three-stage JFET amplifier circuit. VDD 15V loss 16 mA Vp--3V 1.1 k2 1.1 k2 (JFETS J1 - J3) J1 0.1 uF J2 0.1 μF J3 500 Ω 0.1 μF sig 1 ΜΩ 2000 2000, 1 ΜΩ 2000 1 ΜΩ 180 Ω Lu a) Find the input impedance, output impedance, and no-load voltage gain for each of the three stages. b) Find the loaded voltage gain for each of the stages. c) Find the overall voltage gain...
1. A high power amplifier is rated as having a gain of 36 dB. It receives...
1. A high power amplifier is rated as having a gain of 36 dB. It receives an input power of 10 mW. What is the output power? 2. An electrical circuit has voltage attenuation of -3dB. Calculate Vout /Vin
Question 3 (10 marks) Calculate the input power , the output power and the efficiency of the amplifier circuit shown in Fig.(3) for an input voltage that results in a base current of 10 mA peak t...
Question 3 (10 marks) Calculate the input power , the output power and the efficiency of the amplifier circuit shown in Fig.(3) for an input voltage that results in a base current of 10 mA peak to peak. ㄟˇㄟ Fig. (3) 25
Question 3 (10 marks) Calculate the input power , the output power and the efficiency of the amplifier circuit shown in Fig.(3) for an input voltage that results in a base current of 10 mA peak to peak....
1. For the cascade amplifier of the figure, calculate the polarization voltages and current colle...
For the cascade amplifier of the figure, calculate the
polarization voltages
Please clarity answer, thanks!!
1. For the cascade amplifier of the figure, calculate the polarization voltages and current collector of each stage. Also, calculate the voltage gain for each stage and the total voltage gain for cascade amplifier. 2. Repeat the previous steps using a load resistance of 2.2 kΩ 3. Calculate the input and output impedances for the cascade amplifier and the cutoff frequencies (fi) for the cascade...
A single stage common emitter amplifier is shown in figure 1 200 kO 370 2 Output Input BC1088P The characteristic for the amplifier is given below (mA) 35 120 HA 30 25 20 60 ?? 15 40 ? A 10 20 ? A 10 12 (volts) If the amplifier is connected such that a load of 200 ? is connected across the output terminals and a signal source of sinusoidal e.m.f. 0.6 V peak and internal resistance 10 k? is...
13. Calculate the voltage gain for each stage and the overall
voltage gain.
AV1= ___________, AV2= ___________, AVoverall= ___________
14. What possible benefit is there to adding a buffer to the
front end of an inverting amplifier as shown below:
Name: Lecture Section: Lab Section: 13. Calculate the voltage gain for each stage and the overall voltage gain. Avi - Avz= __ _ Avoverall - Stage 1 ik 3.3k2 Stage 2 4702 2.7k 14. What possible benefit is there to...
1 (70 points) In the following multi-stage amplifier input and output of the amplifier as well as the feedback resistance (RF) were AC coupled to nodes through the coupling capacitances (Ce-100uF). W/L)2 55/0.25u VAA R2 M1 Xin R, VI M2 Ri Ro a. (20 points) Calculate the bias currents of IpS,MI, IDS M2, IR2 and the total DC power consumption of the circuit assuming Ro Determine the operation regions of the transistors. (20 points) Find the type and polarity of...
22. 1) 11 points) Calculate Voltage gain A an ain Av2 of second amplifier Q2. And calculate total Vo coupled amplifier. age gain Avi of first amplifier Qi and Voltage g Otal Voltage gain Av of the two-stage capacitor- 2 9乙 Question 3 (45 points): Using the follo two-stage capacitor-coupled amplifier s in the rgure. Vec-i 100 RI R2 The Second Amplifier Q2 100 Ril R22 500Ω 500 Ω +15 V 2N3904 R 1 4 k RC 2 k 47...
Shown below is a single stage common emitter amplifier with a unipolar dc power supply using an 2N3904 NPN BJT as the active device. It is specified that V+ 40 V, C1 C2CE 100uF, Ro-7.5 k2, REi-5.1kS2, and Ri - 36k52. Design the circuit so that the dc collector current is 2 mA and the magnitude of the small-signal midband voltage gain is 32.3. For the design calculations assume that the base-to- emitter dc voltage drop is 0.65 V, the...
6. Below is shown three-stage JFET amplifier circuit. VDD 15V loss 16 mA Vp--3V 1.1 k2 1.1 k2 (JFETS J1 - J3) J1 0.1 uF J2 0.1 μF J3 500 Ω 0.1 μF sig 1 ΜΩ 2000 2000, 1 ΜΩ 2000 1 ΜΩ 180 Ω Lu a) Find the input impedance, output impedance, and no-load voltage gain for each of the three stages. b) Find the loaded voltage gain for each of the stages. c) Find the overall voltage gain...
Question 3 (10 marks) Calculate the input power , the output power and the efficiency of the amplifier circuit shown in Fig.(3) for an input voltage that results in a base current of 10 mA peak to peak. ㄟˇㄟ Fig. (3) 25
Question 3 (10 marks) Calculate the input power , the output power and the efficiency of the amplifier circuit shown in Fig.(3) for an input voltage that results in a base current of 10 mA peak to peak....
For the cascade amplifier of the figure, calculate the
polarization voltages
Please clarity answer, thanks!!
1. For the cascade amplifier of the figure, calculate the polarization voltages and current collector of each stage. Also, calculate the voltage gain for each stage and the total voltage gain for cascade amplifier. 2. Repeat the previous steps using a load resistance of 2.2 kΩ 3. Calculate the input and output impedances for the cascade amplifier and the cutoff frequencies (fi) for the cascade...
