Three billiard balls, the two-ball, the four-ball, and the eight-ball, are arranged on a pool table...

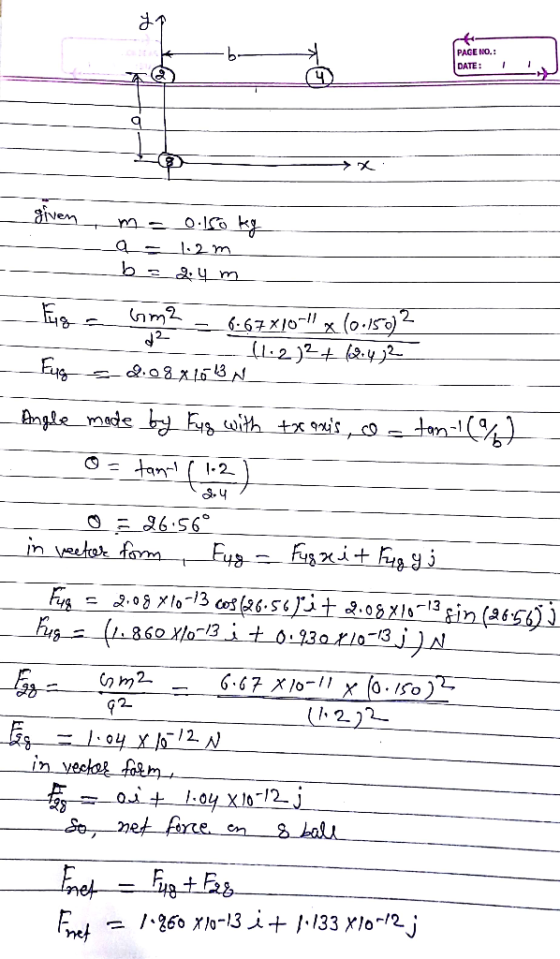

Three billiard balls, the two-ball, the four-ball, and the eight-ball, are arranged on a pool table as shown in the figure below. Given the coordinate system shown and that the mass of each ball is 0.150 kg, determine the gravitational force on the eight-ball due to the other two balls. (Assume a = 1.2 m and b = 2.4 m. Express your answer in vector form.)

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
Three billiard balls, the two-ball, the four-ball, and the eight-ball, are arranged on a pool table...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • a) Three 0.3 kg billiard balls are placed on a table at the corners of a...

    a) Three 0.3 kg billiard balls are placed on a table at the corners of a right triangle, as shown from overhead in the figure, with distances r13 = 0.285 m, r12 = 0.385 m, and r23 = 0.479 m. Find the magnitude of the net gravitational force on the cue ball (designated as m1) resulting from the forces exerted by the other two balls. N (b) Find the components of the gravitational force of m2 on m3. (Indicate the...

  • Two billiard balls, a cue ball and an eight ball, of equal mass undergo a perfectly...

    Two billiard balls, a cue ball and an eight ball, of equal mass undergo a perfectly elastic head-on collision. If the cue ball’s initial speed was 8.8 m/s, and the eight ball's was 8.3 m/s in the opposite direction, what will be the velocity of the eight ball after the collision? Consider the initial direction of the cue ball to be the positive direction.

  • A billiard ball with a mass of 0.15 kg is moving with a velocity of <...

    A billiard ball with a mass of 0.15 kg is moving with a velocity of < 5, 0, 0 > m/s. It collides with a 2nd billiard ball of mass 0.20 kg initially moving at < -7, 0, 0 > m/s. After the collision, you observe the 2nd billiard ball moving at < 0.13, 0, 0 > m/s. a) What is the velocity of the 0.15 kg billiard ball after the collision? b) What is the vector change in momentum...

  • Imagine two billiard balls on a pool table. Ball A has a mass of 2 kilograms...

    Imagine two billiard balls on a pool table. Ball A has a mass of 2 kilograms and ball B has a mass of 3 kilograms. The initial velocity of ball A is 9 meters per second to the right and the initial velocity of the ball B is 6 meters per second to the left. The final velocity of ball A is 9 meters per second to the left, while the final velocity of ball B is 6 meters to...

  • A billiard ball strikes and rebounds from the cushion of a pool table perpendicularly. The mass...

    A billiard ball strikes and rebounds from the cushion of a pool table perpendicularly. The mass of the ball is 0.38 kg. The ball approaches the cushion with a velocity of +2.50 m/s and rebounds with a velocity of -1.80 m/s. The ball remains in contact with the cushion for a time of 3.00 × 10-3 s. What is the average net force (magnitude and direction) exerted on the ball by the cushion? F =...... (number) ....... the tolerance is...

  • Two billiard balls of equal mass move at right angles and meet at the origin of...

    Two billiard balls of equal mass move at right angles and meet at the origin of an xy coordinate system. Ball A is moving upward along the y axis at vA = 2.8 m/s , and ball B is moving to the right along the x axis with speed vB = 5.8 m/s . After the collision, assumed elastic, ball B is moving along the positive y axis(Figure 1). Part A What is the final direction of ball A? Express...

  • Two billiard balls undergo an elastic collision as shown in the figure below. Ball 1 is...

    Two billiard balls undergo an elastic collision as shown in the figure below. Ball 1 is initially traveling along x with a speed of 15 m/s, and ball 2 is at rest. After the collision, ball 1 moves away with a speed of 7.5 m/s at an angle θ-60°. (For the following questions, assume the mass of ball 1 is equal to the mass of ball 2.) Ball Ball 1 Ball 21/<θ li (a) Find the speed of ball 2...

  • Two billiard balls of equal mass move at right angles and meet at the origin of...

    Two billiard balls of equal mass move at right angles and meet at the origin of an xy coordinate system. Ball A is moving upward along the y axis at vA = 2.7 m/s , and ball B is moving to the right along the x axis with speed vB = 5.5 m/s . After the collision, assumed elastic, ball B is moving along the positive y axis(Figure 1). Part A- What is the final direction of ball A? Part...

  • 2- Two identical billiard balls may move freely on a horizontal table. Ball A has a...

    2- Two identical billiard balls may move freely on a horizontal table. Ball A has a velocity of 0.4 m/s as shown, and hits ball B, which is at rest, at point C defined by ? = 40° (the line of impact is along 40° path with respect to the horizontal direction). Assuming no friction, and knowing the coefficient of restitution between the two balls is 0.75, determine the velocity of each ball after impact.

  • Three lead balls of mass m1 = 14 kg, m2 = 26 kg, and m3 =...

    Three lead balls of mass m1 = 14 kg, m2 = 26 kg, and m3 = 8.7 kg are arranged as shown in the figure below. Find the total gravitational force exerted by balls 1 and 2 on ball 3. Be sure to give the magnitude and the direction of this force. magnitude _______ N direction __________
