someone could help me with these problems :(, I would be very grateful if they detail...
someone could help me with these problems :(, I would be very grateful if they detail your answer
Problem

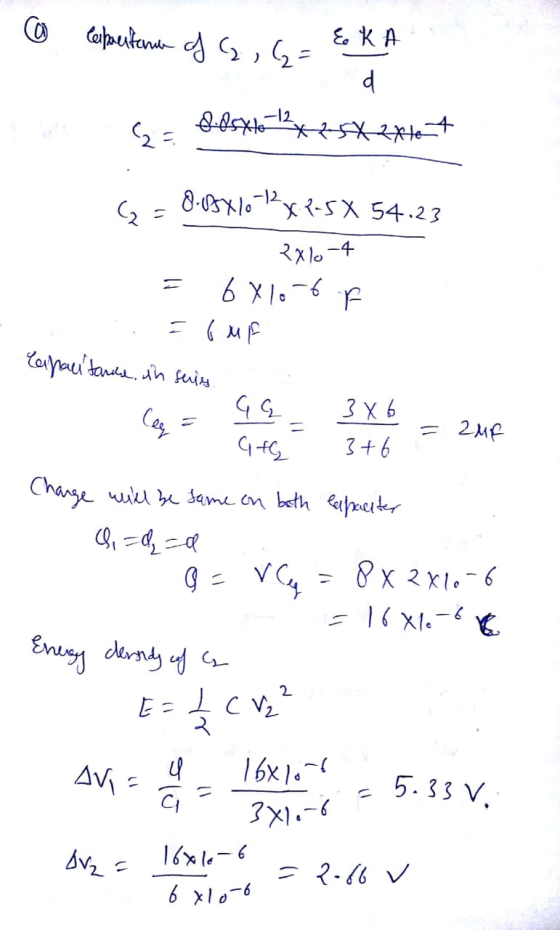

a) A capacitor C1 = 3uF is connected in series with a capacitor
C2 of parallel plates, which has a dielectric of dielectric
constant 2.5, distance of separation of plates of 2x10 ^ (- 4) and
area of 54.23m ^ 2, both initially charged and subsequently
connected to an 8V battery

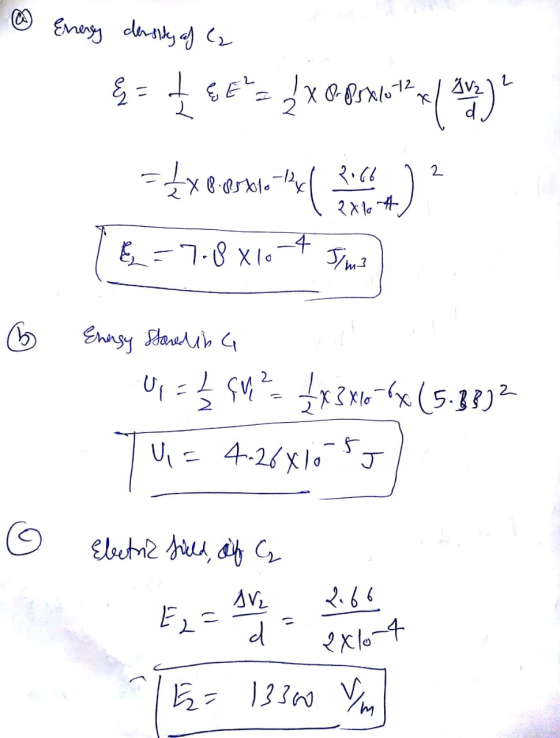

What is the energy density C2 (in SI units)?
b) referring to the previous problem
How much energy does the capacitor C1 store (in SI units)?
c) The electric field in the dielectric material in the capacitor C2 is (in kV / m)
Homework Answers
