For an audio system with a sample rate of 24000 samples per second and a period...

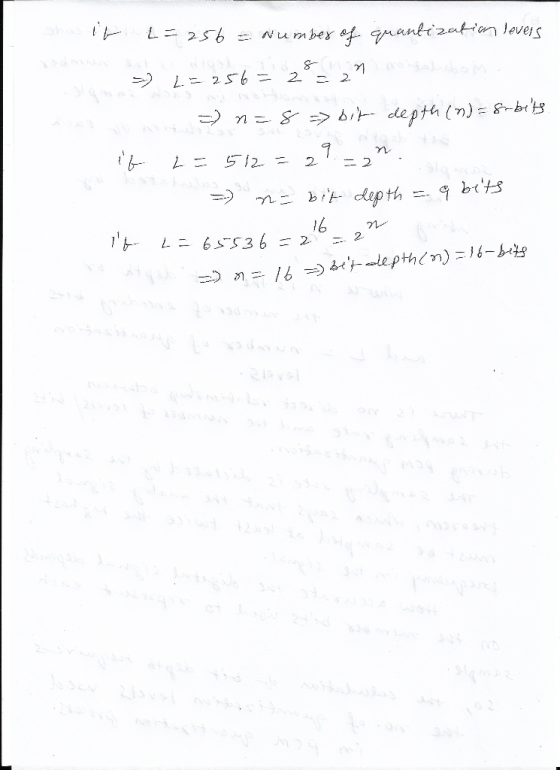

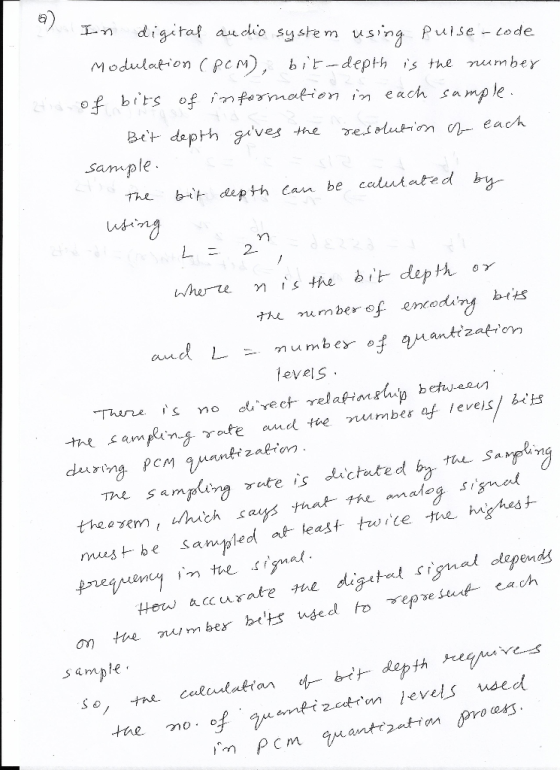

For an audio system with a sample rate of 24000 samples per second and a period of 2 milliseconds, how can I calculate the bit depth / number of bits affected?
Homework Answers
