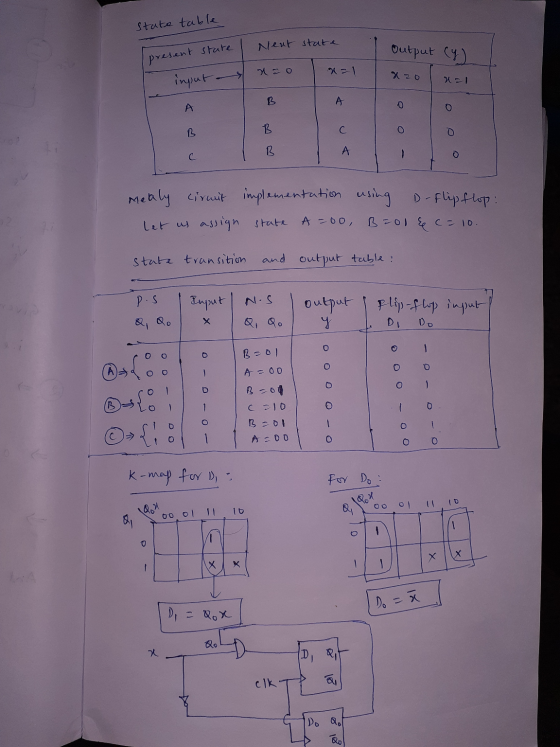

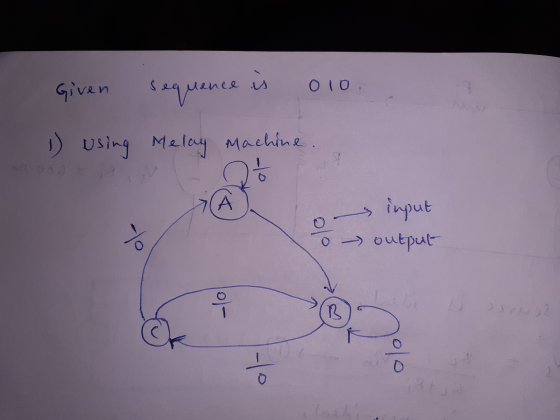

Q-Design a MEALY and MOORE machine by using D flip flop (with improvedfunctionality) for a sequence...
Q-Design a MEALY and MOORE machine by using D flip flop (with improvedfunctionality) for a sequence detector that produces an output ‘1’ whenever theoverlapping sequence 010 is detected.
This question is of the topic "Digital System Design using FPGA"
Homework Answers
Add Answer to:
Q-Design a MEALY and MOORE machine by using D flip flop (with
improvedfunctionality) for a sequence...
Design a sequential circuit whose output Z becomes 1 when the pattern "01101" is found at 1-bit input X under the following conditions. (1) Use a D flip-flop for the flip-flop used as a Mealy...
Design a sequential circuit whose output Z becomes 1 when the pattern "01101" is found at 1-bit input X under the following conditions. (1) Use a D flip-flop for the flip-flop used as a Mealy machine (2) Use a RS flip-flop for the flip-flop used as a Moore machine
Design a sequential circuit for a single-input and single output Moore-type FSM that produces an ...
digital logic
Design a sequential circuit for a single-input and single output Moore-type FSM that produces an output of 1 if in the input sequence it detects either 110 patterns. Overlapping sequences should be detected.(Note : use D flip-flops in your design. Repeat problem 2 for a Mealy-type FSM 2. 3.
Design a sequential circuit for a single-input and single output Moore-type FSM that produces an output of 1 if in the input sequence it detects either 110 patterns. Overlapping...
Using a mealy machine and D flip-flops design a sequential circuit for the sequence '1000'.
Using a mealy machine and D flip-flops design a sequential circuit for the sequence '1000'.
Design a double edge-triggered D flip-flop. The output of the flip-flop Q should "sample" the value...
Design a double edge-triggered D flip-flop. The output of the flip-flop Q should "sample" the value of the input D on both rising (+ve) and falling (-ve) edges of the clock CLK. Design an FSM counter that counts the sequence: 00, 11, 01, 10,00, 11, ..
please provide the answers of the 4 points thanks? C Tarek Ould-Bachir, PEng,PhD. Design of Sequential Circuits ise 10. nesign the sequential circuit illustrated by Figure 11 Sequence Detector. Th...
please provide the answers of the 4 points thanks?
C Tarek Ould-Bachir, PEng,PhD. Design of Sequential Circuits ise 10. nesign the sequential circuit illustrated by Figure 11 Sequence Detector. The cireuit has an input X and wo outputs Y and Z. The output Y goes high (1) whenever the sequence 1-0-1 has been detected on x. The output Z goes high (1) whenever the sequence 1-1 has been detected on X. Figure 11 Sequence Detector #2 1 Draw the state...
Draw a Moore-type state diagram and design a synchronous sequential circuit using D flip flops for...
Draw a Moore-type state diagram and design a synchronous sequential circuit using D flip flops for a 1-input/1-output "sequence detector" for the sequence 110 (be sure to recognize overlapping sequences). Draw the final circuit.
Draw a Moore-type state diagram and design a synchronous sequential circuit using D flip flops for...
Draw a Moore-type state diagram and design a synchronous sequential circuit using D flip flops for a 1-input/1-output "sequence detector" for the sequence 1001 (be sure to recognize overlapping sequences). Draw the final circuit.
Design a double edge-triggered D flip-flop using multiplexers only. The output of the flip-flop Q should...
Design a double edge-triggered D flip-flop using multiplexers only. The output of the flip-flop Q should “sample” the value of the input D on both rising (+ve) and falling (-ve) edges of the clock CLK. Provide detailed solution and explanation.
4. For the following state table 00 11 01 01 00 1 1 01 11 jus Design the system using a T flip flop for q, and an SR flip flop for the equations for the flip flop inputs and the output. 4. F...
4. For the following state table 00 11 01 01 00 1 1 01 11 jus Design the system using a T flip flop for q, and an SR flip flop for the equations for the flip flop inputs and the output.
4. For the following state table 00 11 01 01 00 1 1 01 11 jus Design the system using a T flip flop for q, and an SR flip flop for the equations for the flip flop...
Design a Moore FSM to detect an input sequence of X: 010, the output will be...
Design a Moore FSM to detect an input sequence of X: 010, the output will be 1. input: 0001010100101.. output: 0000101010010.. a. Draw the state diagram of your design [5 marks] b. Using the binary number as the state assignment, deduce the next state equation of your design. [10 marks] c. Deduce the logic equations of the next state decoder and output decoder with T flop flip as storage elements. [10 marks]
digital logic
Design a sequential circuit for a single-input and single output Moore-type FSM that produces an output of 1 if in the input sequence it detects either 110 patterns. Overlapping sequences should be detected.(Note : use D flip-flops in your design. Repeat problem 2 for a Mealy-type FSM 2. 3.
Design a sequential circuit for a single-input and single output Moore-type FSM that produces an output of 1 if in the input sequence it detects either 110 patterns. Overlapping...
Design a double edge-triggered D flip-flop. The output of the flip-flop Q should "sample" the value of the input D on both rising (+ve) and falling (-ve) edges of the clock CLK. Design an FSM counter that counts the sequence: 00, 11, 01, 10,00, 11, ..
please provide the answers of the 4 points thanks?
C Tarek Ould-Bachir, PEng,PhD. Design of Sequential Circuits ise 10. nesign the sequential circuit illustrated by Figure 11 Sequence Detector. The cireuit has an input X and wo outputs Y and Z. The output Y goes high (1) whenever the sequence 1-0-1 has been detected on x. The output Z goes high (1) whenever the sequence 1-1 has been detected on X. Figure 11 Sequence Detector #2 1 Draw the state...
4. For the following state table 00 11 01 01 00 1 1 01 11 jus Design the system using a T flip flop for q, and an SR flip flop for the equations for the flip flop inputs and the output.
4. For the following state table 00 11 01 01 00 1 1 01 11 jus Design the system using a T flip flop for q, and an SR flip flop for the equations for the flip flop...
