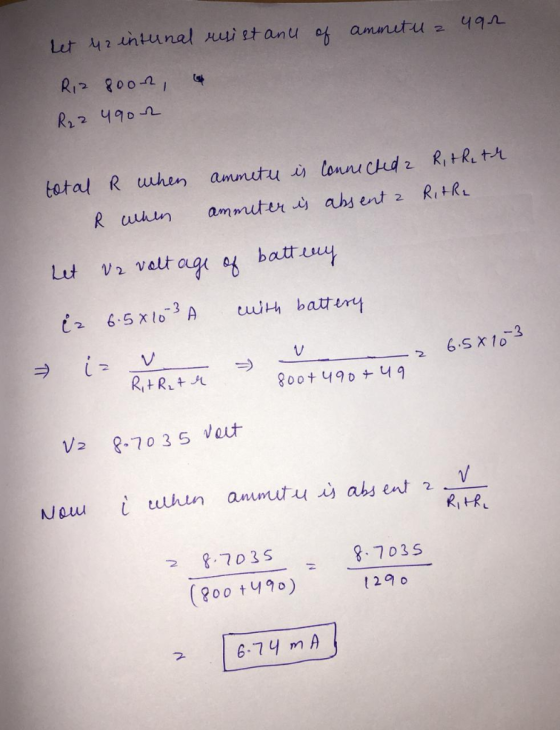

An ammeter whose internal resistance is 49 Ω reads 6.50 mA when connected in a circuit...
An ammeter whose internal resistance is 49 Ω reads 6.50 mA when connected in a circuit containing a battery and two resistors in series whose values are 800 Ω and 490 Ω .
What is the actual current when the ammeter is absent?
Homework Answers
Add Answer to:
An ammeter whose internal resistance is 49 Ω reads 6.50 mA when
connected in a circuit...
1. A battery having an emf of 9.34 V delivers 116 mA when connected to a...
1. A battery having an emf of 9.34 V delivers 116 mA when connected to a 67.5 Ω load. Determine the internal resistance of the battery. Ω 2.Three 9.4 Ω resistors are connected in series with a 19.0 V battery. Find the following. (a) the equivalent resistance of the circuit Ω (b) the current in each resistor A (c) Repeat for the case in which all three resistors are connected in parallel across the battery. equivalent resistance Ω current in...
A battery with E = 12.0 V and internal resistance r=1.2Ω is connected to two 8.5-kΩ...
A battery with E = 12.0 V and internal resistance r=1.2Ω is connected to two 8.5-kΩ resistors in series. An ammeter of internal resistance 0.30 Ωmeasures the current, and at the same time a voltmeter with internal resistance 17 kΩ measures the voltage across one of the 8.5-kΩ resistors in the circuit. What does the ammeter read? What does the voltmeter read? What is the % "error" from the current without meters? What is the % "error" from the voltage...
A 6.0 V battery is connected to two 7.70 kilo-Ohm resistors in series. An ammeter of...
A 6.0 V battery is connected to two 7.70 kilo-Ohm resistors in series. An ammeter of internal resistance 0.570 Ohm measures the current and at the same time a voltmeter with internal resistance 15.2 kilo-Ohm measures the voltage across one of the 7.70 kilo-Ohm resistors in the circuit. What does the ammeter read? What does the voltmeter read?
Consider a circuit containing a 24 V battery and a 15 Ω resistor. We want to...
Consider a circuit containing a 24 V battery and a 15 Ω resistor. We want to mesure the current in the circuit with an ammeter of internal resistance 3 mΩ and the voltage drop across the resistor with a voltmeter having an internal resistance of 100 kΩ. a. How should be the ammeter connected (series or parallel)? b. How should be the voltmeter connected (series or parallel)? c. Draw a schematic of the circuit d. Calculate the current across the...
Hello, I only need part D and E. Show all work for those two parts. The resistance of the Ammeter...
Hello,
I only need part D and E. Show all work for those two parts.
Note: the last question in part (e) asks for the I measured by
ammeter, and actual I1
In the figure below, R1-6.50 Ω and R2-R,-R4-26.0 Ω" The battery has an emf of ε-120 V. R1 Ry a.) How much energy is dissipated by all four resistors in one minute? Inserting a measurement device into a circuit to figure out what it's doing will actually affect...
A cell with emf 15V and internal resistance 5.60 is connected in series to an ammeter...
A cell with emf 15V and internal resistance 5.60 is connected in series to an ammeter and a 0-3.9M2 variable resistor. A voltmeter is connected across the terminals of the cell a) Sketch the circuit diagram b) Describe how this circuit can be used to obtain a value for the emf of the cell c) Sketch and label thegraph d) Calculate the terminal voltage when a current of 87.9mA is measured by the ammeter e) Calculate the load resistance when...
Calculate the terminal voltage for a battery with an internal resistance of 0.750 Ω and an...
Calculate the terminal voltage for a battery with an internal resistance of 0.750 Ω and an emf of 6.50 V when the battery is connected in series with an 870-Ω resistor.
When a battery voltage is measured by placing a high-resistance voltmeter across the terminals of the...
When a battery voltage is measured by placing a high-resistance voltmeter across the terminals of the battery, the voltmeter reads 6.3V. With the voltmeter leads still attached, the battery terminals are then connected to a resistor in series with an ammeter. In this arrangement, the ammeter reads 150 mA, and the voltmeter reads 5.9V. What are the emf and the internal resistance of the battery?
For the circuit shown in the figure, both meters are idealized, the battery has no appreciable internal resistance, and the ammeter reads 1.45 A.
For the circuit shown in the figure, both meters are idealized, the battery has no appreciable internal resistance, and the ammeter reads 1.45 A.a) What does the voltmeter read?b) What is the emf ε of the battery?
Find the battery voltage. E=? Find the battery internal resistance. R=? An ammeter with resistance 1.42...
Find the battery voltage.
E=?
Find the battery internal resistance.
R=?
An ammeter with resistance 1.42 Ω is connected momentarily across a battery, and the meter reads 9.78 A.When the measurement is repeated with a 2.11-2 meter, the reading is 7.41 A
Hello,
I only need part D and E. Show all work for those two parts.
Note: the last question in part (e) asks for the I measured by
ammeter, and actual I1
In the figure below, R1-6.50 Ω and R2-R,-R4-26.0 Ω" The battery has an emf of ε-120 V. R1 Ry a.) How much energy is dissipated by all four resistors in one minute? Inserting a measurement device into a circuit to figure out what it's doing will actually affect...
A cell with emf 15V and internal resistance 5.60 is connected in series to an ammeter and a 0-3.9M2 variable resistor. A voltmeter is connected across the terminals of the cell a) Sketch the circuit diagram b) Describe how this circuit can be used to obtain a value for the emf of the cell c) Sketch and label thegraph d) Calculate the terminal voltage when a current of 87.9mA is measured by the ammeter e) Calculate the load resistance when...
When a battery voltage is measured by placing a high-resistance voltmeter across the terminals of the battery, the voltmeter reads 6.3V. With the voltmeter leads still attached, the battery terminals are then connected to a resistor in series with an ammeter. In this arrangement, the ammeter reads 150 mA, and the voltmeter reads 5.9V. What are the emf and the internal resistance of the battery?
Find the battery voltage.
E=?
Find the battery internal resistance.
R=?
An ammeter with resistance 1.42 Ω is connected momentarily across a battery, and the meter reads 9.78 A.When the measurement is repeated with a 2.11-2 meter, the reading is 7.41 A
