A warehouse is supplied with water through a main pipe with A 5.00 cm diameter. A...

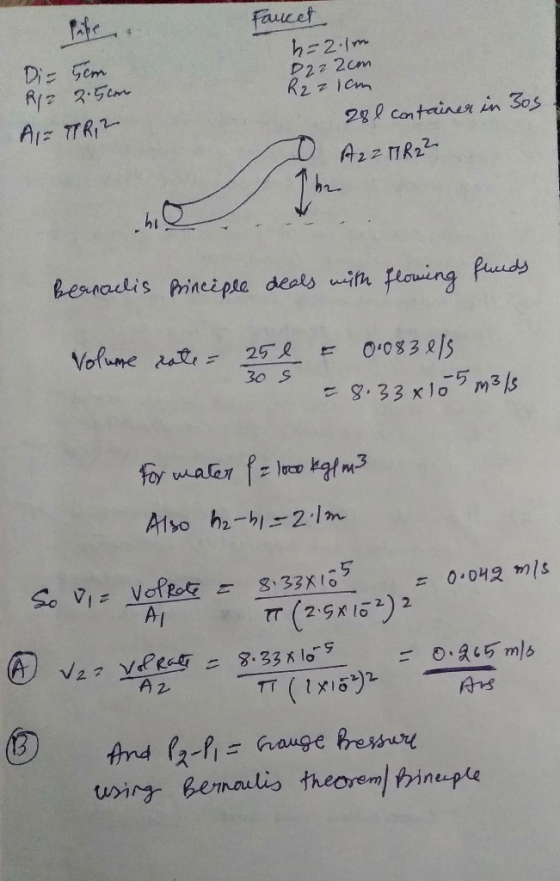

A warehouse is supplied with water through a main pipe with A 5.00 cm diameter. A faucet located h = 2.10m above the main pipe is 2.00 cm in diameter and can fill a 28.0 L container is 30.0 s.
(a) What is the speed (in m/s) at which the water leaves the faucet (in m/s)?
(b) What is the gauge pressure (in Pa) in the 5.00 cm wide main pipe? (Assume the faucet is the only "leak" in the building.)
Homework Answers
Add Answer to:
A warehouse is supplied with water through a main pipe with A
5.00 cm diameter. A...
Water flows at speed of 6 m/s through a horizontal pipe of diameter 3.5 cm. The...
Water flows at speed of 6 m/s through a horizontal pipe of
diameter 3.5 cm. The gauge pressure P1 of the water in the pipe is
1.7 atm. A short segment of the pipe is constricted to a smaller
diameter of 2.4 cm .
What is the gauge pressure of the water flowing through the
constricted segment? Atmospheric pressure is 1.013 × 10^5 Pa. The
density of water is 1000 kg/m^3 . The viscosity of water is
negligible. Answer in...
11. (10 pts). Water flows through a horizontal pipe with an inner diameter of 5.22 cm...
11. (10 pts). Water flows through a horizontal pipe with an inner diameter of 5.22 cm at a speed of 6.63 m/s. The pipe eventually widens to a diameter of 8.81 cm. a) Determine the volume flow rate for the water. b) How fast is the water moving in the wide portion of the pipe? c) What is the kinetic pressure in each portion of the pipe? d) Did the water pressure change in the wide portion of the pipe...
arolyn, living on the fourth floor of an apartment building, opens a faucet tap 1.45 cm...
arolyn, living on the fourth floor of an apartment building, opens a faucet tap 1.45 cm in radius. The tap is 12.0 m above the main water supply pipe to the building. The main water pipe is 4.05 cm in radius and has a volume flow rate of 1.35 L per second. (a) What is the speed of the water exiting Carolyn's faucet? m/s (b) If no other taps are open in the building, what is the gauge pressure in...
A 6.4 cm diameter horizontal pipe gradually narrows to 5.4 cm . When water flows through...
A 6.4 cm diameter horizontal pipe gradually narrows to 5.4 cm . When water flows through this pipe at a certain rate, the gauge pressure in these two sections is 30.0 kPa and 21.0 kPa , respectively. A.) What is the volume rate of flow?
A 7.5-cm-diameter horizontal pipe gradually narrows to 4.0 cm . When water flows through this pipe...
A 7.5-cm-diameter horizontal pipe gradually narrows to 4.0 cm . When water flows through this pipe at a certain rate, the gauge pressure in these two sections is 30.0 kPa and 22.0 kPa , respectively. What is the volume rate of flow? Express your answer using two significant figures.
8. through a faucet with a 6.0-cm diameter. The speed of the water at the faucet...
8. through a faucet with a 6.0-cm diameter. The speed of the water at the faucet is o ms. If the faucet and the nozzle are at the same height, and the water leaves the nozzle with a speed of 20 m/s, what is the diameter of the nozzle? The area of a circle is A-. Tr' the hose Selena uses a garden hose to fill a bucket of water. The water enters
The water moves through a pipe in an ideal flow, as the figure shows. At the lowest point of the pipe the pressure is P1 = 1.76 x 104 Pa and the diameter of the pipe is 4.00 cm. At the other point of the pipe, which is at a height of 0.280 m, the pressure
The water moves through a pipe in an ideal flow, as the figure shows. At the lowest point of the pipe the pressure is P1 = 1.76 x 104 Pa and the diameter of the pipe is 4.00 cm. At the other point of the pipe, which is at a height of 0.280 m, the pressure is P2 = 1.30 x 104 Pa and the diameter of the pipe is 2.00 cm. Find the speed of the water flow (a)...
A 7.5-cm-diameter horizontal pipe gradually narrows to 5.0 cm . When water flows through this pipe...
A 7.5-cm-diameter horizontal pipe gradually narrows to 5.0 cm . When water flows through this pipe at a certain rate, the gauge pressure in these two sections is 31.0 kPa and 25.0 kPa , respectively. What is the volume rate of flow? Q= ____ m^3/s Please explain step by step.
A water tower supplies water through the plumbing in a house. A 2.92-cm-diameter faucet in the...
A water tower supplies water through the plumbing in a house. A 2.92-cm-diameter faucet in the house can fill a cylindrical container with a diameter of 42.4 cm and a height of 52.0 cm in 12.0 s. How high above the faucet is the top of the water in the tower? (Assume that the diameter of the tower is so large compared to that of the faucet that the water at the top of the tower does not move.)
A horizontal pipe, 10 cm in diameter, has a smooth reduction to a pipe 5 cm...
A horizontal pipe, 10 cm in diameter, has a smooth reduction to a pipe 5 cm in diameter. If the pressure of the water in the larger pipe is 8.00*10^4 Pa and the pressure in the smaller pipe is 6.00*10^4 Pa, what is the flow speed of the water (in m/s) in the smaller pipe?
Water flows at speed of 6 m/s through a horizontal pipe of
diameter 3.5 cm. The gauge pressure P1 of the water in the pipe is
1.7 atm. A short segment of the pipe is constricted to a smaller
diameter of 2.4 cm .
What is the gauge pressure of the water flowing through the
constricted segment? Atmospheric pressure is 1.013 × 10^5 Pa. The
density of water is 1000 kg/m^3 . The viscosity of water is
negligible. Answer in...
8. through a faucet with a 6.0-cm diameter. The speed of the water at the faucet is o ms. If the faucet and the nozzle are at the same height, and the water leaves the nozzle with a speed of 20 m/s, what is the diameter of the nozzle? The area of a circle is A-. Tr' the hose Selena uses a garden hose to fill a bucket of water. The water enters
