The phase angle in a certain RL circuit is 68° at a frequency of 60.0 Hz....

Question

Question

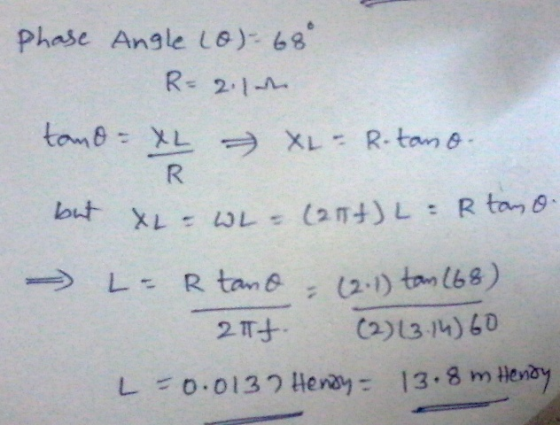

The phase angle in a certain RL circuit is 68° at a frequency of 60.0 Hz. If R = 2.1 Ω for this circuit, what is the value of the inductance, L?

science physics

Answer 1

Answer #1

Answer 2

Similar Homework Help Questions

5) A series RLC circuit is driven by a generator at a frequency of 2000 Hz and an emf amplitude of 170 V The inductance is 60.0 mH, the capacitance is 0.400 μΕ, and the resistance is 200 Ω. (a) What...

5) A series RLC circuit is driven by a generator at a frequency of 2000 Hz and an emf amplitude of 170 V The inductance is 60.0 mH, the capacitance is 0.400 μΕ, and the resistance is 200 Ω. (a) What is the phase constant in radians? (b) What is the current amplitude? 5) A series RLC circuit is driven by a generator at a frequency of 2000 Hz and an emf amplitude of 170 V The inductance is 60.0...
A multimeter in an RL circuit records an rms current of 0.400 A and a 55.0-Hz...

A multimeter in an RL circuit records an rms current of 0.400 A and a 55.0-Hz rms generator voltage of 103 V. A wattmeter shows that the average power delivered to the resistor is 14.0 W. (a) Determine the impedance in the circuit. Ω (b) Determine the resistance, R. Ω (c) Determine the inductance, L. H
Consider the RL circuit in the figure with R = 1300 Ω, L = 5 mH,...

Consider the RL circuit in the figure with R = 1300 Ω, L = 5 mH, and an AC frequency of 10 kHz. What is the phase angle ϕ in degrees between the phasors that represent VAC and the current?

RLC frequency limits Last week you studied the driven RC circuit and the driven RL circuit....

RLC frequency limits Last week you studied the driven RC circuit and the driven RL circuit. Consider the driven series RLC circuit. Its impedance is Z=R+j(ωL−1/(ωC)) . (a) For very high frequencies the driven RLC circuit behaves like an RL circuit (the effect of the capacitor becomes negligible). In this case does the current lead or lag the applied voltage in phase? A. lags B. leads C. neither What value in degrees does |ϕ| approach as ω→∞ ? (b) For...
1Calculate the reactance of a 7 H inductor at a frequency 300 Hz? 2.If an RL...

1Calculate the reactance of a 7 H inductor at a frequency 300 Hz? 2.If an RL circuit has a 40 Ω resistor in series with a 9 mH inductor, what will it’s impedance be at 450Hz? 3)An RL circuit has a 5 kΩ resistor and a 1.5 H inductor. At what frequency will the current lag the voltage by π/3? 4)An RL circuit has a 500 Ω resistor and a 0.1 H inductor. This circuit is driven by a 100...
Consider an AC series circuit. Determine the phase angle at frequencies 800 Hz, 2400 Hz, and...

Consider an AC series circuit. Determine the phase angle at frequencies 800 Hz, 2400 Hz, and 3500 Hz. The circuit is at resonance at 2400 Hz with impedance at resonance 125. Does the current lead, lag, or is in phase with the voltage? Show work. R= 100 ohms C= 0.3 micro farads L= 0.0146

A multimeter in an RL circuit records an rms current of 0.700 A and a 65.0-Hz...

A multimeter in an RL circuit records an rms current of 0.700 A and a 65.0-Hz rms generator voltage of 108 V. A wattmeter shows that the average power delivered to the resistor is 14.0 W. (a) Determine the impedance in the circuit. (b) Determine the resistance, R. (c) Determine the inductance, L.
In a certain series RLC circuit, Irms = 9.00 A, ΔVrms = 250 V, and the...

In a certain series RLC circuit, Irms = 9.00 A, ΔVrms = 250 V, and the current leads the voltage by 30.0°. (a) What is the total resistance (in Ω) of the circuit? Ω (b) Calculate the reactance (in Ω) of the circuit (XL − XC). Ω (c) What If? If the voltage in the circuit is maintained by an AC source operating at f = 60.0 Hz and the resonant frequency of the circuit is f0 = 80.0 Hz,...
An RLC series circuit is constructed with R-130.0 Ω, circuit. C-7.25 μF, and L-0.54 H. The...

An RLC series circuit is constructed with R-130.0 Ω, circuit. C-7.25 μF, and L-0.54 H. The circuit is connected to an AC generator with a frequency of 60.0 Hz that delivers a maximum current of 2.20 A to the (a) What is the impedance of this circuit? (b) What are the maximum potential differences across each of the three circuit elements (R, L, and C)? VR, max И, max Vc, max (c) What is the phase angle between the source...

An RLC series circuit is constructed with R = 190.0 Ω, C = 6.00 µF, and...

An RLC series circuit is constructed with R = 190.0 Ω, C = 6.00 µF, and L = 0.54 H. The circuit is connected to an AC generator with a frequency of 60.0 Hz that delivers a maximum current of 2.30 A to the circuit. (a) What is the impedance of this circuit? ___ Ω (b) What are the maximum potential differences across each of the three circuit elements (R, L, and C)? VR, max =___ V VL, max =___...
