Using Boolean Logic 2.9 Simplify: x + xy 2.10 (a) Simplify: xy + x’ 2.10 (b)...
Using Boolean Logic

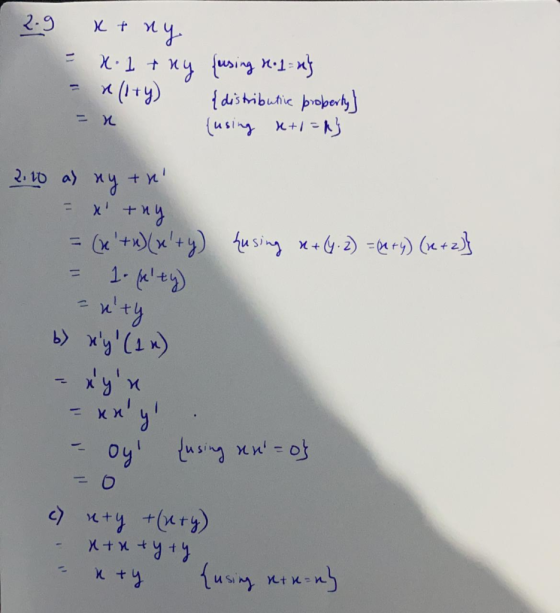

2.9 Simplify: x + xy
2.10 (a) Simplify: xy + x’
2.10 (b) Simplify: x’y’(1 x)
2.10 (c) Simplify: x + y + (x+y)

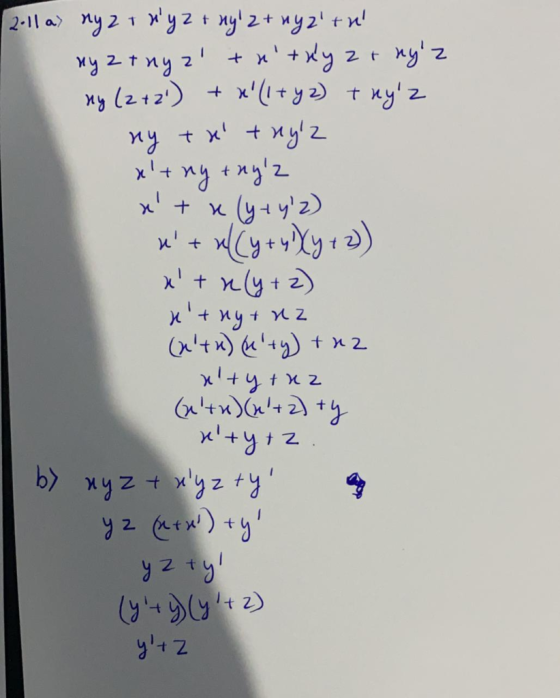

2.11(a) Simplify the expression, the AND operator is implicit: xyz + x’yz + xy’z + xyz’ + x’
2.11(b) Simplify the expression, the AND operator is implicit: xyz + x’yz +y’
2.12(a) Simplify the expression, by first forming the complements, secondly simplify the complemented expression, and third complementing the simplified expressions:
(x + y + z)(x’ + y + z)(x + y’ + z)
Homework Answers
According to HomeworkLib guidelines I have to answer only 1st 4 sub parts, but since these are related I have solved 5 of them.
Add Answer to:
Using Boolean Logic
2.9 Simplify: x + xy
2.10 (a) Simplify: xy + x’
2.10 (b)...
Simplify the following boolean expressions. Step by step please I would like to really understand it....
Simplify the following boolean expressions. Step by step please I would like to really understand it. F(x, y, z) = xy + x’y’z’ + x’yz’ F(x, y, z) = x’yz + xy’z + xy’z + x’yz’ F(x, y, z) = xy’z’ + xz + x’y’z F(w, x, y, z) =x’z + w’xy’ + w(x’y + xy’) F(w, x, y, z) =w’x’y’x’ + wy’z’ + x’yz’ + w’xyz + xy’z
3. a) Simplify the expression (ab + a’b’)(cd + c’d’) + (ab)’ b). Prove that the...
3. a) Simplify the expression (ab + a’b’)(cd + c’d’) + (ab)’ b). Prove that the expression x’y XOR xy’ = x XOR y is true. c). Simplify the function f(x, y, z) = xyz’ + xy’z’ + x’y as much as possible and give the CPOS and CSOP of f
Simplify the following Boolean expressions to the minimum number of terms using the properties of Boolean algebra (show...
Simplify the following Boolean expressions to the minimum number of terms using the properties of Boolean algebra (show your work and write the property you are applying). State if they cannot be simplified A. X’Y + XY B. (X + Y)(X + Y’) C. (A’ + B’) (A + B)’ D. ABC + A’B + A’BC’ E. XY + X(WZ + WZ’)
Using truth tables, determine whether the following expressions are the same or not. Do not simplify...
Using truth tables, determine whether the following expressions are the same or not. Do not simplify equations. a'b + a'c + ac b(a'c' + c) + b'c c + a'b' Simplify the following expressions using algebraic rules: (a+b+c)(a’+b+c)(a+b’+c’)(a’+b’+c’) (2 terms, 4 literals – POS form) The rest will be SOP form: ab'c + bd + bcd'+ ab'c' + abc'd (3 terms, 6 literals) xyz’ + x’yz’ + x’yz + xyz (1 terms, 1 literal) a’b’c’ + a’bc’ + a’bc +...
Use Boolean Algebra to simplify the following Boolean expressions to three (3) literals. Please write down...
Use Boolean Algebra to simplify the following Boolean expressions to three (3) literals. Please write down the intermediate steps. 1). F11(x,y,z) = x'yz+xyz +x'y'Z+xy'Z+ xy'z 2). F12(x,y,z) = (y'+xyz')' Question 2 [2 points) Obtain the function expression of F2 from the logic diagram. Question 3 [3 points) Obtain the truth table of the following function and rewrite the function in Canonical POS (Product of Maxterms) format: F3(a,b,c) = (a'+c)(a+b+c') +a'bc' Question 4 (2 points) Convert the following function to Canonical...
1. Simplify the following Boolean expression: (solution should be one term) XY+XY 2. Simplify the following...
1. Simplify the following Boolean expression: (solution should be one term) XY+XY 2. Simplify the following Boolean expression: (solution should be one term) (X+Y)(X+Y)(X'+Z”) 3. Simplify the following Boolean expression ABC+ABC'+AB'C+AB'C' 4. Simplify the following Boolean expression AB +A'C +BC 5. Simplify the following Boolean expression. (A+B)(AB)
Please simplify the following Boolean expression to its simplest form: F(x, y, z) = y'z +...
Please simplify the following Boolean expression to its simplest form: F(x, y, z) = y'z + x'yz + xyz? Please simplify the following Boolean expression to its simplest form: F(x, y) = (x + y)(xy)’ + ((x + y)(xy)’)’?
please answers all of them! 1. Simplify, using algebraic manipulations, the following Boolean expressions to a...
please answers all of them!
1. Simplify, using algebraic manipulations, the following Boolean expressions to a mini- mum number of terms and factors. (a) XYZ + XY + XYZ (b) XYZ + XZ 2. Find the complement of the following expression: (a) XY + XY 3. Using DeMorgan's Theorem, express the following function .... (a) F= XY+XY + ÝZ ... with only OR and complement operations. 4. Propose and solve your own logic simplification problem using logic theorems 5. Simplify...
Computer Science: Computer Architecture 3. Do the following problems: Consider a circuit with 4 binary inputs....
Computer Science: Computer Architecture 3. Do the following problems: Consider a circuit with 4 binary inputs. It counts the number of 1’s on its input and expresses (encodes or represents) the count as binary values on 2 output lines. a. Draw a truth table to represent the functions of the circuit. b. Provide SOP expressions for the output lines. c. Simplify the SOP expressions. d. Implement the circuit using 2-input NAND gates. 4. do the fowolling problems: a. Verify: xyz...
Due tomorrow! I need help. The Boolean function F(x, y) = x'y + xy' + (x'+y')(xy)...
Due tomorrow! I need help. The Boolean function F(x, y) = x'y + xy' + (x'+y')(xy) can be simplified to: x'y' 1 xy x Å y What is the simplified expression for the following Kmap? X'Z + XZ Y' Z + X'Z Z Question 3 (10 points) 3. 1. W' + WX'YZ' 2. W'Y' + W'Y + WX'YZ' 3. W'Y' + W'X' + X'YZ' W' + X'YZ' Question 4 (2 points) 4. There are ____________ megabytes in a terabyte. 230...
Use Boolean Algebra to simplify the following Boolean expressions to three (3) literals. Please write down the intermediate steps. 1). F11(x,y,z) = x'yz+xyz +x'y'Z+xy'Z+ xy'z 2). F12(x,y,z) = (y'+xyz')' Question 2 [2 points) Obtain the function expression of F2 from the logic diagram. Question 3 [3 points) Obtain the truth table of the following function and rewrite the function in Canonical POS (Product of Maxterms) format: F3(a,b,c) = (a'+c)(a+b+c') +a'bc' Question 4 (2 points) Convert the following function to Canonical...
1. Simplify the following Boolean expression: (solution should be one term) XY+XY 2. Simplify the following Boolean expression: (solution should be one term) (X+Y)(X+Y)(X'+Z”) 3. Simplify the following Boolean expression ABC+ABC'+AB'C+AB'C' 4. Simplify the following Boolean expression AB +A'C +BC 5. Simplify the following Boolean expression. (A+B)(AB)
please answers all of them!
1. Simplify, using algebraic manipulations, the following Boolean expressions to a mini- mum number of terms and factors. (a) XYZ + XY + XYZ (b) XYZ + XZ 2. Find the complement of the following expression: (a) XY + XY 3. Using DeMorgan's Theorem, express the following function .... (a) F= XY+XY + ÝZ ... with only OR and complement operations. 4. Propose and solve your own logic simplification problem using logic theorems 5. Simplify...
