A pump test at site produces the following results: Flow 192 m³/h, Total head 70m, Impeller...
|

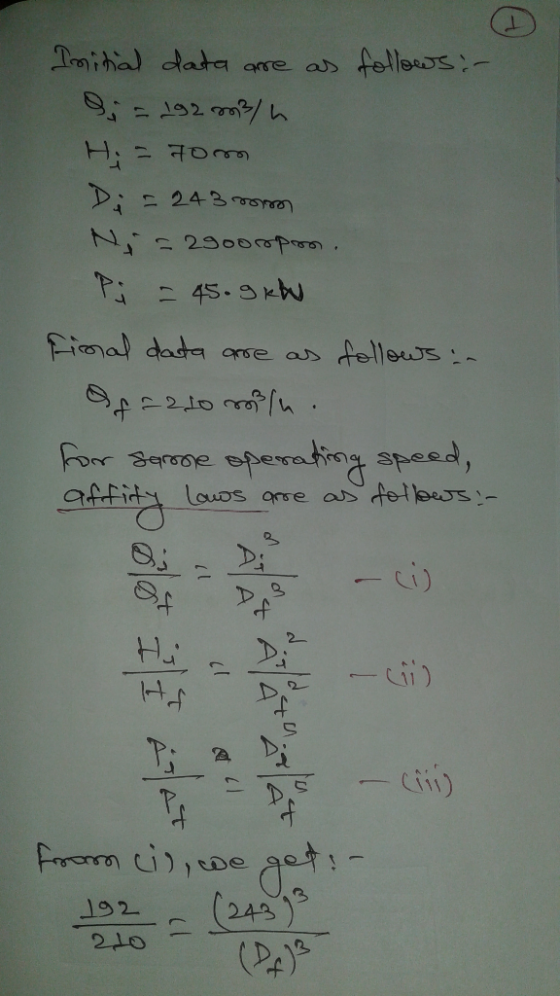

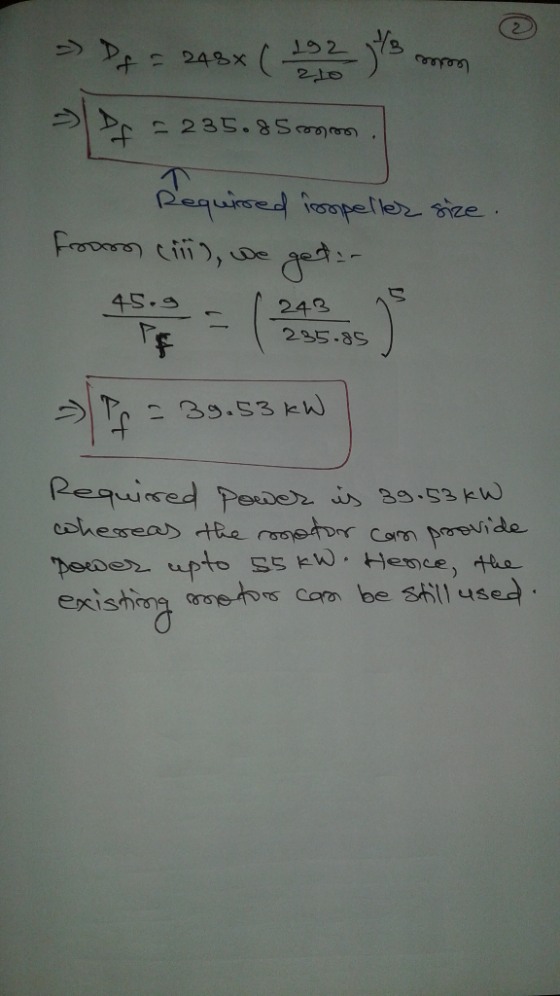

A pump test at site produces the following results: Flow 192 m³/h, Total head 70m, Impeller Ø243mm, power draw from a 2900rpm, 55kW motor = 45.9kW. Production want to increase the flow rate to 210 m³/h and as the responsible engineer you have to inform them of the changes necessary to meet their new requirement.
|
Homework Answers
