Is there any situation that the negative-sequence equivalent circuit can be applied to study the relationship...

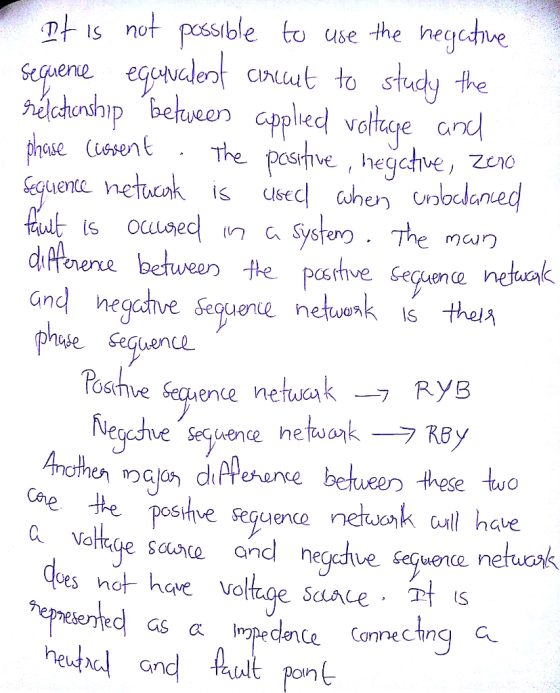

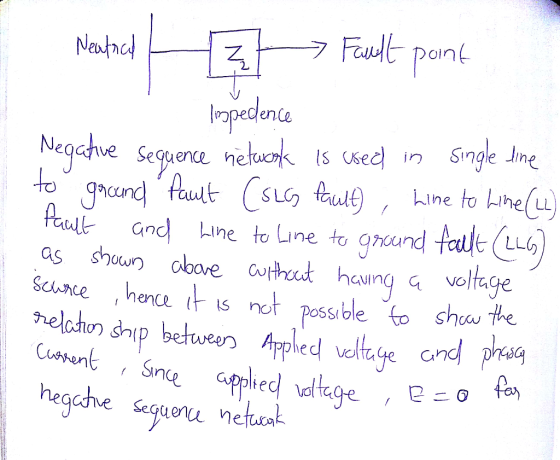

Is there any situation that the negative-sequence equivalent circuit can be applied to study the relationship between applied voltage and phase current? Give your explanation.
Homework Answers
Add Answer to:
Is there any situation that the negative-sequence equivalent
circuit can be applied to study the relationship...
Thevenin's Theorem. "Any two-terminal, linear bilateral DC network can be replaced by an equivalent circuit consisting...
Thevenin's Theorem. "Any two-terminal, linear bilateral DC network can be replaced by an equivalent circuit consisting of a voltage source and a series resistor."This means that a circuit such as the one in Figure 1 can be replaced by a power supply and a series resistor, allowing for a quicker analysis of changes in load resistance,(RO) R3 Figure 1 Some of the advantages offered by this theorem are: • It allows the determination of any given voltage or current in...
According to the equivalent circuit of a three-phase induction motor, can we deduce the formulas for...
According to the equivalent circuit of a three-phase induction motor, can we deduce the formulas for electromagnetic torque calculation? Give your explanation.
Problem 1.A (2 pnts) In a balanced 3-phase circuit, a 3-phase voltage source with negative phase...
Problem 1.A (2 pnts) In a balanced 3-phase circuit, a 3-phase voltage source with negative phase sequence is connected to a three phase load. If the current between the C and B nodes at the load is ſcb = 1202 - 120° Arms what is the line current ſaa? + CC Cm A 2 line Problem 1.B (8 pnts) A balanced 3-phase circuit consists of a Y-connected 3-phase source with negative phase sequence, a delta-connected load, and a 3-phase transmission...
The equivalent circuit of a 440 V, 3-phase, 8 pole, and 50 Hz star-connected induction motor (HELP)
Question: The equivalent circuit of a 440 V, 3-phase, 8 pole, and 50 Hz star-connected induction motor is shown in figure 1. The short-circuit test is conducted with a locked rotor and a line current of 80 A. The open-circuit test is conducted by supplying the stator winding at rated voltage and at the rotor is rotating freely without any mechanical load. Fig. 1 The per-phase equivalent circuit of a 3-phase induction motora) Determine the line voltage and power factor on the...
1.) For a balanced three-phase wye-wye circuit. For a negative or ‘acb' sequence, SOURCE с LOAD...
1.) For a balanced three-phase wye-wye circuit. For a negative or ‘acb' sequence, SOURCE с LOAD a + Van n 5k b If Van = 100 VAC (effective voltage) a. Find the other phase voltages, Von and Vcn, including phase angles. b. Find the Line Voltages, including phase angles. C. If Zy = 5k12, find the magnitude of the phase and line currents. note: review the notes from Wednesday/Thursday on which measurements are phase, line, voltages and currents.
2) Circuitous Equivalence (20 points). Solve the circuit below to determine the relationship between Ri and...
2) Circuitous Equivalence (20 points). Solve the circuit below to determine the relationship between Ri and R2. The bottom node is grounded as shown, and the voltage at node A-+1 V relative to ground. Solve the circuit using two different methods, referring to Figure 2-37 in the textbook. by first making Vs and Ri into an equivalent current source and resistor and ther reducing and solving the circuit. by first making Is and R2 into an equivalent voltage source and...
The circuit below can be used to simulate/measure the equivalent resistance of a circuit. The voltage...
The circuit below can be used to simulate/measure the equivalent resistance of a circuit. The voltage from V, to ground will be the equivalent resistance because V-IR and in this case the current source ll is equal to 1 Amp. Note that in general Amp.s not used by a resistance meter as it can cause a too much power to be dissipated by the resistor which can burn out the resistor or change its value.) Create the circuit shown below...
Consider an RC circuit with R=8.10 k, C=1.30 F. The rms applied voltage is 240 V...
Consider an RC circuit with R=8.10 k,
C=1.30
F. The rms applied voltage is 240 V at 60.0 Hz.
Part A:
What is the rms current in the circuit?
Part B:
What is the phase angle between voltage and current?
Part C:
What are the voltmeter readings across R and C?
We were unable to transcribe this imageWe were unable to transcribe this image
Equivalent circuit of 440V, 3-phase, 8 pole, 50 Hz star-connected induction motor
The equivalent circuit of a 440 V, 3-phase, 8 pole, and 50 Hz star-connected induction motor is shown in figure 1. The short-circuit test is conducted with a locked rotor and a line current of 80 A. The open-circuit test is conducted by supplying the stator winding at rated voltage and at the rotor is rotating freely without any mechanical load.a) Determine the line voltage and power factor on the short circuit test;b) We need to apply a low...
From your experimental observations of a series circuit, what relationship do you find between the voltages...
From your experimental observations of a series circuit, what relationship do you find between the voltages across the individual resistance and voltage across the entire series group? From your experimental observations of a series circuit, what relationship do you find between the currents through the individual resistance and current through the entire series network? From your experimental observations of a parallel circuit, what relationship do you find between the voltages across the individual resistance and voltage across the entire parallel...
Thevenin's Theorem. "Any two-terminal, linear bilateral DC network can be replaced by an equivalent circuit consisting of a voltage source and a series resistor."This means that a circuit such as the one in Figure 1 can be replaced by a power supply and a series resistor, allowing for a quicker analysis of changes in load resistance,(RO) R3 Figure 1 Some of the advantages offered by this theorem are: • It allows the determination of any given voltage or current in...
Problem 1.A (2 pnts) In a balanced 3-phase circuit, a 3-phase voltage source with negative phase sequence is connected to a three phase load. If the current between the C and B nodes at the load is ſcb = 1202 - 120° Arms what is the line current ſaa? + CC Cm A 2 line Problem 1.B (8 pnts) A balanced 3-phase circuit consists of a Y-connected 3-phase source with negative phase sequence, a delta-connected load, and a 3-phase transmission...
1.) For a balanced three-phase wye-wye circuit. For a negative or ‘acb' sequence, SOURCE с LOAD a + Van n 5k b If Van = 100 VAC (effective voltage) a. Find the other phase voltages, Von and Vcn, including phase angles. b. Find the Line Voltages, including phase angles. C. If Zy = 5k12, find the magnitude of the phase and line currents. note: review the notes from Wednesday/Thursday on which measurements are phase, line, voltages and currents.
2) Circuitous Equivalence (20 points). Solve the circuit below to determine the relationship between Ri and R2. The bottom node is grounded as shown, and the voltage at node A-+1 V relative to ground. Solve the circuit using two different methods, referring to Figure 2-37 in the textbook. by first making Vs and Ri into an equivalent current source and resistor and ther reducing and solving the circuit. by first making Is and R2 into an equivalent voltage source and...
The circuit below can be used to simulate/measure the equivalent resistance of a circuit. The voltage from V, to ground will be the equivalent resistance because V-IR and in this case the current source ll is equal to 1 Amp. Note that in general Amp.s not used by a resistance meter as it can cause a too much power to be dissipated by the resistor which can burn out the resistor or change its value.) Create the circuit shown below...
Consider an RC circuit with R=8.10 k,
C=1.30
F. The rms applied voltage is 240 V at 60.0 Hz.
Part A:
What is the rms current in the circuit?
Part B:
What is the phase angle between voltage and current?
Part C:
What are the voltmeter readings across R and C?
We were unable to transcribe this imageWe were unable to transcribe this image
From your experimental observations of a series circuit, what relationship do you find between the voltages across the individual resistance and voltage across the entire series group? From your experimental observations of a series circuit, what relationship do you find between the currents through the individual resistance and current through the entire series network? From your experimental observations of a parallel circuit, what relationship do you find between the voltages across the individual resistance and voltage across the entire parallel...
