A company is using a proprietary protocol stack of N layers. Applications generate messages of size...

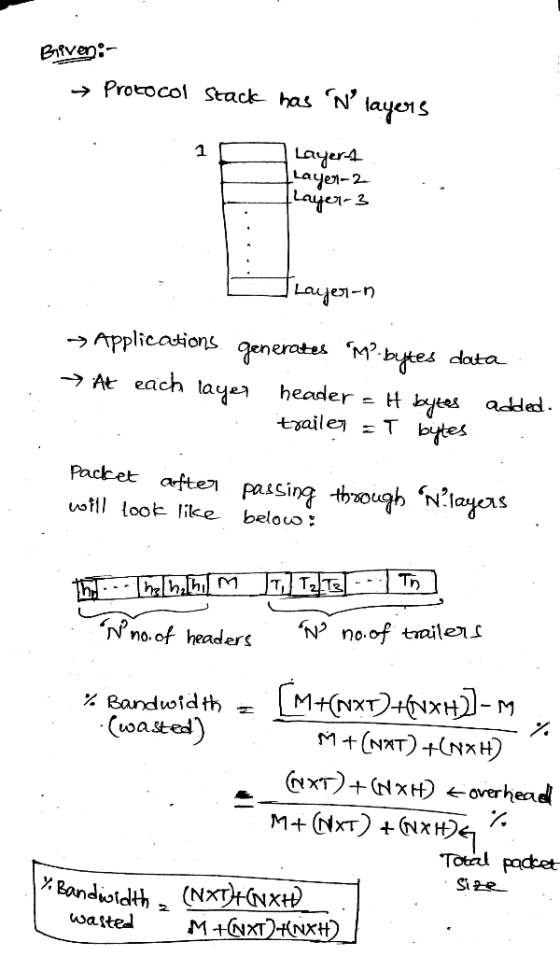

A company is using a proprietary protocol stack of N layers. Applications generate messages of size M bytes, and at each layer, a header of length H bytes and a trailer of length T bytes is added.
What percentage of bandwidth is wasted on overhead?
