A 125-turn coil has a radius of 5 mm. A magnetic field along the axis of...

A 125-turn coil has a radius of 5 mm. A magnetic field along the axis of the coil rises from zero to 0.34 T in 25 ms. Calculate the magnitude of the EMF induced across the coil.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

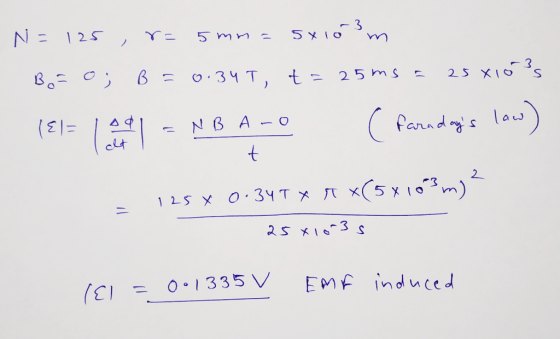

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
A 125-turn coil has a radius of 5 mm. A magnetic field along the axis of...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • The component of the external magnetic field along the central axis of a 125-turn circular coil o...

    The component of the external magnetic field along the central axis of a 125-turn circular coil of radius 26.0 cm decrsases from 2.40 T to 0.650 T in 3.50 s. If the resistance of the col is 9.000,what is the magnitude of the induced current in the coil? Number What is the direction of the current if the axial component of the field points away from the viewer? clockwise O counter-clockwise The component of the external magnetic field along the...

  • The component of the external magnetic field along the central axis of a 33-turn circular coil...

    The component of the external magnetic field along the central axis of a 33-turn circular coil of radius 34.0 cm decreases from 1.90 T to 0.700 T in 2.10 s. If the resistance of the coil is 7.50 Ω, what is the magnitude of the induced current in the coil?

  • An external magnetic field is parallel to the central axis of a 65.0-turn coil of radius...

    An external magnetic field is parallel to the central axis of a 65.0-turn coil of radius 7.50 cm. During an interval of 156 ms, the field changes from 0.180 T in one direction to 0.340 T in the opposite direction. The resistance of the coil is 70.0 Ω. What is the average induced current in the coil during this interval?

  • The component of the external magnetic field along the central axis of a 125125 turn circular...

    The component of the external magnetic field along the central axis of a 125125 turn circular coil of radius 34.034.0 cm decreases from 2.902.90 T to 0.5000.500 T in 1.401.40 s. If the resistance of the coil is ?=6.00R=6.00 Ω, what is the magnitude of the induced current in the coil?

  • The component of the external magnetic field along the central axis of a 1212 turn circular...

    The component of the external magnetic field along the central axis of a 1212 turn circular coil of radius 19.019.0 cm decreases from 1.901.90 T to 0.7500.750 T in 1.101.10 s. If the resistance of the coil is ?=3.00R=3.00 Ω, what is the magnitude of the induced current in the coil?

  • A 141 turn circular coil of radius 2.61 cm is immersed in a uniform magnetic field...

    A 141 turn circular coil of radius 2.61 cm is immersed in a uniform magnetic field that is perpendicular to the plane of the coil. Over an interval of 0.177 s , the magnetic field strength increases from 53.1 mT to 96.9 mT . Find the magnitude of the average emf avg induced in the coil during this time interval, in millivolts. A 141 turn circular coil of radius 2.61 cm is immersed in a uniform magnetic field that is...

  • A uniform magnetic field makes an angle of 35∘∘ with the axis of a circular coil...

    A uniform magnetic field makes an angle of 35∘∘ with the axis of a circular coil of wire. The coil has a radius of 6 cmcm and 400 turns. The magnitude of the magnetic field decreases at a rate of 15 T/sT/s . What is the magnitude of the emf induced in the coil?

  • A 129 turn circular coil of radius 2.49cm is immersed in a uniform magnetic field that...

    A 129 turn circular coil of radius 2.49cm is immersed in a uniform magnetic field that is perpendicular to the plane of the coil. Over an interval of 0.141 s, the magnetic field strength increases from 50.3 mT to 98.5 mT. Find the magnitude of the average emf Eavg induced in the coil during this time interval, in millivolts. Eavg= mV

  • A 123-turn circular coil of radius 2.35 cm is immersed in a uniform magnetic field that...

    A 123-turn circular coil of radius 2.35 cm is immersed in a uniform magnetic field that is perpendicular to the plane of the coil. During 0.197 s the magnetic field strength increases from 53.5 mT to 95.7 mT. Find the magnitude of the average EMF, in millivolts, that is induced in the coil during this time interval.

  • 1) A 179‑turn circular coil of radius 3.55 cm and negligible resistance is immersed in a...

    1) A 179‑turn circular coil of radius 3.55 cm and negligible resistance is immersed in a uniform magnetic field that is perpendicular to the plane of the coil. The coil is connected to a 13.7 Ω resistor to create a closed circuit. During a time interval of 0.121 s, the magnetic field strength decreases uniformly from 0.643 T to zero. Find the energy, in millijoules, that is dissipated in the resistor during this time interval. energy: mJ 2) You decide...
