A 32k x 8 memory device with one chip select, active low, is to be mapped...

Question

Question

A 32k x 8 memory device with one chip select, active low, is to be mapped...

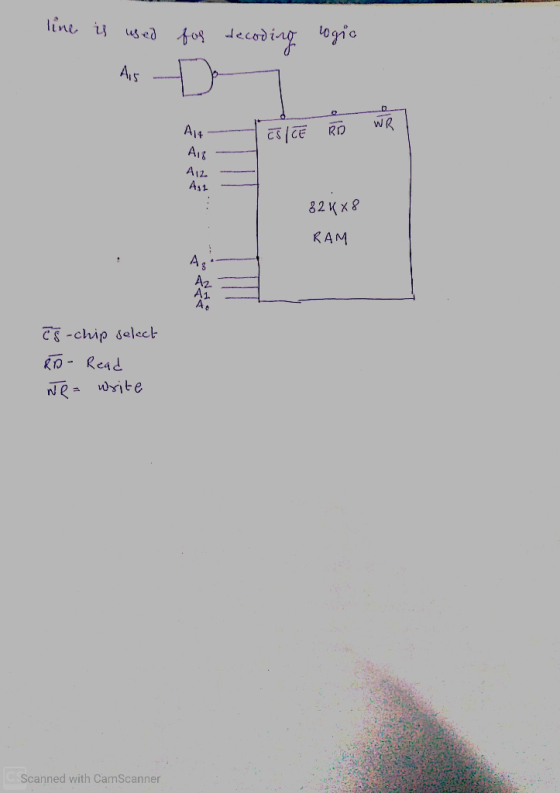

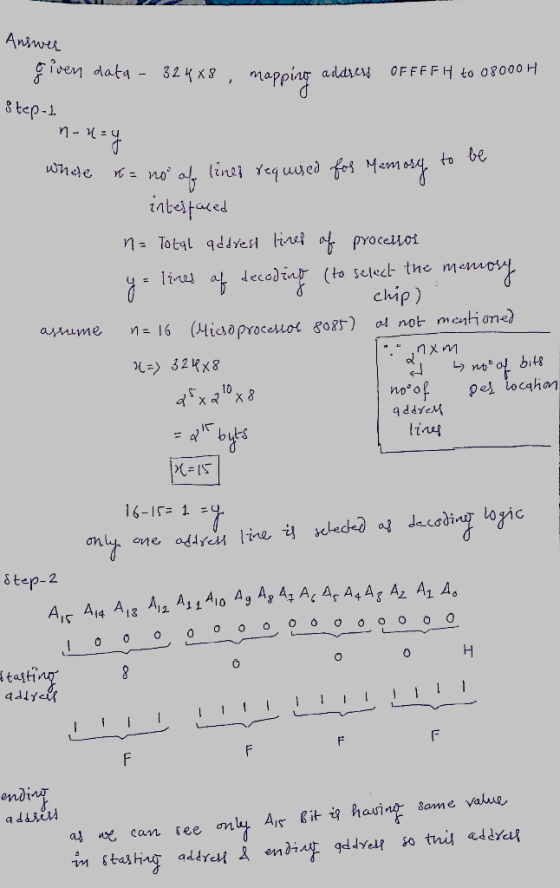

A 32k x 8 memory device with one chip select, active low, is to be mapped into the address space 0FFFF – 08000H. Show how this could be done.

engineering Electrical-Engineering

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

Answer question

Add a comment

Answer 2
