A 590.0-Ω resistor is connected across the terminals of a 20.0-nF capacitor that carries an initial...
A 590.0-Ω resistor is connected across the terminals of a 20.0-nF capacitor that carries an initial charge of 8.20 µC.
(a) What is the magnitude of the maximum current in the
resistor?
A
(b) What is the current in the resistor 5.00 µs after the circuit
is completed and the capacitor begins to discharge through the
resistor? (Indicate the direction with the sign of your
answer.)
A
(c) How much charge remains in the capacitor 5.00 µs after the
circuit is completed?
µC

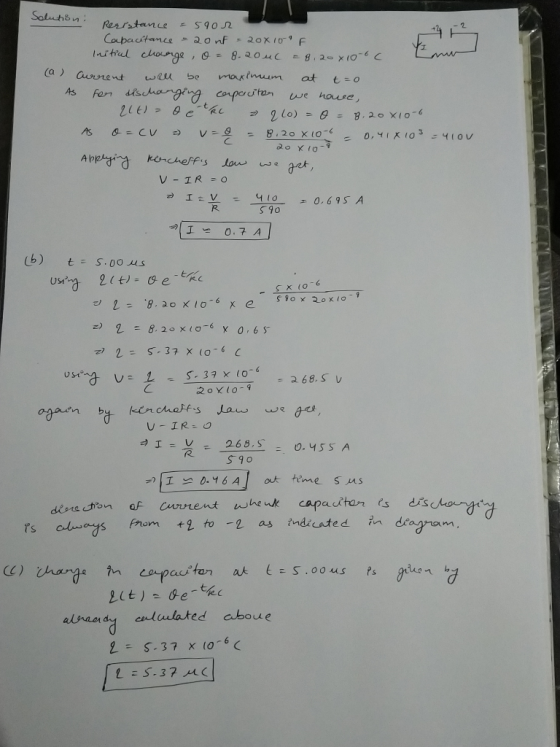

Homework Answers
Add Answer to:
A 590.0-Ω resistor is connected across the terminals of a
20.0-nF capacitor that carries an initial...
A 2.00-nF capacitor with an initial charge of 5.71 µC is discharged through a 2.41-kΩ resistor....
A 2.00-nF capacitor with an initial charge of 5.71 µC is discharged through a 2.41-kΩ resistor. (a) Calculate the current in the resistor 9.00 µs after the resistor is connected across the terminals of the capacitor. (Let the positive direction of the current be defined such that (dQ/dt) > 0.) mA (b) What charge remains on the capacitor after 8.00 µs? µC (c) What is the (magnitude of the) maximum current in the resistor? A
A 2.00-nF capacitor with an initial charge of 4.99 µC is discharged through a 1.61-kΩ resistor....
A 2.00-nF capacitor with an initial charge of 4.99 µC is discharged through a 1.61-kΩ resistor. (a) Calculate the current in the resistor 9.00 µs after the resistor is connected across the terminals of the capacitor. (Let the positive direction of the current be define such that dQ dt > 0.) (b) What charge remains on the capacitor after 8.00 µs? (c) What is the (magnitude of the) maximum current in the resistor?
A 2.10 nF capacitor with an initial charge of 4.55 µC is discharged through a 1.18...
A 2.10 nF capacitor with an initial charge of 4.55 µC is discharged through a 1.18 kΩ resistor. (a) Calculate the current in the resistor 9.00 µs after the resistor is connected across the terminals of the capacitor. ____ mA (b) What charge remains on the capacitor after 8.00 µs? ____µC (c) What is the maximum current in the resistor?
At time t = 0, a 650.0 Ohm resistor is connected across the terminals of a...
At time t = 0, a 650.0 Ohm resistor is connected across the terminals of a 17.0 nF capacitor that carries a charge of 8.20 mu C. a. What is the maximum current through the resistor? b. What is the current in the resistor at t = 5.00 mu s? c. What is the charge remaining on the capacitor plates at t = 5.00 mu s?
A 4900 Ω resistor is connected across a charged 0.780 nF capacitor. The initial current through...
A 4900 Ω resistor is connected across a charged 0.780 nF capacitor. The initial current through the resistor, just after the connection is made, is measured to be 0.265 A . a.What magnitude of charge was initially on each plate of this capacitor? b. How long after the connection is made will it take before the charge is reduced to 1e of its maximum value?
A 2.00-nF capacitor with an initial charge of 4.51 uC is discharged through a 1.06-k2 resistor....
A 2.00-nF capacitor with an initial charge of 4.51 uC is discharged through a 1.06-k2 resistor. (a) Calculate the current in the resistor 9.00 us after the resistor is connected across the terminals of the capacitor. dQ (Let the positive direction of the current be define such that >0.) dt x How is the instantaneous current related to the potential difference across the capacitor? ma (b) What charge remains on the capacitor after 8.00 us? X What is the equation...
A 2.00-nF capacitor with an initial charge of 5.46 μC is discharged through a 1.33-kΩ resistor....
A 2.00-nF capacitor with an initial charge of 5.46 μC is discharged through a 1.33-kΩ resistor. (a) Calculate the magnitude of the current in the resistor 9.00 μs after the resistor is connected across the terminals of the capacitor. mA (b) What charge remains on the capacitor after 8.00 μs? μC (c) What is the maximum current in the resistor? A
A 2.00-nF capacitor with an initial charge of 5.52 uC is discharged through a 2.67-kQ resistor....
A 2.00-nF capacitor with an initial charge of 5.52 uC is discharged through a 2.67-kQ resistor. (a) Calculate the current in the resistor 9.00 us after the resistor is connected across the terminals of the capacitor. (Let the positive direction of the current be define such that >0.) dt 19.25 The current through the resistor is considered to be negative, so that I = dQ/dt. mA (b) What charge remains on the capacitor after 8.00 us? μC (c) What is...
1. A 450 nF capacitor is initially uncharged. The capacitor is connected in series with a...
1. A 450 nF capacitor is initially uncharged. The capacitor is connected in series with a 2,500 resistor and a 6.00 V ideal battery. The circuit is “closed” allowing current to flow and the capacitor to start charging. a. What is the time constant of this RC circuit? b. What is the current through the resistor when the circuit is first “closed”? c. How much time is required for the voltage across the capacitor to reach 5.00 V? d....
A 9.0-Ω resistor and a 6.0-Ω resistor are connected in parallel across a power supply, and...
A 9.0-Ω resistor and a 6.0-Ω resistor are connected in parallel across a power supply, and the current through the 9.0-Ω resistor is found to be 0.25 A. Find the voltage setting of the power supply. A series RC circuit for which C = 6.0 μF, R = 2.0 × 106 Ω, and ε = 20 V. Find the maximum charge on the capacitor after a switch in the circuit is closed.
At time t = 0, a 650.0 Ohm resistor is connected across the terminals of a 17.0 nF capacitor that carries a charge of 8.20 mu C. a. What is the maximum current through the resistor? b. What is the current in the resistor at t = 5.00 mu s? c. What is the charge remaining on the capacitor plates at t = 5.00 mu s?
A 2.00-nF capacitor with an initial charge of 4.51 uC is discharged through a 1.06-k2 resistor. (a) Calculate the current in the resistor 9.00 us after the resistor is connected across the terminals of the capacitor. dQ (Let the positive direction of the current be define such that >0.) dt x How is the instantaneous current related to the potential difference across the capacitor? ma (b) What charge remains on the capacitor after 8.00 us? X What is the equation...
A 2.00-nF capacitor with an initial charge of 5.52 uC is discharged through a 2.67-kQ resistor. (a) Calculate the current in the resistor 9.00 us after the resistor is connected across the terminals of the capacitor. (Let the positive direction of the current be define such that >0.) dt 19.25 The current through the resistor is considered to be negative, so that I = dQ/dt. mA (b) What charge remains on the capacitor after 8.00 us? μC (c) What is...
