A block of mass m is initially at rest at the top of an inclined plane,...

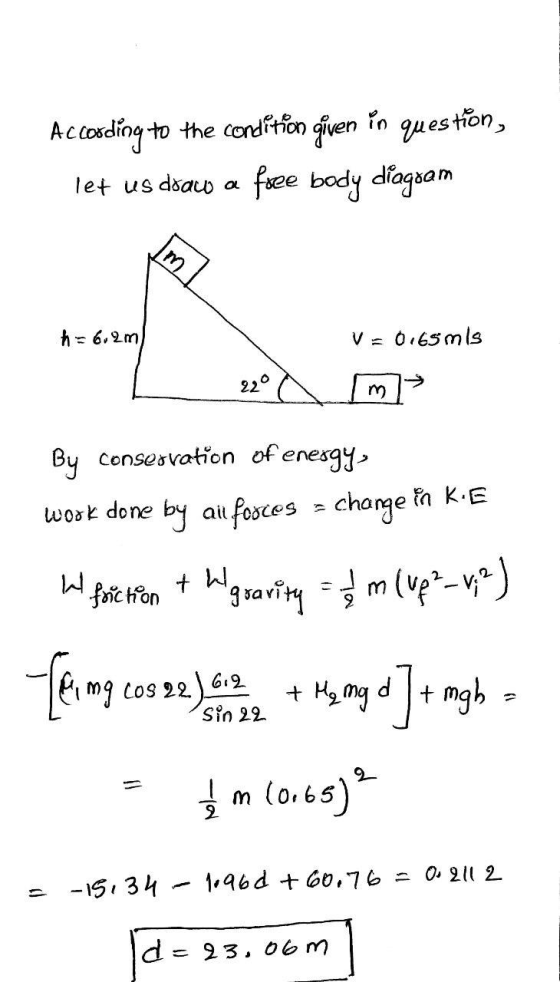

A block of mass m is initially at rest at the top of an inclined plane, which has a height of 6.2 m and makes an angle of θ = 22° with respect to the horizontal. After being released, it is observed to be traveling at v = 0.65 m/s a distance d after the end of the inclined plane as shown. The coefficient of kinetic friction between the block and the plane is μp = 0.1, and the coefficient of friction on the horizontal surface is μr = 0.2.
Find the distance, d, in meters.
Homework Answers
Add Answer to:
A block of mass m is initially at rest at the top of an inclined
plane,...
A block of mass m is initially at rest at the top of an inclined plane, which has a height of 5.6 m and makes an angle of θ = 21° with respect to the horizontal
A block of mass m is initially at rest at the top of an inclined plane, which has a height of 5.6 m and makes an angle of θ = 21° with respect to the horizontal. After being released, it is observed to be traveling at v = 0.55 m/s a distance d after the end of the inclined plane as shown. The coefficient of kinetic friction between the block and the plane is μp = 0.1, and the coefficient...
A cube of mass m is initially at rest at the peak of an inclined plane,...
A cube of mass m is initially at rest at the peak of an inclined plane, which has a height of 6.2 m and has an angle of θ = 16° with respect to the horizontal. After it has been released, it is found to be moving at v = 0.35 m/s a distance d after the end of the inclined plane as shown. The coefficient of kinetic friction between the cube and the plane is μp = 0.1, and...
A brick of mass m is initially at rest at the highest point of an inclined plane, which has a height of 5.1 m and makes an angle of θ = 17° with respect to the horizontal.
Problem 2: A brick of mass m is initially at rest at the highest point of an inclined plane, which has a height of 5.1 m and makes an angle of θ = 17° with respect to the horizontal. After being released, you perceive it to be traveling at v = 0.45 m/s a distance d after the end of the inclined plane as shown. The coefficient of kinetic friction between the brick and the plane is μp =0.1, and...
There is a cube of mass m with a v_0 of 0 at the highest point...
There is a cube of mass m with a v_0 of 0 at the highest point of a plane is inclined. This inclined plane has an angle of θ = 24° with respect to the horizontal and a height of 4.7 m. Once it is released, it is moving with a v=0.55 m/s at a distance d after the end of the inclined plane. The kinetic friction coefficient between the block and plane is μp = 0.1. The coefficient of...
7, A block of mass 4.00 kg is released from rest near the top of an...
7, A block of mass 4.00 kg is released from rest near the top of an inclined plane, where θ 30.00. It slides with friction down the incline and then contacts and compresses an ideal spring that is rigidly mounted parallel to the incline near the bottom. The spring has a force constant of 500.0 N/m and it compresses a maximum distance x. If d = 200 meters and 0.300 meter, what is the coefficient of friction between the block...
an 8kb block starts from rest from the top of a plane, inclined at 40 degrees...
an 8kb block starts from rest from the top of a plane, inclined at 40 degrees with respect to the horizontal, and slides down at a constant acceleration. if the coefficient of kinetic friction between the block and the plane is 0.35, determine how far the block will travel in 3 seconds.
A block is released from rest at the top of an inclined 6.20 m long. The...
A block is released from rest at the top of an inclined 6.20 m
long. The angle of the incline with respect to the horizontal
direction is and the coefficient of kinetic friction between the
block and the surfaces (incline and horizontal) is . The block
slides along the incline with constant velocity and continues
moving along the horizontal surface until it comes to rest. Using
the work-energy theorem, Determine:
a) The speed reached by the block at the bottom...
A block of mass m = 3.5 kg is attached to a spring with spring constant...
A block of mass m = 3.5 kg is attached to a spring with spring constant k = 520 N/m. It is initially at rest on an inclined plane that is at an angle of θ = 21° with respect to the horizontal, and the coefficient of kinetic friction between the block and the plane is μk = 0.16. In the initial position, where the spring is compressed by a distance of d = 0.14 m, the mass is at...
A 1 kg block in the figure above begins at rest at the top of a...
A 1 kg block in the figure above begins at rest at the top of a slope. a. Assuming no friction, derive an expression for the speed of the block at the end of the slope if h = 0.4m and g = 9.8 m/s2. b. If θ = 30◦, calculate the horizontal component of the velocity when the block is at the bottom end of the slope. c. If θ = 30◦, calculate the vertical component of the velocity...
A block of mass m = 3.5 kg is on an inclined plane with a coefficient...
A block of mass m = 3.5 kg is
on an inclined plane with a coefficient of friction
μ1 = 0.31, at an
initial height h = 0.53 m above
the ground. The plane is inclined at an angle θ =
54°. The block is then compressed against
a spring a distance Δx = 0.11 m
from its equilibrium point (the spring has a spring constant of
k1 = 39 N/m) and
released. At the bottom of the inclined plane...
7, A block of mass 4.00 kg is released from rest near the top of an inclined plane, where θ 30.00. It slides with friction down the incline and then contacts and compresses an ideal spring that is rigidly mounted parallel to the incline near the bottom. The spring has a force constant of 500.0 N/m and it compresses a maximum distance x. If d = 200 meters and 0.300 meter, what is the coefficient of friction between the block...
A block is released from rest at the top of an inclined 6.20 m
long. The angle of the incline with respect to the horizontal
direction is and the coefficient of kinetic friction between the
block and the surfaces (incline and horizontal) is . The block
slides along the incline with constant velocity and continues
moving along the horizontal surface until it comes to rest. Using
the work-energy theorem, Determine:
a) The speed reached by the block at the bottom...
A block of mass m = 3.5 kg is
on an inclined plane with a coefficient of friction
μ1 = 0.31, at an
initial height h = 0.53 m above
the ground. The plane is inclined at an angle θ =
54°. The block is then compressed against
a spring a distance Δx = 0.11 m
from its equilibrium point (the spring has a spring constant of
k1 = 39 N/m) and
released. At the bottom of the inclined plane...
