what is the effect of launch angle on the range, height, velocity of the ball and...

what is the effect of launch angle on the range, height, velocity of the ball and also on g. can someone explain this to me?

this is for projectile motion. Mathematical equations showing the effect would be great!
science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

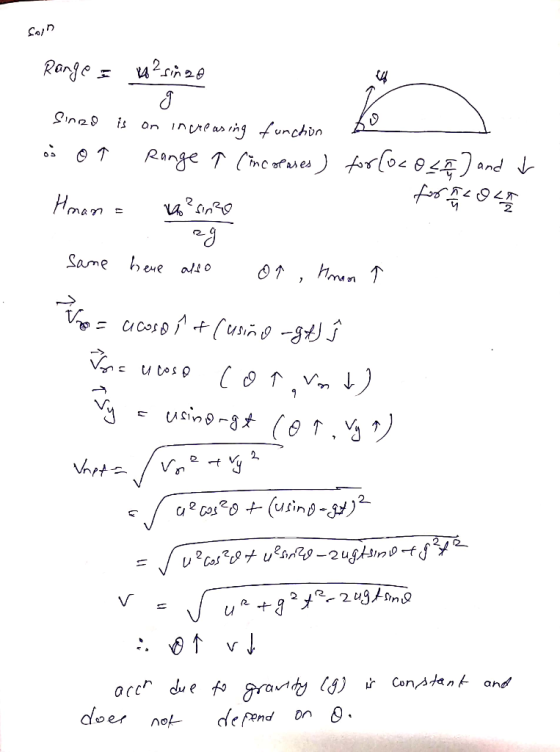

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
what is the effect of launch angle on the range, height, velocity of the ball and...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • Also... If I have a launch height of 3m and a distance of 79.45.. angle is...

    Also... If I have a launch height of 3m and a distance of 79.45.. angle is 30 degrees, and velocity is 30 m/s... What would be the range of that projectile? Answers to both would help tremendously. Predict and Test Vertical Height Calculate the initial speed needed to shoot a target directly above the cannon (90 degrees) at a height of 25.0 m (show work). Use the tape measure to place a target 25.0 m above the cannon and test...

  • Q2. A) Projectile motion (General launch angle): Select any one of the options as answer A...

    Q2. A) Projectile motion (General launch angle): Select any one of the options as answer A football kicker is attempting a field goal from 44 m out. The ball is kicked and just clears the lower bar with a time of flight of 2.9 s. If the angle of the kick was 45°, what was the initial speed(Vo) of the ball, assuming no air resistance? a) 21.5 m/s b) 19.7 m/s c) 2.2 m/s d) 39 m/s (Hint: x-Xo =...

  • How to get this formula about projectile launch angle using maximum height and range? θ =...

    How to get this formula about projectile launch angle using maximum height and range? θ = arctan(4h/R) where h is the max height and R is the range

  • The range equation for a projectile that is launched with a horizontal velocity as shown in...

    The range equation for a projectile that is launched with a horizontal velocity as shown in Fig.2 can be determined from the following equation using the projectile motion kinematics R=V0(√2h/g), where R is the range in [cm] and h is the height in [cm] from which the projectile is released. Show the algebraic steps in deriving the equation using the kinematic equations for projectile motion

  • HotWheels Launch Angle

    HotWheels Launch Angle IntroductionIn this lab you are going to use the HotWheels Launcher and a ramp. The orange Hotwheels car launcher is a variable speed launch system with four settings.  This makes it ideal for experiments to see the effects of velocity on projectile motion.  You are going to launch a car with two different initial velocities at an angle and measure how far it lands. From the input data you can determine the initial velocity. Items needed:             Measuring...

  • A projectile P of mass m is fired from a point 0 with initial speed v0 at launch angle φ0 above a...

    A projectile P of mass m is fired from a point 0 with initial speed v0 at launch angle φ0 above a horizontal firing range. In addition to gravity, P is subject to the aerodynamic drag force by the surrounding air modeled as a quadratic function of speed where v is the velocity of P and k is a positive pa- rameter. 0 0 We are interested in studying the effect of Faero on various aspects of projectile motion. Since...

  • EXPLORE A projectile is launched with a launch angle of 30° with respect to the horizontal...

    EXPLORE A projectile is launched with a launch angle of 30° with respect to the horizontal direction and with an initial speed of 40 m/s. (A) How do the vertical and horizontal components of the projectile's velocity vary with time? (B) How long does it remain in flight? (C) For a given launch speed, what launch angle produces the longest time of flight? CONCEPTUALIZE Consider the projectile to be a point mass that starts with an initial velocity, upward and...

  • Plot the Trajectory of a Projectile (by hand) from launch to maximum height • Launch angle...

    Plot the Trajectory of a Projectile (by hand) from launch to maximum height • Launch angle is 35 degrees • Launch height (y0) = 3 m • Initial velocity (V0) = 25 m/s • Acceleration ... ax = 0 , ay = -9.8 m/s2 Part 2 • Make a data table for x(t) and y(t) and plot the trajectory of the projectile (y vs. x) on graph paper • stop the plot when the maximum height is achieved • use...

  • 27. A ball is kicked with a velocity of 30m/s at an angle of 60 degrees...

    27. A ball is kicked with a velocity of 30m/s at an angle of 60 degrees relative to the horizontal. Assuming no air resistance ) What are the initial Vx and Vy components of the projectile shot? b) What will be the maximum vertical height the ball reaches in meters? c) How long in seconds will it stay in the air (hang time)? d) What will its velocity be at its maximum height? e) Calculate the total horizontal distance( range)...

  • At what minimum velocity would a cannon ball need to be launched from a height of...

    At what minimum velocity would a cannon ball need to be launched from a height of 1.20m to clear a castle wall of height 5.20m at a distance of 100.0m away if the cannon is locked in at a launch angle of 30.0o?
