A capacitor of 1nF is connected in series with a resistor of 100 Mohms. A 5V...
A capacitor of 1nF is connected in series with a resistor of 100 Mohms. A 5V ac is connected to the above combination at time t=0 sec.If we define the voltage across the capacitance as the output voltage:
a. What kind of filter is this? how do you know?
b. What is the cut-off (angular) frequency of this filter?
c. What is the expression for frequency response of this filter?

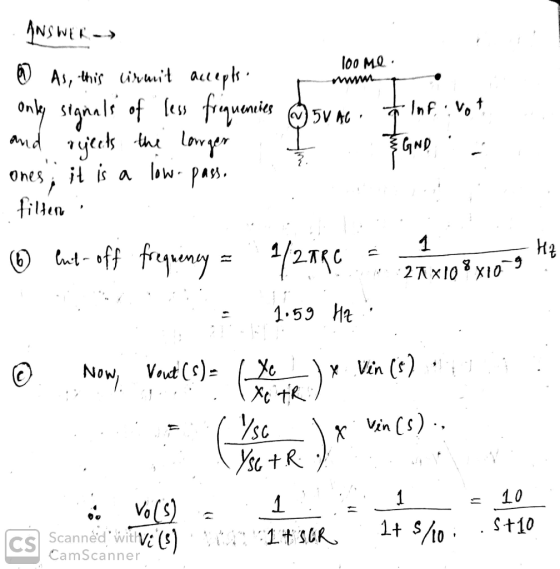

Homework Answers
For any queries, leave a comment. And a thumbs up is always appreciated. Thanks.
