A system has a characteristic equation: q(s) = s3 + 20s2 + 5s + 100 =...

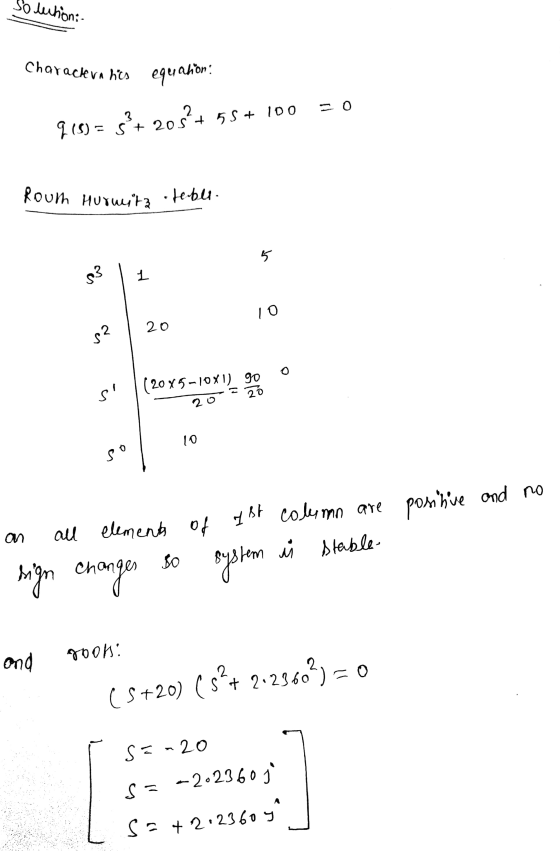

A system has a characteristic equation: q(s) = s3 + 20s2 + 5s + 100 = 0 i. Determine whether the system is stable using the Routh-Hurwitz criterion. ii. Determine the roots of the characteristic equation.
Homework Answers
Add Answer to:
A system has a characteristic equation: q(s) = s3 + 20s2 + 5s +
100 =...
2. (8 pts) A system has a characteristic equation s3 Ks2 ( K)s6 0. Using the...
2. (8 pts) A system has a characteristic equation s3 Ks2 ( K)s6 0. Using the Routh- Hurwitz criterion, determine the range of K for a stable system.
A system has the characteristic equation: q(s) = s3 + 10s2 + 29s + K =...
A system has the characteristic equation: q(s) = s3 + 10s2 + 29s + K = 0 i. Shift the vertical axis to the right by 2 by using s = sn – 2, and determine the value of gain K so that the complex roots are s = -2 ± j.
control systems 1) Using Routh Hurwitz Stability Criteria, determine whether the following system of equation is...
control systems
1) Using Routh Hurwitz Stability Criteria, determine whether the following system of equation is stable or not. a) S4+253+3S2+45+5=0 2) Using the Routh Hurwitz stability criterion, determine the range of K for stability of the following characteristic equation. a) s4+2s8+(4+K)s2+9s+25=0 3)Sketch the root-locus of the following systems a) G(s)H(s) = s(s+1)(s+2) b) G(s)H(s) = 52(8+3.6) K(5+1)
Construct Routh array and determine the stability of the system whose characteristic equation is s6 +2s5...
Construct Routh array and determine the stability of the system whose characteristic equation is s6 +2s5 8s12s3 +20s2 +16s16 0. Also, determine the number of roots lying on right half of s-plane, left half of s-plane and on imaginary axis. 11) com
2. (30)Use Routh-Hurwitz criterion to determine the stability fo characteristic equations. a) (15...
2. (30)Use Routh-Hurwitz criterion to determine the stability fo characteristic equations. a) (15) 2s6+4s5+2s4-s42s-2-0 b) (15) s3+2s2+s+2-0
2. (30)Use Routh-Hurwitz criterion to determine the stability fo characteristic equations. a) (15) 2s6+4s5+2s4-s42s-2-0 b) (15) s3+2s2+s+2-0
Q2 (a) List down THREE (3) important requirements to design a control system. (3 marks) State...
Q2 (a) List down THREE (3) important requirements to design a control system. (3 marks) State the possible consequence when a physical system becomes unstable. (2 marks) (6) (c) Consider the following characteristic Equation shown below: P(s) = 55 +683 + 582 +8s + 20 (1) Construct Routh table for the characteristic Equation. (6 marks) (ii) Using the Routh – Hurwitz criterion, determine the stability of the system. (2 marks) (ii) Determine the numbers of roots on the right half-plane,...
2. Applying the Routh-Hurwitz criterion can obtain the number of the roots of f (s) 0...
2. Applying the Routh-Hurwitz criterion can obtain the number of the roots of f (s) 0 with a positive real part. The Routh-Hurwitz criterion can also be applied to find that how many roots have a real part greater than -a. This principle is exercised in this problem Given a characteristic equation: f(s) 3 4s2 3s10 0 Eq(1) By substituting sı = s + α (i.e., s = sı-α) into Eq (1) and apply the Routh-Hurwitz criterion on f(s) 0,...
this question was in Turkish and I translate it to english using google (10 puan). Test...
this question was in Turkish
and I translate it to english using google

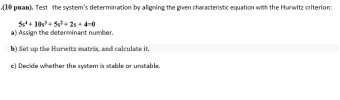

(10 puan). Test the system's determination by aligning the given characteristic equation with the Hurwitz criterion: 5s+ + 10 + 552 + 2s + 4=0 a) Assign the determinant number. b) Set up the Hurwitz matrix, and calculate it. c) Decide whether the system is stable or unstable.
2. (30)Use Routh-Hurwitz criterion to determine the stability fo characteristic equations. a) (15) 2s6+4s5+2s4-s42s-2-0 b) (15)...
2. (30)Use Routh-Hurwitz criterion to determine the stability fo characteristic equations. a) (15) 2s6+4s5+2s4-s42s-2-0 b) (15) s3+2s2+s+2-0
1. Use the Routh-Hurwitz test to determine if the system described by the following transfer function...
1. Use the Routh-Hurwitz test to determine if the system described by the following transfer function is stable. If the system is unstable, how many poles are outside the LHP? Use Matlab to check your answers. C() 10-8) R(s) s2 +7s +28 2. Repeat problem 1) above for the system with transfer function C (s) R(5s +Bs+ 40 s2 +2s+4 3. Use the Routh-Hurwitz test to determine if the system described by the following characteristic equation is stable. If the...
2. (8 pts) A system has a characteristic equation s3 Ks2 ( K)s6 0. Using the Routh- Hurwitz criterion, determine the range of K for a stable system.
control systems
1) Using Routh Hurwitz Stability Criteria, determine whether the following system of equation is stable or not. a) S4+253+3S2+45+5=0 2) Using the Routh Hurwitz stability criterion, determine the range of K for stability of the following characteristic equation. a) s4+2s8+(4+K)s2+9s+25=0 3)Sketch the root-locus of the following systems a) G(s)H(s) = s(s+1)(s+2) b) G(s)H(s) = 52(8+3.6) K(5+1)
Construct Routh array and determine the stability of the system whose characteristic equation is s6 +2s5 8s12s3 +20s2 +16s16 0. Also, determine the number of roots lying on right half of s-plane, left half of s-plane and on imaginary axis. 11) com
2. (30)Use Routh-Hurwitz criterion to determine the stability fo characteristic equations. a) (15) 2s6+4s5+2s4-s42s-2-0 b) (15) s3+2s2+s+2-0
2. (30)Use Routh-Hurwitz criterion to determine the stability fo characteristic equations. a) (15) 2s6+4s5+2s4-s42s-2-0 b) (15) s3+2s2+s+2-0
Q2 (a) List down THREE (3) important requirements to design a control system. (3 marks) State the possible consequence when a physical system becomes unstable. (2 marks) (6) (c) Consider the following characteristic Equation shown below: P(s) = 55 +683 + 582 +8s + 20 (1) Construct Routh table for the characteristic Equation. (6 marks) (ii) Using the Routh – Hurwitz criterion, determine the stability of the system. (2 marks) (ii) Determine the numbers of roots on the right half-plane,...
2. Applying the Routh-Hurwitz criterion can obtain the number of the roots of f (s) 0 with a positive real part. The Routh-Hurwitz criterion can also be applied to find that how many roots have a real part greater than -a. This principle is exercised in this problem Given a characteristic equation: f(s) 3 4s2 3s10 0 Eq(1) By substituting sı = s + α (i.e., s = sı-α) into Eq (1) and apply the Routh-Hurwitz criterion on f(s) 0,...
this question was in Turkish
and I translate it to english using google
(10 puan). Test the system's determination by aligning the given characteristic equation with the Hurwitz criterion: 5s+ + 10 + 552 + 2s + 4=0 a) Assign the determinant number. b) Set up the Hurwitz matrix, and calculate it. c) Decide whether the system is stable or unstable.
2. (30)Use Routh-Hurwitz criterion to determine the stability fo characteristic equations. a) (15) 2s6+4s5+2s4-s42s-2-0 b) (15) s3+2s2+s+2-0
1. Use the Routh-Hurwitz test to determine if the system described by the following transfer function is stable. If the system is unstable, how many poles are outside the LHP? Use Matlab to check your answers. C() 10-8) R(s) s2 +7s +28 2. Repeat problem 1) above for the system with transfer function C (s) R(5s +Bs+ 40 s2 +2s+4 3. Use the Routh-Hurwitz test to determine if the system described by the following characteristic equation is stable. If the...
