A pond with a flat bottom has a surface area of 946 m2 and a depth...

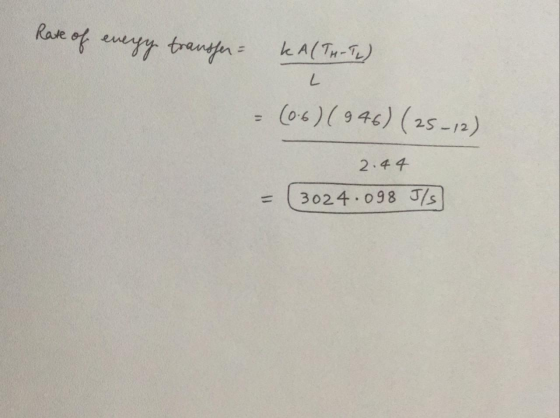

A pond with a flat bottom has a surface area of 946 m2 and a depth of 2.44 m. On a warm day, the surface water is at a temperature of 25°C, while the bottom of the pond is at 12°C. Find the rate at which energy is transferred by conduction from the surface to the bottom of the pond.
The thermal conductivity of water is 0.6 J/s*m*˚C
Homework Answers
Add Answer to:
A pond with a flat bottom has a surface area of 946
m2 and a depth...
The interior of a refrigerator has a surface area of 4.7 m2 . It is insulated...
The interior of a refrigerator has a surface area of 4.7 m2 . It is insulated by a 2.9 cm thick material that has a thermal conductivity of 0.024 J/m · s · ◦ C. The ratio of the heat extracted from the interior to the work done by the motor is 6.7% of the theoretical maximum. The temperature of the room is 20.1 ◦C, and the temperature inside the refrigerator is 9.1 ◦C. Determine the power required to run...
Problem #11 (10 mins) A concrete slab is 13.5 cm thick and has an area of...
Problem #11 (10 mins) A concrete slab is 13.5 cm thick and has an area of 5.00 m2. Electric heating coils are installed under the slab to melt the ice on the surface in the winter months. What minimum power must be supplied to the coils to maintain a temperature difference of 22.5°C between the bottom of the slab and its surface? Assume all the energy transferred is through the slab, and the thermal conductivity of the concrete is 1.3...
Consider the rate of heat conduction through a double-paned window that has a 1.45-m2 area and...
Consider
the rate of heat conduction through a double-paned window that has
a 1.45-m2 area and is made of two panes of
0.715-cm-thick glass separated by a 1.25-cm air gap. You can ignore
the increased heat transfer in the air gap due to convection.
Calculate the rate of heat conduction through this window, in
watts, given that the inside surface temperature is 15.0°C, while
the outside temperature is -10.0°C. Make the assumption that the
temperature differences across the two glass...
A rectangular glass window pane on a house has a width of 1.1 m, a height...
A rectangular glass window pane on a house has a width of 1.1 m, a height of 2.2 m, and a thickness of 0.65 cm. Find the energy transferred through the window by conduction in 12 hours on a day when the inside temperature of the house is 22°C and the outside temperature is 2.0°C. Take surface air layers into consideration. (Use 0.8 J/s · m · °C for the thermal conductivity of glass and 0.17 ft2 · °F ·...
A particular insulating container has a total surface area of 1.50 m2 and walls that are...
A particular insulating container has a total surface area of 1.50 m2 and walls that are 4.00 cm thick. Suppose that a 10.0 W electric heater keeps the inside of the container 10.0°C warmer than the temperature outside. What is the thermal conductivity k of the material that the container is made of? (Enter your answer in W/(m · °C).)
A concrete wall of a house is 45 cm thick and has a surface area 20m...
A concrete wall of a house is 45 cm thick and has a surface area 20m x 5 m. The inside temperature of the wall is 47 °C and the outside air temperature is 14 °C. Thermal conductivity of the concrete wall is 0.8 W/mK. Calculate the heat transfer rate through the wall by conduction and its thermal resistance.
10. (10pts) The surface area of an adult human being is 1,8 m2. Suppose a person with a skin tem ...
10. (10pts) The surface area of an adult human being is 1,8 m2. Suppose a person with a skin tem omperature of 34°C is standing with bare skin in a room where the air is 22°C but the walls are 21°C. (ơ 5.67" 104 J / (sm"к"). There is a "dead ai lay ran around you next to your skin that acts as insulation. This dead-air layer is 5.0 mm thick. a) Draw b) What is the person's rate of...
Thermal Storage Solar heating of a house is much more efficient if there is a way...
Thermal Storage Solar heating of a house is much more efficient if there is a way to store the thermal energy collected during the day to warm the house at night. Suppose one solar-heated home utilizes a concrete slab of area 11 m2 and 26 cm thick. If the density of concrete is 2400 kg/m3, what is the mass of the slab? The slab is exposed to sunlight and absorbs energy at a rate of 1.2 ×107J/h for 10 h....
A submarine with a total outer area of 2,100 m2 is at a depth of 64.0...
A submarine with a total outer area of 2,100 m2 is at a depth of 64.0 m below ocean surface. The weight density of ocean water is 10,100 N/m3. The pressure due to water at that depth is a. 610 kPa b. 566 kPa c. 10,100 Pa d. 646 kPa e. 86.0 kPa A submarine with a total outer area of 2,100 m2 is at a depth of 64.0 m below ocean surface. The weight density of ocean water is...
PLEASE ANSWER a,b,c Heat Conduction Heat conduction occurs through any material, represented here by a rectangular...
PLEASE ANSWER a,b,c
Heat Conduction Heat conduction occurs through any material, represented here by a rectangular bar, whether window glass or walrus blubber. The temperature of the material is T2 on the left and T1 on the right, where T2 is greater than T1. The rate of heat transfer by conduction is directly proportional to the surface area A, the temperature difference T2 - T1, and the substance's conductivity k. The rate of heat transfer is inversely proportional to the...
Problem #11 (10 mins) A concrete slab is 13.5 cm thick and has an area of 5.00 m2. Electric heating coils are installed under the slab to melt the ice on the surface in the winter months. What minimum power must be supplied to the coils to maintain a temperature difference of 22.5°C between the bottom of the slab and its surface? Assume all the energy transferred is through the slab, and the thermal conductivity of the concrete is 1.3...
Consider
the rate of heat conduction through a double-paned window that has
a 1.45-m2 area and is made of two panes of
0.715-cm-thick glass separated by a 1.25-cm air gap. You can ignore
the increased heat transfer in the air gap due to convection.
Calculate the rate of heat conduction through this window, in
watts, given that the inside surface temperature is 15.0°C, while
the outside temperature is -10.0°C. Make the assumption that the
temperature differences across the two glass...
A concrete wall of a house is 45 cm thick and has a surface area 20m x 5 m. The inside temperature of the wall is 47 °C and the outside air temperature is 14 °C. Thermal conductivity of the concrete wall is 0.8 W/mK. Calculate the heat transfer rate through the wall by conduction and its thermal resistance.
10. (10pts) The surface area of an adult human being is 1,8 m2. Suppose a person with a skin tem omperature of 34°C is standing with bare skin in a room where the air is 22°C but the walls are 21°C. (ơ 5.67" 104 J / (sm"к"). There is a "dead ai lay ran around you next to your skin that acts as insulation. This dead-air layer is 5.0 mm thick. a) Draw b) What is the person's rate of...
PLEASE ANSWER a,b,c
Heat Conduction Heat conduction occurs through any material, represented here by a rectangular bar, whether window glass or walrus blubber. The temperature of the material is T2 on the left and T1 on the right, where T2 is greater than T1. The rate of heat transfer by conduction is directly proportional to the surface area A, the temperature difference T2 - T1, and the substance's conductivity k. The rate of heat transfer is inversely proportional to the...
