A generator rotates at 85 Hz in a magnetic field of 0.050 T . It has...
A generator rotates at 85 Hz in a magnetic field of 0.050 T . It has 650 turns and produces an rms voltage of 110 V and an rms current of 55.0 A .
1. What is the peak current produced?
2. What is the area of each turn of the coil?
Homework Answers

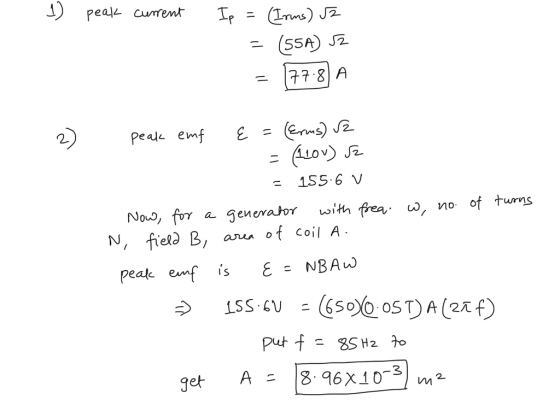

Use the RMS value of current to find the peak value of current.
Use the equation for peak EMF for a generator to find the area of
the coil as shown below
