1. Using four mos transistors, construct a nor gate. Hint: Connect two PMOS in series(i.e end...

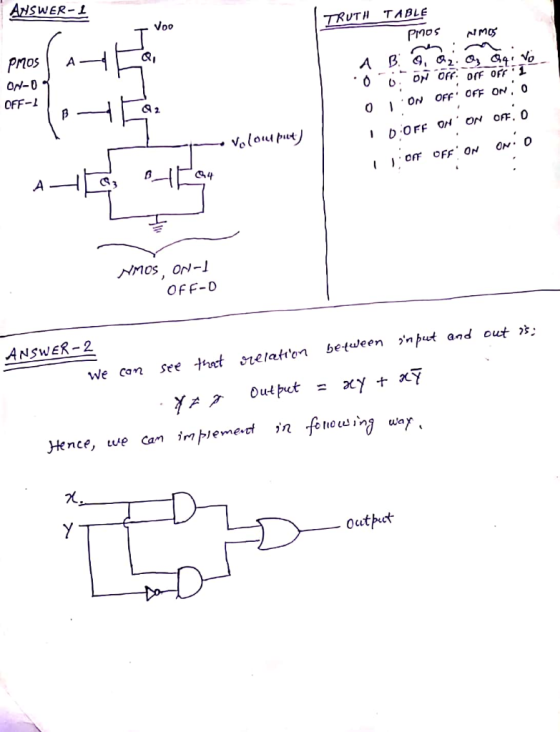

1. Using four mos transistors, construct a nor gate. Hint: Connect two PMOS in series(i.e end to end) and two NMOS in parallel.
2. Using two AND gates, one or gate, and one not gate implement the following.
x y output
0 0 0
0 1 0
1 0 1
1 1 1
Homework Answers
