Draw two time sequence diagrams: 1. Submit a diagram showing stop-and-wait ARQ where frames 0, 1,...

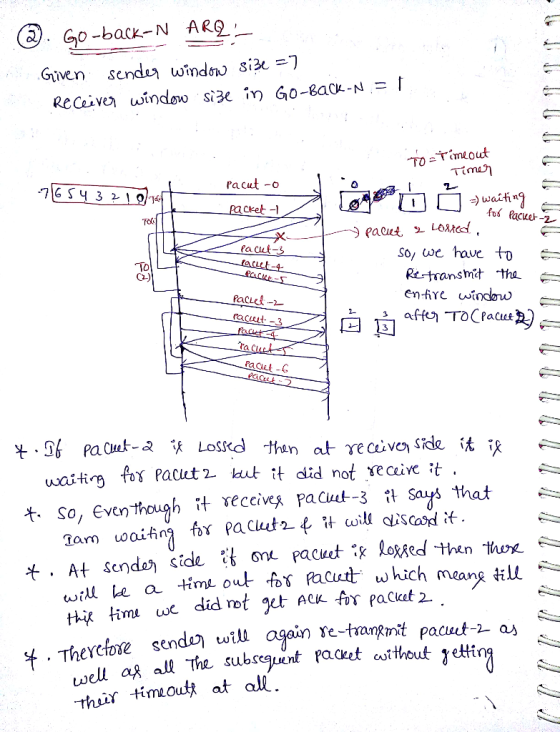

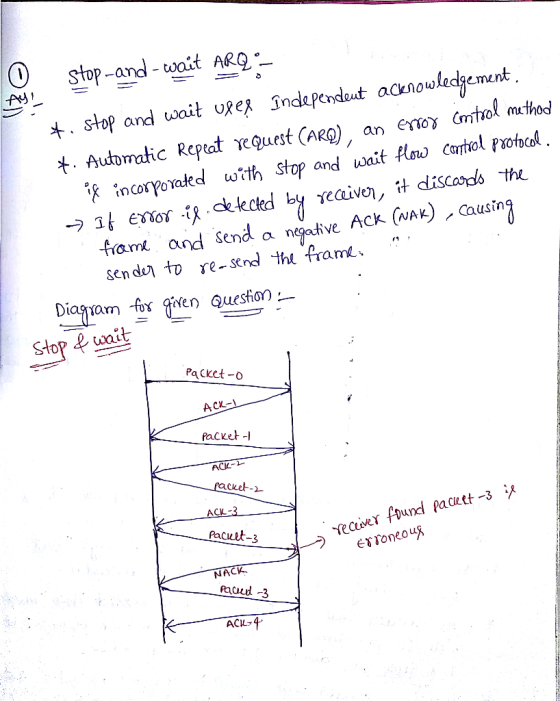

Draw two time sequence diagrams: 1. Submit a diagram showing stop-and-wait ARQ where frames 0, 1, and 2 are transmitted successfully and frame 3 is in error and a successful retransmit of frame 3 occurs. 2. Submit a diagram showing Go-back-N ARQ with a window size of seven where frames 0, 1, 2, and 3 are sent. Frames 0, 1, and 3 are received error-free. Frame 2 is damaged in transit and is dropped in the network is not received. Show everything needed for the successful transmission of these four frames.
Homework Answers
Add Answer to:
Draw two time sequence diagrams: 1. Submit a diagram showing
stop-and-wait ARQ where frames 0, 1,...
