Initially 38 kg of Methane is contained in a 200 liter rigid tank at -50 o...

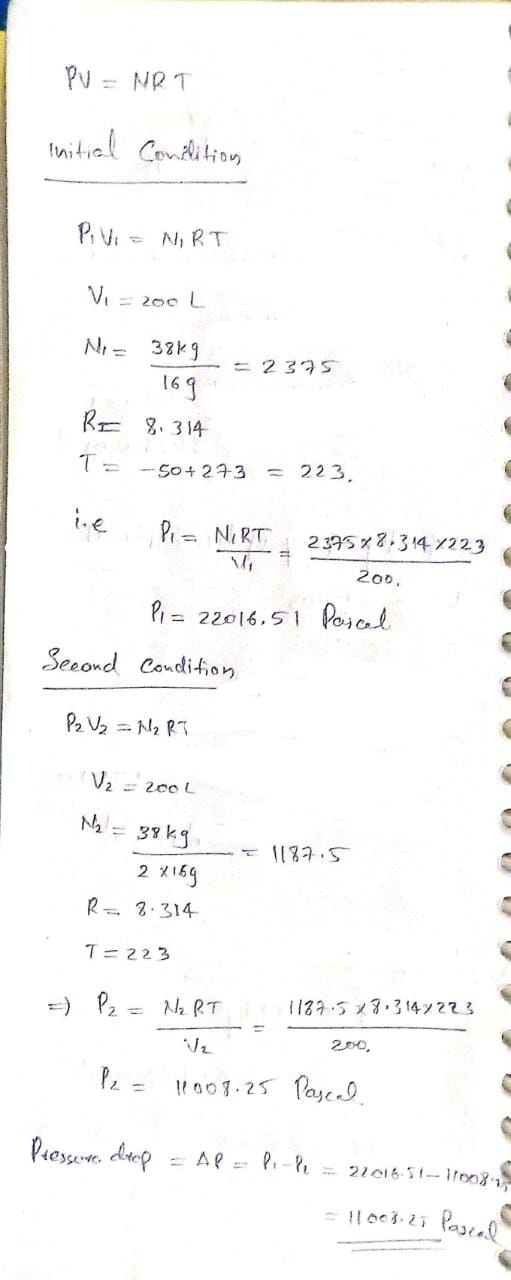

Initially 38 kg of Methane is contained in a 200 liter rigid tank at -50 o C. The Methane start to leak slowly in an isothermal process until half of the initial mass has escaped. What is the amount of pressure drop during the process?
Homework Answers
Add Answer to:
Initially 38 kg of Methane is contained in a 200 liter rigid
tank at -50 o...
Initially 38 kg of Methane is contained in a 200 liter rigid tank at -50 oC....
Initially 38 kg of Methane is contained in a 200 liter rigid tank at -50 oC. The Methane start to leak slowly in an isothermal process until half of the initial mass has escaped. What is the amount of pressure drop during the process? *Note*: only assume ideal gas if it specifically says to do so, otherwise use compressibility chart.
Air is contained in a 100 liter rigid tank and is initially at 40 oC and...
Air is contained in a 100 liter rigid tank and is initially at 40 oC and 900 kPa. The air is cooled until the pressure drops to 400 kPa. Find the final temperature and the amount of heat transfer during the process. Consider air as ideal gas with constant specific heat.
1.Argon contained in a closed, rigid tank, initially at 62.3°C, 3.9 bar, and a volume of...
1.Argon contained in a closed, rigid tank, initially at 62.3°C, 3.9 bar, and a volume of 4.2 m3, is heated to a final pressure of 9.4 bar. Assuming the ideal gas model with k = 1.6 for the argon, determine the heat transfer, in kJ. 2.Water vapor contained in a piston–cylinder assembly undergoes an isothermal expansion at 223°C from a pressure of 5.4 bar to a pressure of 1.9 bar. Evaluate the work, in kJ/kg. 3.A mass of 4 kilograms...
1. A) Argon contained in a closed, rigid tank, initially at 36.3°C, 2.8 bar, and a...
1. A) Argon contained in a closed, rigid tank, initially at 36.3°C, 2.8 bar, and a volume of 1.4 m3, is heated to a final pressure of 9.9 bar. Assuming the ideal gas model with k = 1.53 for the argon, determine the heat transfer, in kJ. B) Nitrogen (N2) contained in a piston–cylinder arrangement, initially at 6 bar and 435 K, undergoes an expansion to a final temperature of 300 K, during which the pressure–volume relationship is pV1.5 =...
An insulated 1.7 m3 rigid tank contains air at 500 kPa and 50oC. A valve connected...
An insulated 1.7 m3 rigid tank contains air at 500 kPa and 50oC. A valve connected to the tank is now opened and air is allowed to escape until the pressure inside drops to 200 kPa. The air temperature during this process is maintained constant by an electric resistance heater placed in the tank. a. Determine the mass of air initially, m1 in kg. b. How much air escaped from the tank, mout in kg. c. Determine the electrical work...
1. A) Argon contained in a closed, rigid tank, initially at 32.7°C, 1.5 bar, and a...
1. A) Argon contained in a closed, rigid tank, initially at 32.7°C, 1.5 bar, and a volume of 0.9 m3, is heated to a final pressure of 9.2 bar. Assuming the ideal gas model with k = 1.53 for the argon, determine the heat transfer, in kJ. B) Nitrogen (N2) contained in a piston–cylinder arrangement, initially at 8.6 bar and 422 K, undergoes an expansion to a final temperature of 300 K, during which the pressure–volume relationship is pV1.4 =...
5. A rigid tank initially contains 10 kg O2 at 200 kPa and 600 K. Now...
5. A rigid tank initially contains 10 kg O2 at 200 kPa and 600
K. Now O2 is gradually cooled under constant volume until its
temperature reaches 455 K. (18 Points) (a) Calculate the pressure
of O2 at final state. (4 points) (b) Determine the boundary work.
(6 points) (b) Calculate the heat transfer during this process. (8
Points)
let me know if u want the property table
MAE 320 - Thermodynamics + > e ecampus.wvu.edu/bbcswebdav/pid-6846897-dt-content-rid-82617141 1/courses/star50314.202005/MAE320-2020-Summer-HW04.pdf Q4 to Q6...
Water contained in a closed, rigid tank, initially saturated vapor at 200°C, is cooled to 101.3°C....
Water contained in a closed, rigid tank, initially saturated vapor at 200°C, is cooled to 101.3°C. Determine the final pressure, in bar.
4 (30 points). A rigid tank that is initially evacuated is connected through a valve toa...
4 (30 points). A rigid tank that is initially evacuated is connected through a valve toa supply line that carries helium at 1 MPa and 300 K. Now the valve is opened, and helium is allowed to flow slowly intothe tank until the pressure reaches IMPa P2). The final temperature and mass of the helium gas in the tank are: T2 300 K and m2 1 kg. Determine the direction (Is heat transferred to or from the tank?) and amount...
A rigid tank with a total volume of 0.8m3 initially contains water in the form of...
A rigid tank with a total volume of 0.8m3 initially contains
water in the form of a saturated liquid-vapour mixture at
P1=500kPa. The liquid portion of the mixture initially occupies a
volume of only 0.5L (the remainder is vapour). Steam from a supply
line at Pi=1000kPa and Ti=500°C is then injected into the tank
until the pressure in the tank reaches P2=800kPa. At this point
(final state), the mass in the tank is m2=2.8kg.
a) Find the initial quality x1...
5. A rigid tank initially contains 10 kg O2 at 200 kPa and 600
K. Now O2 is gradually cooled under constant volume until its
temperature reaches 455 K. (18 Points) (a) Calculate the pressure
of O2 at final state. (4 points) (b) Determine the boundary work.
(6 points) (b) Calculate the heat transfer during this process. (8
Points)
let me know if u want the property table
MAE 320 - Thermodynamics + > e ecampus.wvu.edu/bbcswebdav/pid-6846897-dt-content-rid-82617141 1/courses/star50314.202005/MAE320-2020-Summer-HW04.pdf Q4 to Q6...
4 (30 points). A rigid tank that is initially evacuated is connected through a valve toa supply line that carries helium at 1 MPa and 300 K. Now the valve is opened, and helium is allowed to flow slowly intothe tank until the pressure reaches IMPa P2). The final temperature and mass of the helium gas in the tank are: T2 300 K and m2 1 kg. Determine the direction (Is heat transferred to or from the tank?) and amount...
A rigid tank with a total volume of 0.8m3 initially contains
water in the form of a saturated liquid-vapour mixture at
P1=500kPa. The liquid portion of the mixture initially occupies a
volume of only 0.5L (the remainder is vapour). Steam from a supply
line at Pi=1000kPa and Ti=500°C is then injected into the tank
until the pressure in the tank reaches P2=800kPa. At this point
(final state), the mass in the tank is m2=2.8kg.
a) Find the initial quality x1...
