Water contained in a closed, rigid tank, initially saturated vapor at 200°C, is cooled to 101.3°C....

Question

Question

Water contained in a closed, rigid tank, initially saturated vapor at 200°C, is cooled to 101.3°C....

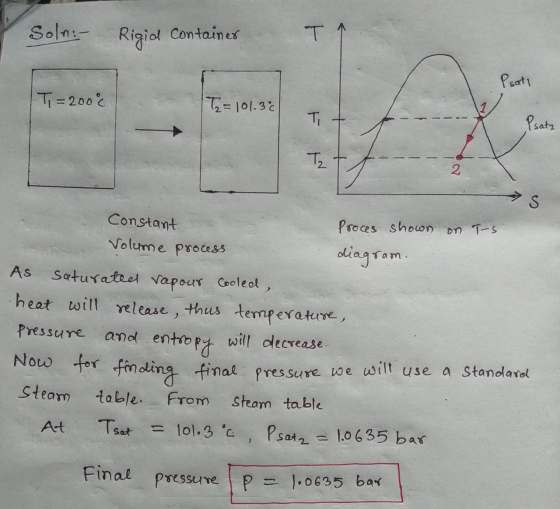

Water contained in a closed, rigid tank, initially saturated vapor at 200°C, is cooled to 101.3°C. Determine the final pressure, in bar.

engineering Mechanical-Engineering

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

Add a comment

Answer 2
