Water vapor is cooled in a closed, rigid tank from T1=660 degree Celsius and p1= 100...

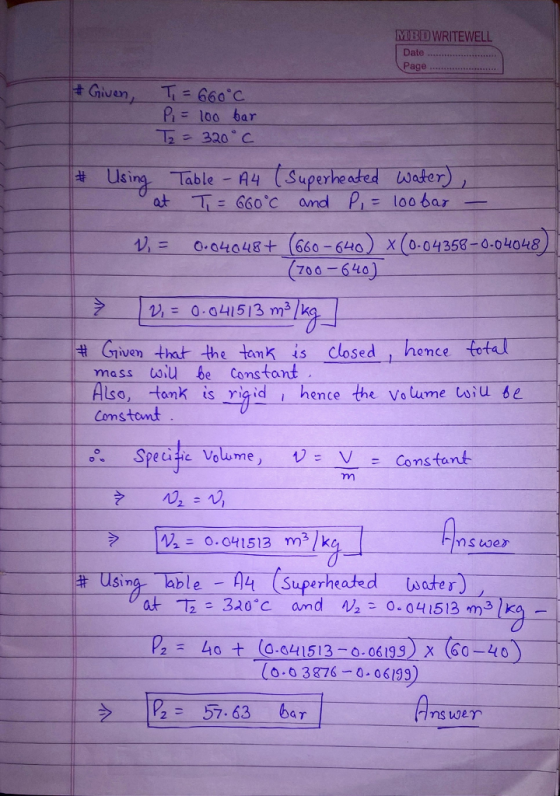

Water vapor is cooled in a closed, rigid tank from T1=660 degree Celsius and p1= 100 bar to a final temperature of T2=320 degree Celsius. Determine the final specific volume, v2 in m^3/kg, "AND THE FINAL PRESSURE, P2, IN bar".
Homework Answers
Add Answer to:
Water vapor is cooled in a closed, rigid tank from T1=660 degree
Celsius and p1= 100...
Water contained in a closed, rigid tank, initially saturated vapor at 200°C, is cooled to 101.3°C....
Water contained in a closed, rigid tank, initially saturated vapor at 200°C, is cooled to 101.3°C. Determine the final pressure, in bar.
2.Water, initially saturated vapor at 14.6 bar, fills a closed, rigid container. The water is heated...
2.Water, initially saturated vapor at 14.6 bar, fills a closed, rigid container. The water is heated until its temperature is 200°C. For the water, determine the heat transfer, in kJ/kg. Kinetic and potential energy effects can be ignored. 3.A piston-cylinder assembly contains 4 kg of water at 211.4oC and 3 bar. The water is compressed to a saturated vapor state where the pressure is 50.8 bar. During compression, there is a heat transfer of energy from the water to its...
A sealed rigid tank contains 5.0 kg of water (liquid plus vapor) at 100 oC with...
A sealed rigid tank contains 5.0 kg of water (liquid plus vapor) at 100 oC with a quality of 30.375%. Using the Thermodynamic Tables that accompany the textbook and the relationship between quality and other thermodynamic properties: Calculate the specific volume of the water. Determine the mass of water in the vapor phase. Determine the saturation pressure and temperature of this water if it had the specific volume calculated in part (a) and a quality of 100%. Determine the amount...
Problem 3.017 SI Ammonia contained in a closed, rigid tank is heated from an initial saturated...
Problem 3.017 SI Ammonia contained in a closed, rigid tank is heated from an initial saturated vapor state at temperature Ti-20°C to the final temperature, T2 = 60°C. Determine the final pressure, in bar. bar the tolerance is +/-2%
A rigid tank contains water mix that is at 70oC , 90% liquid and 10% vapor...
A rigid tank contains water mix that is at 70oC , 90% liquid and 10% vapor (by mass). The water is subjected to a process that makes the final pressure 0.6 MPa. What is the initial pressure and final temperature? P1=31.2 kPa, T2=384oC
Argon in a closed, rigid tank. Temperature and heat transfer RTF
Argon contained in a closed, rigid tank, initially at a temperature of 50C, pressure of 2 bar, and a volume of 2m^3, is heated to a final pressure of 8 bar. Assumingideal gas model with k=1.67 for the Argon, determine the final temperature in degrees celsius and heat transfer, in kJ.
1.Argon contained in a closed, rigid tank, initially at 62.3°C, 3.9 bar, and a volume of...
1.Argon contained in a closed, rigid tank, initially at 62.3°C, 3.9 bar, and a volume of 4.2 m3, is heated to a final pressure of 9.4 bar. Assuming the ideal gas model with k = 1.6 for the argon, determine the heat transfer, in kJ. 2.Water vapor contained in a piston–cylinder assembly undergoes an isothermal expansion at 223°C from a pressure of 5.4 bar to a pressure of 1.9 bar. Evaluate the work, in kJ/kg. 3.A mass of 4 kilograms...
Water, initially saturated vapor at 11.5 bar, fills a closed, rigid container. The water is heated...
Water, initially saturated vapor at 11.5 bar, fills a closed, rigid container. The water is heated until its temperature is 200°C. For the water, determine the pressure at the final state, in bar.
Water, initially saturated vapor at 14.1 bar, fills a closed, rigid container. The water is heated...
Water, initially saturated vapor at 14.1 bar, fills a closed, rigid container. The water is heated until its temperature is 200°C. For the water, determine the pressure at the final state, in bar.
A closed, rigid tank contains R-134a, initially at 100°C. The refrigerant is cooled until it has...
A closed, rigid tank contains R-134a, initially at 100°C. The refrigerant is cooled until it has a quality of 98.26% at 20°C. For the refrigerant, determine: a. (3) A T-v diagram labeling state 1 and 2 b. (12) The initial and final pressures, in bar c. (10) The heat transfer and work for the process, each in kJ/kg
Problem 3.017 SI Ammonia contained in a closed, rigid tank is heated from an initial saturated vapor state at temperature Ti-20°C to the final temperature, T2 = 60°C. Determine the final pressure, in bar. bar the tolerance is +/-2%
