Question

Create a flowchart and a program; test the program. Program Requirements. There are 10 members of the team. The program asks each member to enter their tennis rank. It only accepts an integer between 1 and 5 inclusive.. If the number entered is not valid, the program keeps prompting until a valid number is entered. The program calculates and prints the average rank. Submit a photo of your flowchart and a screen shot of your program.

Test the Program: Check the logic of your code by seeing what happens when you enter an invalid rank and when you enter a valid rank. Submit a screen shot of the test results.

Answer 1

Question :

Create a flowchart and a program; test the program. Program Requirements. There are 10 members of the team. The program asks each member to enter their tennis rank. It only accepts an integer between 1 and 5 inclusive.. If the number entered is not valid, the program keeps prompting until a valid number is entered. The program calculates and prints the average rank. Submit a photo of your flowchart and a screen shot of your program.Test the Program: Check the logic of your code by seeing what happens when you enter an invalid rank and when you enter a valid rank. Submit a screen shot of the test results.

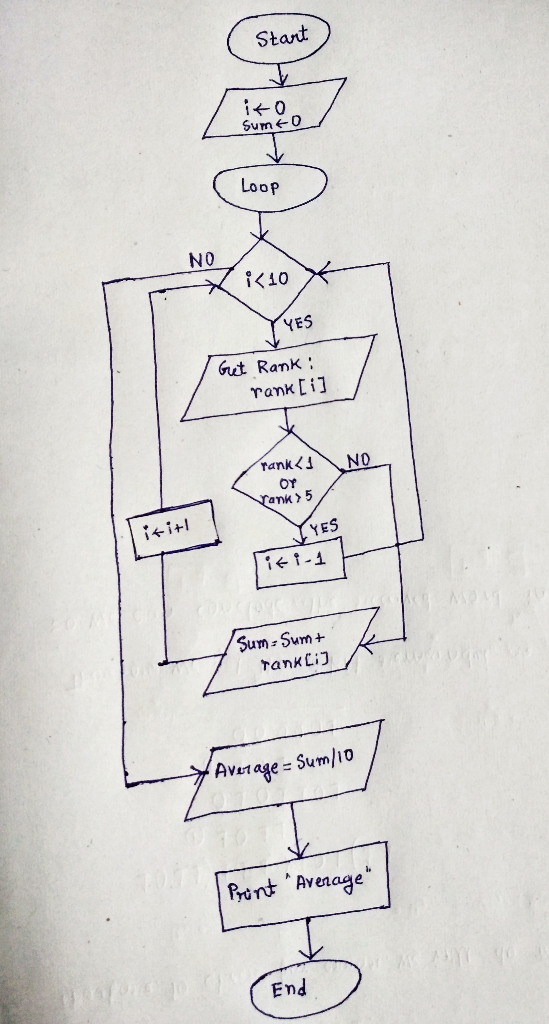

Flowchart :

Program :

#include<iostream>
using namespace std;
int main()
{
   int rank[10];
   int avgrank,sum=0;
   for(int i=0;i<10;i++)       //For 10 members
   {
       cout<<"\nPlayer - "<<i+1<<" ,Enter Your Tennis Rank : ";
       cin>>rank[i];
       if(rank[i] < 1 || rank[i] > 5)       //To check if rank=(1 to 5) . If not enter again
       {
           cout<<"\nRank Inclusive (1-5)\n";
           cout<<"\nEnter Again\n";
           i=i-1;       //Decrement 1 to input rank of same tennis player
           continue;
       }
       sum+=rank[i];
   }
   avgrank=sum/10; //Taken as Integer as Rank can't be in floating point number
   cout<<"\nAverage Rank : "<<avgrank<<endl;
}

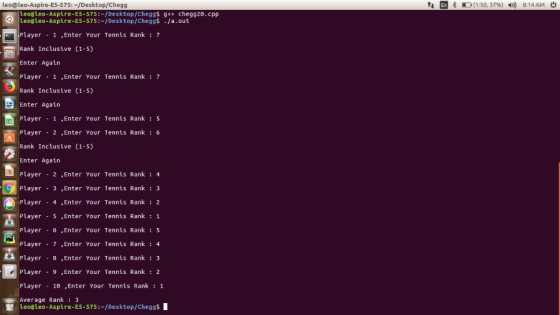

Output :
