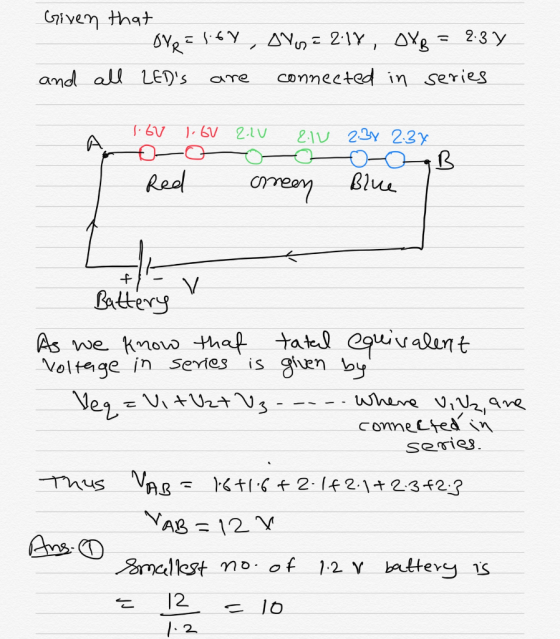

A toy has two red LEDs (ΔVOpenR = 1.6 V), two green LEDs (ΔVOpenG = 2.1 V),and two blue LEDs (ΔVOpenB = 2.3 V) connected in series.
1)What is the smallest number of 1.2-V rechargeable batteries needed to make all the LEDs glow?

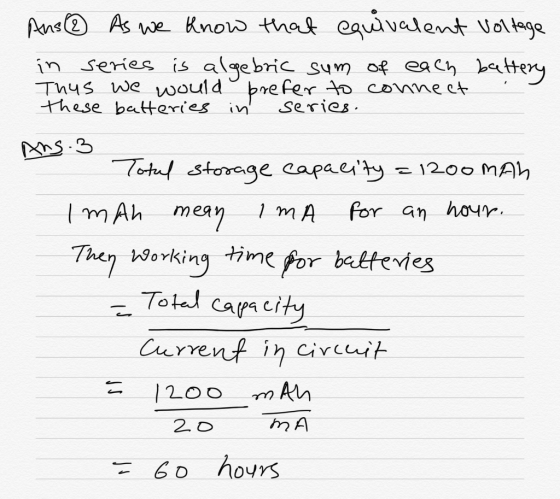

2)How do you need to connect the batteries?
3)For how many hours will the toy work with that number of batteries if the current through the LEDs is 20 mA and the total storage capacity of the batteries is 1200 mAh?
Homework Answers
