describe or draw the BST that results when you insert the keys E A S Y...

Question

Question

describe or draw the BST that results when you insert the keys E A S Y...

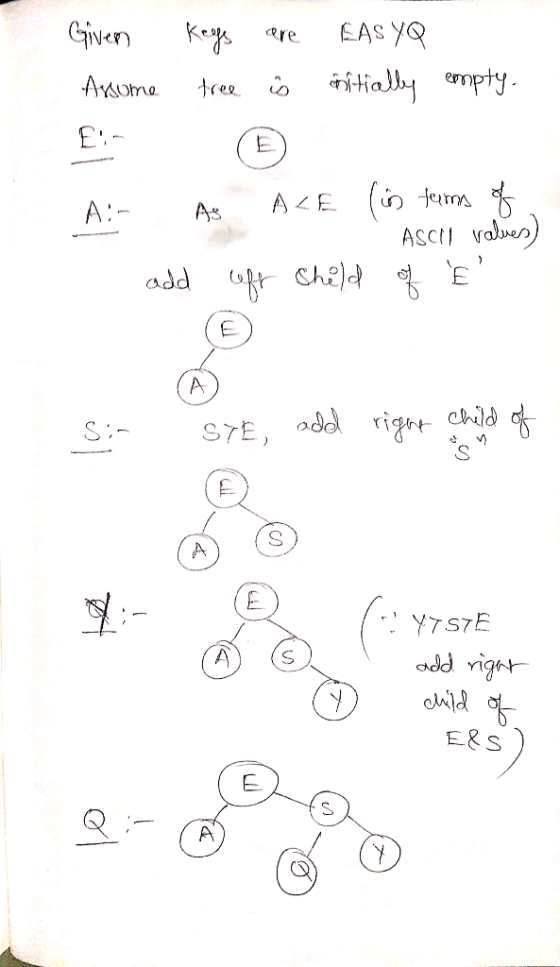

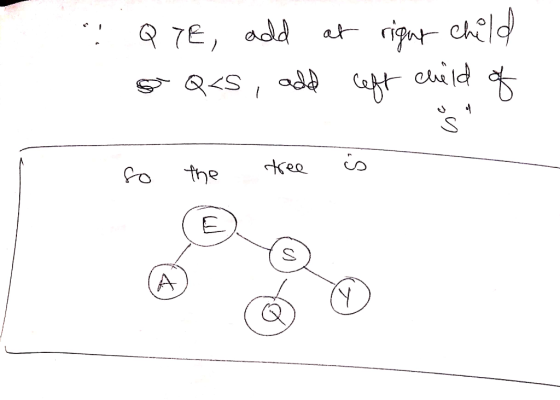

describe or draw the BST that results when you insert the keys E A S Y Q in that order using root insertion

engineering Computer-Science

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

Add a comment

Answer 2
