A rectangular coil has 11 turns and sides of length a=40cm and c=30cm. The coil is...

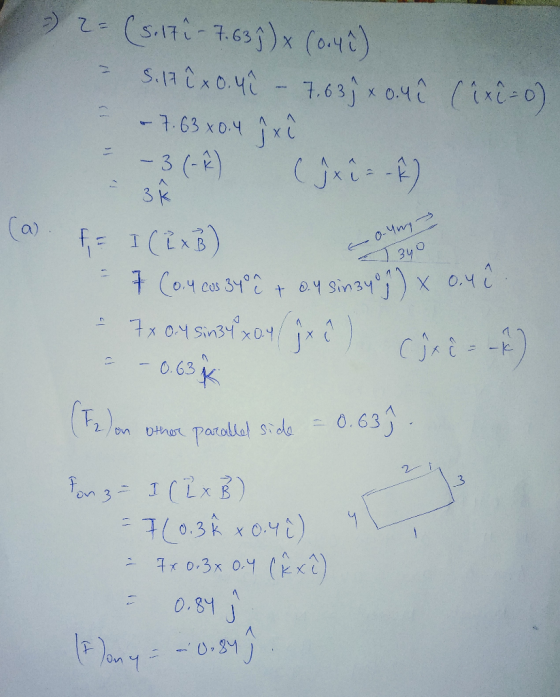

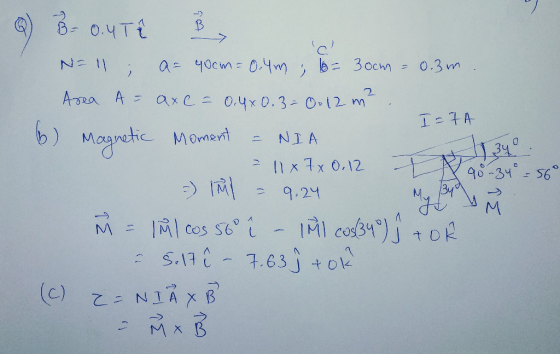

A rectangular coil has 11 turns and sides of length a=40cm and c=30cm. The coil is pivoted about the z axis and its plane is at θ=34∘ to a magnetic field B=0.4iT, as shown in the figure above. If I=7A, find: a) the force on each side. F1=( 0 i+ 0 j+ k)N F2=( 0 i+ j+ 0 k)N F3=( 0 i+ 0 j+ k)N F4=( 0 i+ j+ 0 k)N b) What is the magnetic moment of the coil? M=( i+ j+ 0 k)A⋅m2 c) What is the torque on the coil? T=( 0 i+ 0 j+ k)N⋅m
