4.2 Sketch a LOGIC diagram of the 3 internal interrupt sources of the PIC16F877A (5)

4.2 Sketch a LOGIC diagram of the 3 internal interrupt sources of the PIC16F877A (5)

0 0
Add a comment Improve this question Transcribed image text
Answer #1

Answer:

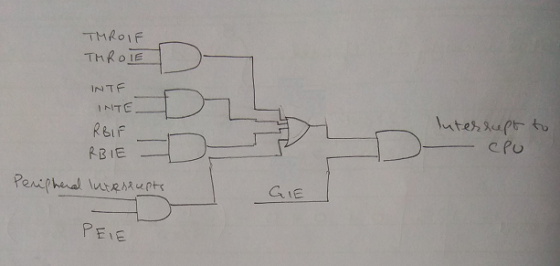

Logic diagram for three interrupt sources for Microchip PIC 16F877a are shown below.

Some explanation:

1. These three interrupt sources are Timer0 (TMR0IF), Interrupt-onPortB Change (INTF), and external interrupt on port line RB0 (RBIF).

2. Note that for any of these interrupt sources to actually interrupt the CPU, the corresponding enable bit should also be set (e.g. for timer0 interrupt to take effect TMR0IE bit needs to be set).

3. In addition to these three interrupts there are a another 12 interrupt sources. These are called called peripheral interrupts.

4. GIE, in the diagram below, stands for General Interrupt Enable. This bit must be set to 1 to enable interrupt system.

Hope this helps.

Add a comment
Know the answer?
Add Answer to:
4.2 Sketch a LOGIC diagram of the 3 internal interrupt sources of the PIC16F877A (5)
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
  • 3.2) Complete the circuit diagram in Figure 4 below based on the logic circuit in Figure...

    3.2) Complete the circuit diagram in Figure 4 below based on the logic circuit in Figure 3 above Figure 4. Timing diagram based on logic circuit in Figure 3 4.1) Derive the Truth Table of the logic circuit in Figure 5 below Figure 5. Logic circuit of a multiplexer The circuit is called a multiplexer. Could you explain why? You are welcome to research online to help you with the answer 4.2)

  • Problem 3: Interrupt and Interrupts Handlers a) Can the phrases Interrupt Service Routine and Interrupt Handler be...

    Problem 3: Interrupt and Interrupts Handlers a) Can the phrases Interrupt Service Routine and Interrupt Handler be used interchangeably? b) Laboratory Assignment 2 has two Interrupt Handlers, one for a pin on PortF and one for the System Timer. Please state what each interrupt's function is and what event would cause the interrupt to occur. c) Review Lab 2 and provide pseudo code or a flow diagram for the program, Problem 3: Interrupt and Interrupts Handlers a) Can the phrases...

  • Design 5 seconds. Use 8-bit counter and logic gates for your hardware design Assume clock frequency...

    Design 5 seconds. Use 8-bit counter and logic gates for your hardware design Assume clock frequency of 80 Hz for the 8-bit counters that are used in the design Show all work and provide the logic diagram for full credit Watchdog-Timer that will generate an overflow (interrupt) output every a Design 5 seconds. Use 8-bit counter and logic gates for your hardware design Assume clock frequency of 80 Hz for the 8-bit counters that are used in the design Show...

  • I. Draw the logic diagram for the function

    For Questions 1-3: I. Draw the logic diagram for the function (5 points) II Derive the Karnaugh map for the function (5 points) III Write the function in Sum of Products notation (5 points) IV. Simplify the expression (5 points) V. Draw the logic diagram for the simplified function (5 points) VI. Show that the simplified expression equals the original equation by deriving the truth tables for both. (5 points)

  • (1) Sketch a block diagram for QPSK modulator. (2) With the input data 1 and 0...

    (1) Sketch a block diagram for QPSK modulator. (2) With the input data 1 and 0 shown in Table 1 below, evaluate the output by completing the Table 2 below. (3) Sketch the QPSK constellation diagram. Table 1: Logic 1 = 1V Logic 0 = -1V Table 2: 1 Q QPSK Output 0 0 0 1 1 0 1 1 1.414sin(ωct+45°)

  • PROBLEM 3 (16 PTS) ▪ With a D flip flop and logic gates, sketch the circuit...

    PROBLEM 3 (16 PTS) ▪ With a D flip flop and logic gates, sketch the circuit whose excitation equation is given by: PROBLEM 3 (16 PTS) • With a D flip flop and logic gates, sketch the circuit whose excitation equation is given by: Qit+1) + y + Q(t) + y(t) (4 pts) • Complete the timing diagram of the circuit whose VHDL description is shown below. Also, get the excitation equation for q. library ieee: elsaf (cll'event and clk...

  • a) Using appropriate data sources (to be cited correctly) make a reasonably accurate sketch of Evan’s...

    a) Using appropriate data sources (to be cited correctly) make a reasonably accurate sketch of Evan’s diagram for iron immersed in vigorously agitated diluted hydrochloric solution at pH 5 at 30 °C. The surface to volume ratio of this iron piece is small. In other words, there is no change in solution pH. The diagram should exhibit correct corrosion potential and corrosion current density. (b) Describe what could happen if the solution become stagnant. Using appropriate data sources to modify...

  • Pre-Laboratory Preparation 1. In the context of connecting a button with GPIO, what do negative logic...

    Pre-Laboratory Preparation 1. In the context of connecting a button with GPIO, what do negative logic and positive logic mean? [5 marks] 2. When referring to interrupt triggering via GPIO, explain the difference between falling edge, rising edge, low level, and high level. [5 marks] 3. What five conditions must be true for an interrupt to occur? [5 marks] 4. How do you enable interrupts? [5 marks] 5. What are the steps that occur when an interrupt is processed? [5...

  • Problem 5. (20 points) Design and sketch a standard CMOS transistor circuit to implement the logic...

    Problem 5. (20 points) Design and sketch a standard CMOS transistor circuit to implement the logic function F=(AB+C)D

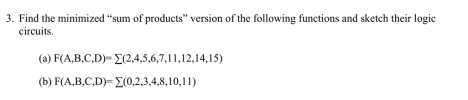

  • 3. Find the minimized "sum of products" version of the following functions and sketch their logic...
