In a Buck dc-dc converter, L=25μH, C=100μF. It operates in steady-state under the following conditions: Vin=42V,...

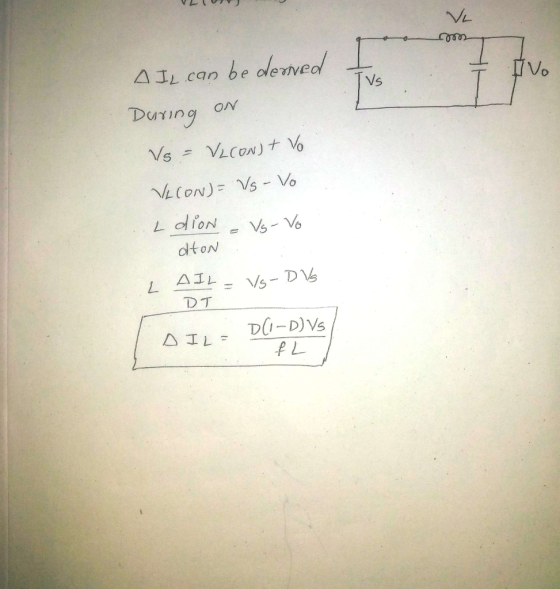

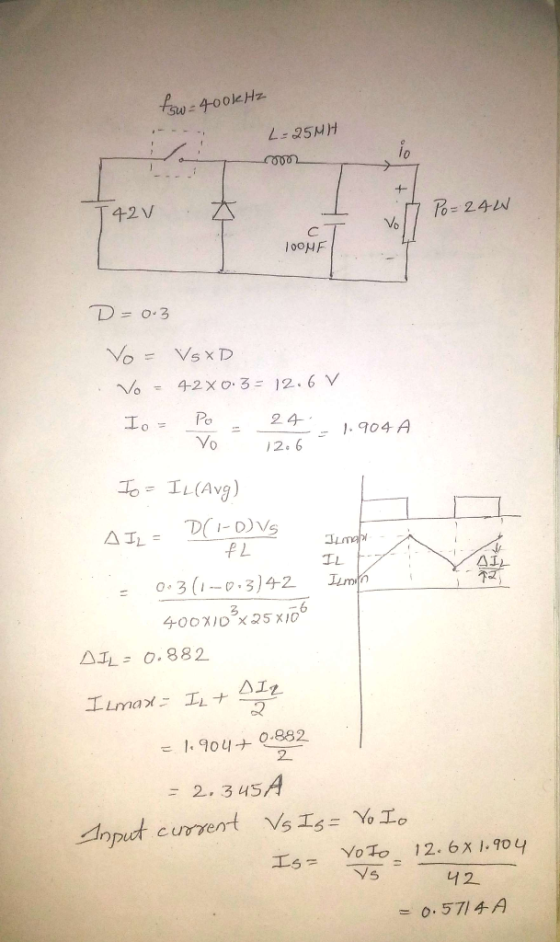

- In a Buck dc-dc converter, L=25μH, C=100μF. It operates in steady-state under the following conditions: Vin=42V, D=0.3, PO=24W, and fSW=400kHz. Assume ideal components. Calculate the value of PEAK of input current.
Homework Answers
Add Answer to:
In a Buck dc-dc converter, L=25μH, C=100μF. It operates in
steady-state under the following conditions: Vin=42V,...
In a Buck-Boost converter, L=25 μΗ. It is operating in dc steady state under the following
In a Buck-Boost converter, \(L=25 \mu \mathrm{H}\). It is operating in dc steady state under the following conditions: \(V_{i n}=12 \mathrm{~V}, D\) \(=0.6, P_{o}=36 \mathrm{~W}\), and \(f_{s}=400 \mathrm{kHz}\). Assume ideal components.In this Buck-Boost converter, the output load is changing. Calculate the critical value of the output load \(P_{o}\) below which the converter will enter the discontinuous conduction mode of operation.(a) Calculate \(I_{\text {L.crit }}\) and \(I_{o, \text { crit }}\)(b) Calculate \(P_{o, \text { crit }}\)
A buck converter is operating in the steady state with an input voltage of = 42 V dc, D = 0.3, ou...
A buck converter is operating in the steady state with an input voltage of = 42 V dc, D = 0.3, output power of 24 W, an inductance of 25 H and a switching frequency of 400 kHz. Draw the input current, inductor current, inductor voltage, and capacitor current waveforms. Assume the dc component of the inductor current flows through to the load and the ac component of the inductor current flows through the capacitor. Assume ideal circuit components.
Problem 5 (20%)-A Boost dc-dc converter is operating in DC steady state under the following condition:...
Problem 5 (20%)-A Boost dc-dc converter is operating in DC steady state under the following condition: 玲= 4V, pO = 10V, Po = 40W and f, = 200kHz . The value of the inductor is selected such as that under these operating conditions, the peak-to-peak ripple Δ, 2.4. What is the value of the inductance L in uH ? Please provide your answer with calculation in details.
Buck Converter Question Q3. A Buck converter is used to produce a regulated 10V, 5A DC...
Buck Converter Question
Q3. A Buck converter is used to produce a regulated 10V, 5A DC power supply from a variable DC source with an nominal input voltage of Vin = 20V±5V. The Buck converter switches at 250kHz, and operates entirely in the continuous conduction mode. The output filter capacitance is C1.0uF 3.a. Draw the circuit topology for the Buck converter. Ensure that your circuit includes the input DC source, the output load resistance, the switching devices (i.e. MOSFET and...
3. A PV array is feeding a Buck Converter which is in turn feeding a resistive...
3. A PV array is feeding a Buck Converter which is in turn feeding a resistive load, Rr. The system is nominally operating at the maximum power point (MPP). PV conditions: Vm= 45 V Im= 5 A Buck Converter: Cin = 470 uF Cout = 1000 uF L = 1 mH fsw = 50 kHz Load: 3Ω resistive a) Calculate the duty cycle of the buck converter. (Note: System is operating at MPP.) b) Calculate the peak-peak inductor ripple current....
(c) The dual-switch forward converter in Fig. Q4(c) is supplied from an input voltage Vin of 42V,...
(c) The dual-switch forward converter in Fig. Q4(c) is supplied from an input voltage Vin of 42V, and switches at 100kHz with a duty factor of 0.35. The transformer T1 carries 50 primary turns and 34 secondary turns. The core used in T1 has an effective area of 45mm2 and an effective length of 72mm. The relative permeability of its core material is =1790. [NB: The permeability of free space IS μ.-1.257×10-94/m.] V.D D, L1 TRI - 01 N1 N2...
In a SEPIC converter, assume the ripple in the inductor currents and the capacitor voltage to be ...
In a SEPIC converter, assume the ripple in the inductor currents and the capacitor voltage to be zero. This SEPIC converter is operating in a DC steady state under the following conditions: b = 10 V, D = 0.333, Po = 50 W, and = 200 kHz. Assume ideal components. (a) Calculate Ts DTs (b) Calculate Vn and Ii in/ o (c) Calculate Vc, lLİ 2X,i, VL2
In a SEPIC converter, assume the ripple in the inductor currents and the...
A PV array with terminal voltage around 48 V under standard conditions is connected to a step-up dc-dc converter to supply a load at 120 V, 5 A. The input inductance is 8 mH with an internal resistanc...
A PV array with terminal voltage around 48 V under standard conditions is connected to a step-up dc-dc converter to supply a load at 120 V, 5 A. The input inductance is 8 mH with an internal resistance of 0.2 ohms, and the switching frequency is 5 kHz. Assuming ideal circuit components, calculate the duty ratio (k) and average input current (I1). Evaluate the maximum peak-to-peak input current ripple for the converter. If this current is limited to 2% of...
A buck converter has the following: Vin=18V, L=10mH, C=20µF, R=20 ohms, switching frequency f=20kHz, and conduction...
A buck converter has the following: Vin=18V, L=10mH, C=20µF, R=20 ohms, switching frequency f=20kHz, and conduction duty cycle D=0.6. Calculate the output voltage and its ripple in the steady state. Is this CCM or DCM?
In a buck converter, consider all components to be ideal. Let the output voltage level to...
In a buck converter, consider all components to be ideal. Let the output voltage level to be constant at Vo-10 V by controlling the switch duty ratio D. Calculate the minimum inductance L required to keep the converter operation in a continuous conduction mode under all conditions if the input voltage, Vd is in the range of 20- 50 V, output power, Po ≥ 10 W, and switching frequency, fs = 20 kHz.
Problem 5 (20%)-A Boost dc-dc converter is operating in DC steady state under the following condition: 玲= 4V, pO = 10V, Po = 40W and f, = 200kHz . The value of the inductor is selected such as that under these operating conditions, the peak-to-peak ripple Δ, 2.4. What is the value of the inductance L in uH ? Please provide your answer with calculation in details.
Buck Converter Question
Q3. A Buck converter is used to produce a regulated 10V, 5A DC power supply from a variable DC source with an nominal input voltage of Vin = 20V±5V. The Buck converter switches at 250kHz, and operates entirely in the continuous conduction mode. The output filter capacitance is C1.0uF 3.a. Draw the circuit topology for the Buck converter. Ensure that your circuit includes the input DC source, the output load resistance, the switching devices (i.e. MOSFET and...
3. A PV array is feeding a Buck Converter which is in turn feeding a resistive load, Rr. The system is nominally operating at the maximum power point (MPP). PV conditions: Vm= 45 V Im= 5 A Buck Converter: Cin = 470 uF Cout = 1000 uF L = 1 mH fsw = 50 kHz Load: 3Ω resistive a) Calculate the duty cycle of the buck converter. (Note: System is operating at MPP.) b) Calculate the peak-peak inductor ripple current....
(c) The dual-switch forward converter in Fig. Q4(c) is supplied from an input voltage Vin of 42V, and switches at 100kHz with a duty factor of 0.35. The transformer T1 carries 50 primary turns and 34 secondary turns. The core used in T1 has an effective area of 45mm2 and an effective length of 72mm. The relative permeability of its core material is =1790. [NB: The permeability of free space IS μ.-1.257×10-94/m.] V.D D, L1 TRI - 01 N1 N2...
In a SEPIC converter, assume the ripple in the inductor currents and the capacitor voltage to be zero. This SEPIC converter is operating in a DC steady state under the following conditions: b = 10 V, D = 0.333, Po = 50 W, and = 200 kHz. Assume ideal components. (a) Calculate Ts DTs (b) Calculate Vn and Ii in/ o (c) Calculate Vc, lLİ 2X,i, VL2
In a SEPIC converter, assume the ripple in the inductor currents and the...
