Are the claims true or false?

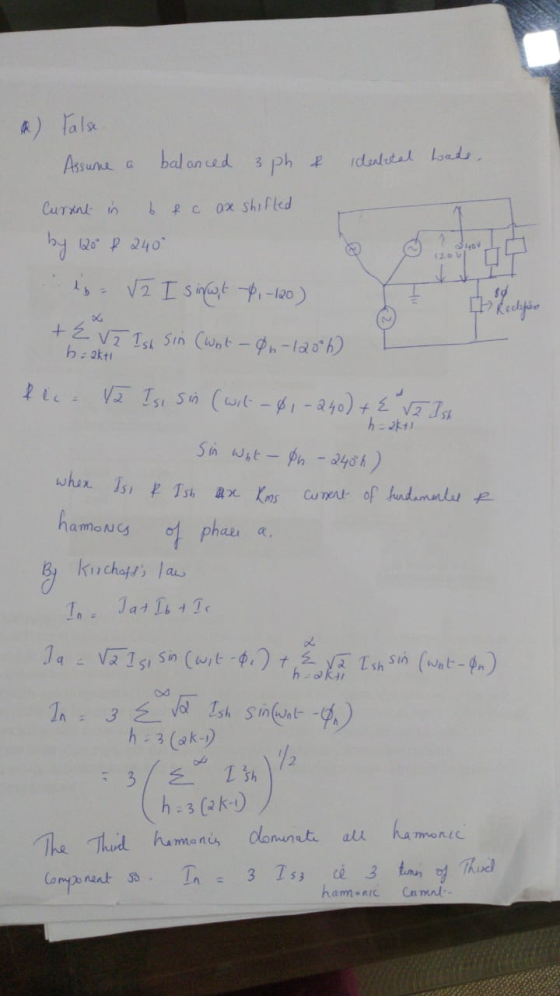

1. The RMS value of the neutral wire current is approximately six times the third harmonic RMS current in the line conductors of three-phase, four-wire systems with identical singlephase diode bridge rectifier systems in each phase of the load side
true / false

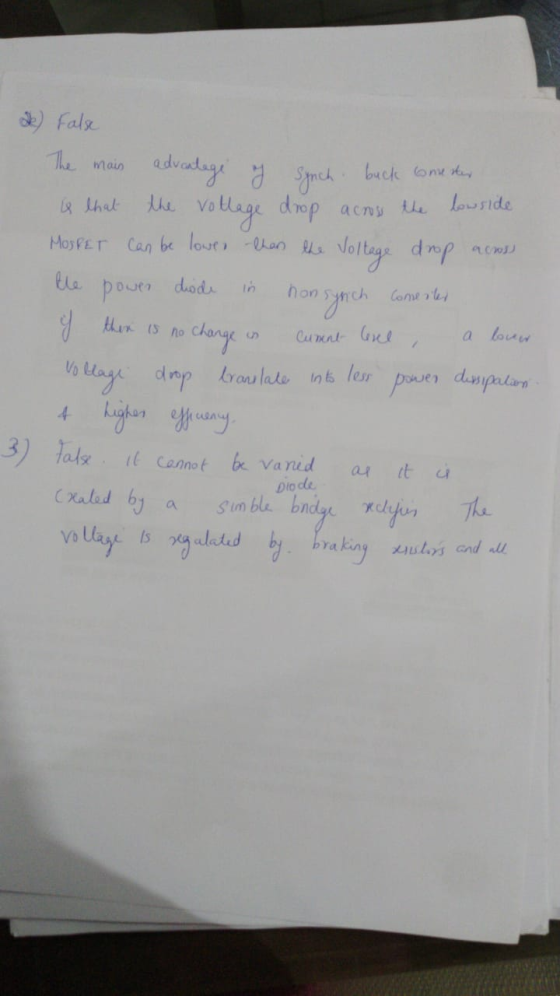

2. The main disadvantage of a synchronous buck converter is that the voltage drop across the lowside MOSFET can be higher than the voltage drop across the power diode of the nonsynchronous converter.
true / false
3. In a typical AC motor drive the polarity of dc-bus voltage may vary according to operation point.
true / false
Are the claims true or false? 1. The RMS value of the neutral wire current is...
Distortion current includes all the other harmonics than the fundamental true / false The main advantage of a synchronous buck converter is that the voltage drop across the low-side MOSFET can be higher than the voltage drop across the power diode of the nonsynchronous converter true / false A converter operates in the rectifier mode of operation when power is converted from AC to DC true / false The average value of the DC voltage in the output of a...
THREE-PHASE, FOUR-WIRE SYSTEMS, NEUTRAL CURRENT 5-21 In the three-phase, four-wire system of Fig. 5-28, all single-phase rectifier loads are identical and the conditions are such that each line current flows for less than 60 during each half-cycle of the line-to-neutral voltage. Show that in terms of their rms values,-V311
In this part of the term paper, design a single-phase switch-mode DC power supply with a forward converter. Provide answers to the questions below Please combine the single-phase full-wave rectifier from part two of your term paper with a forward converter to produce a switch-mode DC power supply, as shown below. The output of the bridge rectifier serves as input to the forward converter L1 Np: N BH621BH62 D, V1 Load C1 100p 45 Vrms D3 BH62 18H62 D4 Control...
(a) Two three-phase, 400kV (rms), 50Hz, AC networks are connected together via a current-source HVDC link made up of a three-phase, 12-pulse full-wave thyristor rectifier and a three-phase, 12-pulse full-wave thyristor inverter. (i) Draw the circuit diagram for this system and explain, for the rectifier stage, how the firing delay angle may be used to control the average DC voltage. (ii) Explain the main advantages of HVDC transmission compared to AC transmission. (b) An H-Bridge converter is to be used...
1. A single-phase, full wave rectifier has an AC source with Vm=24 volts at f=60 Hz. Determine the 2th harmonic of the output voltage. 2. The average current of a single phase bridge rectifier at its DC side is 6.94 amps. What is the average current flowing through each diode?
please help
Question 1 Consider the following circuit, where the reverse saturation current (Is) is the same for each diode. D2 o Vo Di Vi WWW R 32 23 a. b. Determine an algebraic expression for V1, for a given Vo, and Is. Given an Is of 40 FA and R1 = 3.3 kl , determine the Vi that produces an output voltage (V.) of 0.625 V. C. Recalculate question-b if Is were to be a thousand times greater at...
Are the following statements true (T) or false (F) of the electromagnetic compatibility in power electronics? a) Component layout of the power converter does not affect the EMI coupling, just the switching speed. b) In power converter, increasing the distance between two wires is a good option to re- move noise coupling. c) The frequency content of a PWM controlled output voltage is defined only by the fun- damental (modulating signal) and the carrier frequencies. d) The inverter end of...
true of false 1.Polarity is defined based on the conventional current through a resistive element. 3. If there are two resistors in a parallel circuit, total resistance can be calculated by the product divided by the sum. 3. When a 10kohm resistor, a 1kohm resistor, and a 100ohm resistor are connected in series, the current through each resistor is the same, and the voltage across each resistor is the same .
Any help?
, m Figure &. the peuk foad vollage 10:1 01 a 33.24 v h 16.27 v c. 23.7 V d 12V gto cmm Figure 8 34. In Figure S, the de load current loe is: a 13.19 mA h. 11.38 mA C, 10.36 mA d. 26.04 mA 35. In F'igure š, the ouiput frequency tD is: 36. In Figure &, the averaye DC current through diode DI lasn) is: 37, In Figure S, assume the secondary voltage is...
Question 1 (2 points) Question 7 (2 points) Circuit protection devices limit excess voltage current or power Fuses are just wire inside a case that melts True True False Question 8 (2 points) Question 2 (2 points) A lightning rod is better than a lightning arrester The best trip element to use to protect a circuit from both small long-lasting overloads and large bursts of current is True False Question 9 (2 points) they are all the same Circuit breakers...
