A 1000 kg car enters a curve in the (unbanked) road. The driver finds that the...

Question

Question

A 1000 kg car enters a curve in the (unbanked) road. The driver finds that the top speed at which he can make the bend without skidding is 18 m/s.

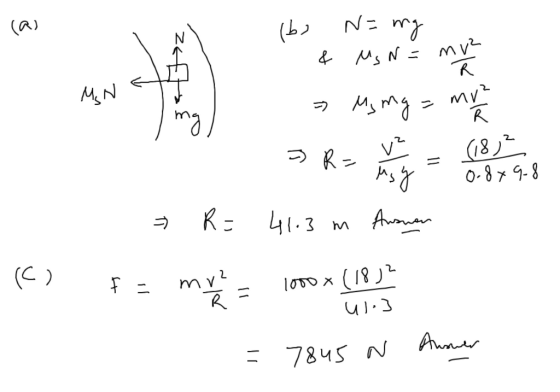

a. Make a free-body diagram of the car in the r-z plane.

b. What is the radius of the circle of which the curve is a part? (s = 0.8, k = 0.5)

c. Calculate the centripetal force on the tires of the car.

science physics

Answer 1

Answer #1

Answer 2
