A 240V,1500rpm separately excited motor has the armature resistance of Ra=0.1ohm.The motor current is 30A a)...

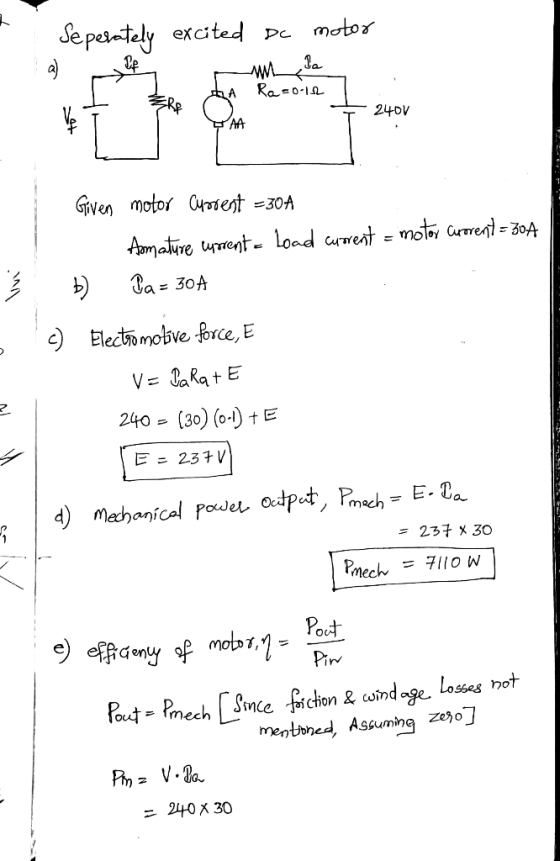

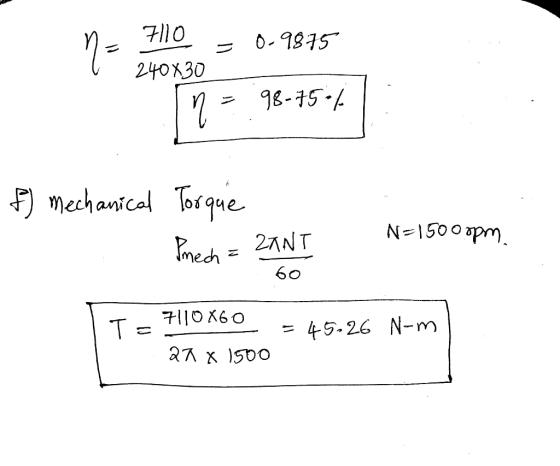

A 240V,1500rpm separately excited motor has the armature resistance of Ra=0.1ohm.The motor current is 30A a) draw the equivalent circuit of the motor b)find cthe armature current Ia in ampere c)Find the electromotive force in volts d)Find the mechanical output power developed by the motor in watts e)calculate the efficiency of the motor in percentage f) calculate the mechanical torque produced by the motor in Nm
Homework Answers
Add Answer to:
A 240V,1500rpm separately excited motor has the armature
resistance of Ra=0.1ohm.The motor current is 30A a)...
A 240V ,1500rpm separately excited motor has the armature resistance of Ra=0.1ohm.The motor current is 30A....
A 240V ,1500rpm separately excited motor has the armature resistance of Ra=0.1ohm.The motor current is 30A. a) Draw the equivalent circuit of the motor b) Find the armature current (Ia) in ampere
P4-17) A 240 V separately exited dc motor has an armature resistance of Ra = 006...
P4-17) A 240 V separately exited dc motor has an armature resistance of Ra = 006 Ω, when it is connected to a 240 V supply, it draws 90 A from the supply and rotates at 1200 rpm. Find the torque developed by the motor at this operating condition. If the torque developed is 280 Nm for the same excitation and same supply voltage, then find the speed and armature current. a) b)
(i) A 220 volts, 825 rpm, 125 A separately excited DC motor has an armature resistance...
(i) A 220 volts, 825 rpm, 125 A separately excited DC motor has an armature resistance of 0.05 2. It is fed from a single phase fully controlled rectifier with an ac source of 225 Volts, 50Hz. Assuming continuous conduction calculate (a) Firing angle for 1/4"hrated motor torque and 750 rpm (b) Motor speed for a=160 degrees and rated torque 5 Marks (ii) Draw and explain with neat circuit diagram of a DC drive circuit, which works with positive output...
A 30 hp, 240 V, 1150 rpm de shunt motor operating at rated conditions has an efficiency of 88.5%. The armature circuit resistance and field circuit resistance are 0.096 Ω and 936 Ω respectively. Calc...
A 30 hp, 240 V, 1150 rpm de shunt motor operating at rated conditions has an efficiency of 88.5%. The armature circuit resistance and field circuit resistance are 0.096 Ω and 936 Ω respectively. Calculate the following: (a) the armature current; b) the output torque (c) the mechanical developed power (d) the mechanical developed torque; and, e) the external resistance required in series with the armature to limit the starting torque to 200 % of rated torque. If the load...
The speed of a separately excited de motor is controlled by a one-phase full-wave converter. The field circuit is also controlled by a full-wave converter and the field current is set to its maximum...
The speed of a separately excited de motor is controlled by a one-phase full-wave converter. The field circuit is also controlled by a full-wave converter and the field current is set to its maximum value. The AC supply voltage to the armature and field converters is one-phase, 400V, 50Hz. The armature resistance Ra 0.232, the field circuit resistance Rf- 1812, and the motor voltage constant is Kv 1.3V/A - rad/s. The armature current corresponding to the load demand Ia 42A...
A separately-excited DC traction motor of a metro train is in series connection, i.e., the armature...
A separately-excited DC traction motor of a metro train is in series connection, i.e., the armature and the field windings are connected in series with a common DC power source. The voltage of the DC power source is I (a) Please show that the angular velocity of the rotor is KT K where o is the is the angular velocity of the rotor, Ra is the resistance of the armature, Rris the resistance of the field windings, T is the...
A 230 V, 1000 rpm, 30 A separately excited motor has armature resistance and inductance of...
A 230 V, 1000 rpm, 30 A separately excited motor has armature resistance and inductance of 0.7 Ω and 50 mH respectively. Motor is controlled in regenerative braking by a chopper operating at 800 Hz from a dc source of 230 V. Assuming continuous conduction a) Calculate duty ratio of chopper for rated torque and the speed of 800 rpm. b) What will be the motor speed for duty ratio of 0.6 and rated motor torque? c) What will be...
An armature-controlled dc motor operates at steady state, with an armature drive voltage va = 10 ...
An armature-controlled dc motor operates at steady state, with an armature drive voltage va = 10 V. The motor runs at 600 rpm, and the armature current is found to be ia = 0.2 A. The armature resistance is Ra = 15 Ω. Determine: (a) The torque constant km of the motor (b) Electrical damping constant be (c) The efficiency under the given operating conditions, if the mechanical damping constant is bm = 8.25 × 10−5 N ⋅ m/rad/s (d)...
Problem 2 A separately excited DC motor is characterized by the followng intormation Armature res...
Problem 2 A separately excited DC motor is characterized by the followng intormation Armature resistance Ra-5 2 armature inductance La . very large, Field resistance RS200 Ω, ted voltage Vt 200 V, and an inertia constant J-12 kg m Neglecting friction losses and assuming no-saturation in the machine magnetic core system, answer the folowing questions: Part 1: (6 marks) he motor a as shown in figure 2a. The motor drives a constant power load of vaue 1 40375 hp (ie...
1. A 300 V compound motor has armature resistance 0.18 Ω, series field resistance 0.3 Ω...
1. A 300 V compound motor has armature resistance 0.18 Ω, series field resistance 0.3 Ω and shunt field resistance 100 Ω. The rotational losses are 200 W. On full load the line current is 25 A and the motor runs at 1800 rpm. Determine: (i) the developed mechanical power (ii) the output power (iii) the output torque (iv) the efficiency at full load 2. A 120 V series motor has 0.2 Ω field resistance. On full load, the line...
P4-17) A 240 V separately exited dc motor has an armature resistance of Ra = 006 Ω, when it is connected to a 240 V supply, it draws 90 A from the supply and rotates at 1200 rpm. Find the torque developed by the motor at this operating condition. If the torque developed is 280 Nm for the same excitation and same supply voltage, then find the speed and armature current. a) b)
(i) A 220 volts, 825 rpm, 125 A separately excited DC motor has an armature resistance of 0.05 2. It is fed from a single phase fully controlled rectifier with an ac source of 225 Volts, 50Hz. Assuming continuous conduction calculate (a) Firing angle for 1/4"hrated motor torque and 750 rpm (b) Motor speed for a=160 degrees and rated torque 5 Marks (ii) Draw and explain with neat circuit diagram of a DC drive circuit, which works with positive output...
A 30 hp, 240 V, 1150 rpm de shunt motor operating at rated conditions has an efficiency of 88.5%. The armature circuit resistance and field circuit resistance are 0.096 Ω and 936 Ω respectively. Calculate the following: (a) the armature current; b) the output torque (c) the mechanical developed power (d) the mechanical developed torque; and, e) the external resistance required in series with the armature to limit the starting torque to 200 % of rated torque. If the load...
The speed of a separately excited de motor is controlled by a one-phase full-wave converter. The field circuit is also controlled by a full-wave converter and the field current is set to its maximum value. The AC supply voltage to the armature and field converters is one-phase, 400V, 50Hz. The armature resistance Ra 0.232, the field circuit resistance Rf- 1812, and the motor voltage constant is Kv 1.3V/A - rad/s. The armature current corresponding to the load demand Ia 42A...
A separately-excited DC traction motor of a metro train is in series connection, i.e., the armature and the field windings are connected in series with a common DC power source. The voltage of the DC power source is I (a) Please show that the angular velocity of the rotor is KT K where o is the is the angular velocity of the rotor, Ra is the resistance of the armature, Rris the resistance of the field windings, T is the...
Problem 2 A separately excited DC motor is characterized by the followng intormation Armature resistance Ra-5 2 armature inductance La . very large, Field resistance RS200 Ω, ted voltage Vt 200 V, and an inertia constant J-12 kg m Neglecting friction losses and assuming no-saturation in the machine magnetic core system, answer the folowing questions: Part 1: (6 marks) he motor a as shown in figure 2a. The motor drives a constant power load of vaue 1 40375 hp (ie...
