2. A 78 block lies on a long horizontal board 1.40 m from left end ....

2. A 78 block lies on a long horizontal board 1.40 m from left end . This 19 kg board is uniform, 6.0 m long, and supported at each end by vertical posts.

(a) What is the magnitude of the left post?

b) What is the magnitude of the right post?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

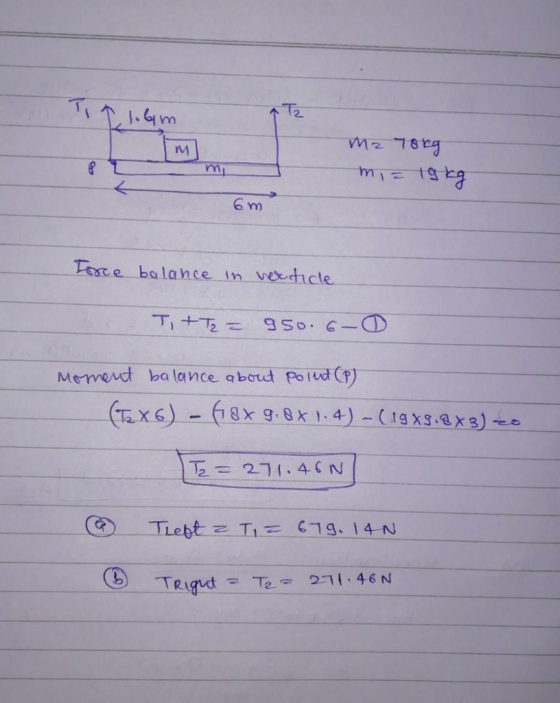

Answer #1

0 0
