A) A 11 m long board is held up at the two ends by a rope....

A) A 11 m long board is held up at the two ends by a rope. A 45 kg box sits 3 m from the left end. Find the tension in the rope on the right.

B) A 11 m long board that has a mass of 14 kg is held up by two ropes. The left rope is 4 m from the left end of the board, and the other rope is 2 m from the right end of the board. A 20 kg box sits 3 m from the right end. Find the tension in the rope on the left.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

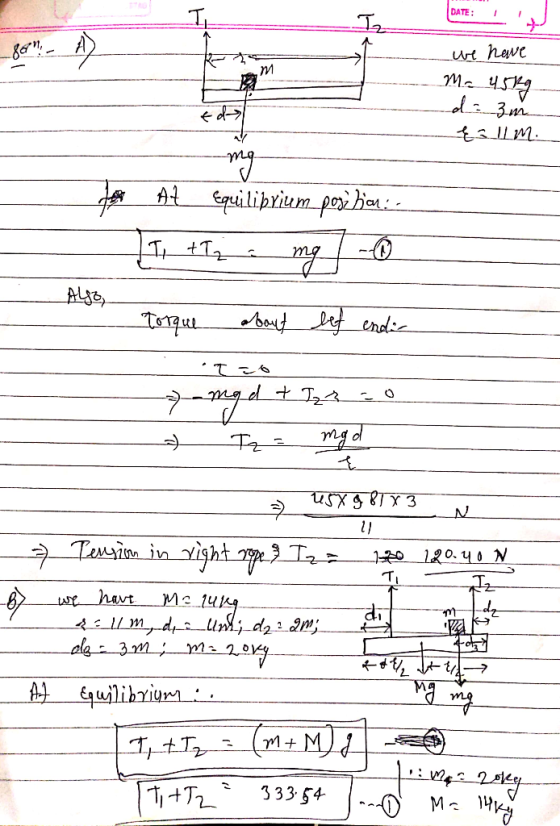

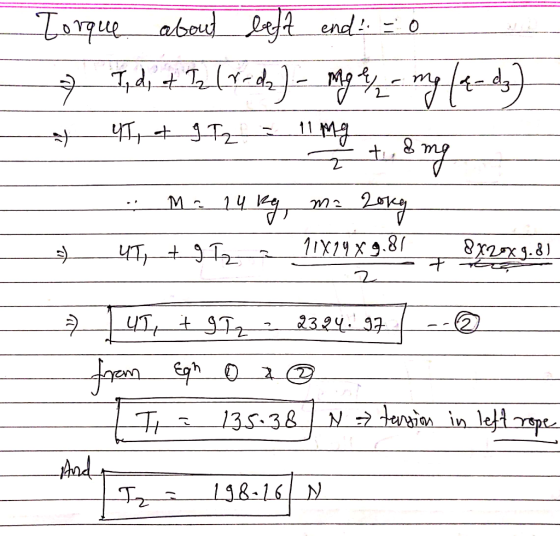

Answer #1

0 0
Add a comment
