A 100-kg scaffold is held up by a wire at each end. The scaffold is 6.00...

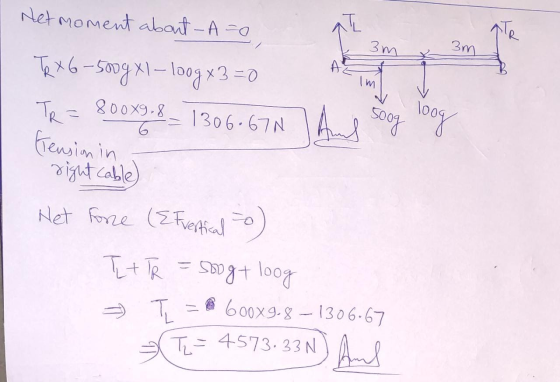

A 100-kg scaffold is held up by a wire at each end. The scaffold is 6.00 m long. A 500-kg box sits 1.00 m from the left end. What is the tension in each wire?
Homework Answers
Dear student,
Find this solution, and RATE IT ,If you find it is helpful .your rating is very important to me.If any incorrectness ,kindly let me know I will rectify them soon.
Thanks for asking ..
Add Answer to:
A 100-kg scaffold is held up by a wire at each end. The scaffold
is 6.00...
A 110 kg scaffold is 6.00 m long. It is hanging with two wires, one from...
A 110 kg scaffold is 6.00 m long. It is hanging with two wires, one from each end. A 580 kg box sits 2.00 m from the left end. What is the tension in the left hand side wire?(g = 9.8 m/s2)
7a). A 100 kg scaffold is 5.60 m long. It is hanging with two wires, one...
7a). A 100 kg scaffold is 5.60 m long. It is hanging with two wires, one from each end. A 460 kg box sits 2.10 m from the left end. What is the tension in the left hand side wire?(g = 9.8 m/s2) ______Newtons
A 80 kg scaffold is 6.20 m long. It is hanging with two wires, one from...
A 80 kg scaffold is 6.20 m long. It is hanging with two wires, one from each end. A 420 kg box sits 1.50 m from the left end. What is the tension in the right hand side wire?(g = 9.8 m/s2)
A 120 kg scaffold is 6.20 m long. It is hanging with two wires, one from...
A 120 kg scaffold is 6.20 m long. It is hanging with two wires, one from each end. A 440 kg box sits 1.20 m from the left end. What is the tension in the right hand side wire?(g = 9.8 m/s2)
An 8m painting scaffold is held up by two ropes. The scaffold has a weight go...
An 8m painting scaffold is held up by two ropes. The scaffold has a weight go 800N. A 1000N painter stands 1m from the left end. A 200N tool box sits 2m from the left end. A 600N painter stands 3m from the right end. How much weight (force) does each rope hold up?
a 50.0 kg 6.00 m awning is held up by a wire in its middle. A...
a 50.0 kg 6.00 m awning is held up by a wire in its middle. A 15.0 kg sign hangs at the end. Calculate the tension in the massless wire and the magnitude of the net force from the wall acting on the awning. The angle between the awning and the wire in 40 degrees
A) A 11 m long board is held up at the two ends by a rope....
A) A 11 m long board is held up at the two ends by a rope. A 45 kg box sits 3 m from the left end. Find the tension in the rope on the right. B) A 11 m long board that has a mass of 14 kg is held up by two ropes. The left rope is 4 m from the left end of the board, and the other rope is 2 m from the right end of...
Two painters, each of mass 75.0 kg, stand on a 12.0 m scaffold, 6.00 m apart...
Two painters, each of mass 75.0 kg, stand on a 12.0 m scaffold, 6.00 m apart and 3.00 m from each end. They share a paint container of mass 21.0 kg in the middle of the scaffold. What weight (in N) must be supported by each of the ropes secured to the ends of the scaffold?
A window washer is standing on a scaffold supported by a vertical rope at each end....
A window washer is standing on a scaffold supported by a vertical rope at each end. The scaffold weighs 200 N and is 2.90m long. What is the tension in each rope when the 700 N worker stands 1.90 m from one end? smaller tension larger tension
20. A window washer is standing on a scaffold supported by a vertical rope at each...
20. A window washer is standing on a scaffold supported by a vertical rope at each end. The scaffold weighs 200 N and is 3.00 m long. What is the tension in each end? rope when the 700-N worker stands 1.00 m from one
20. A window washer is standing on a scaffold supported by a vertical rope at each end. The scaffold weighs 200 N and is 3.00 m long. What is the tension in each end? rope when the 700-N worker stands 1.00 m from one
