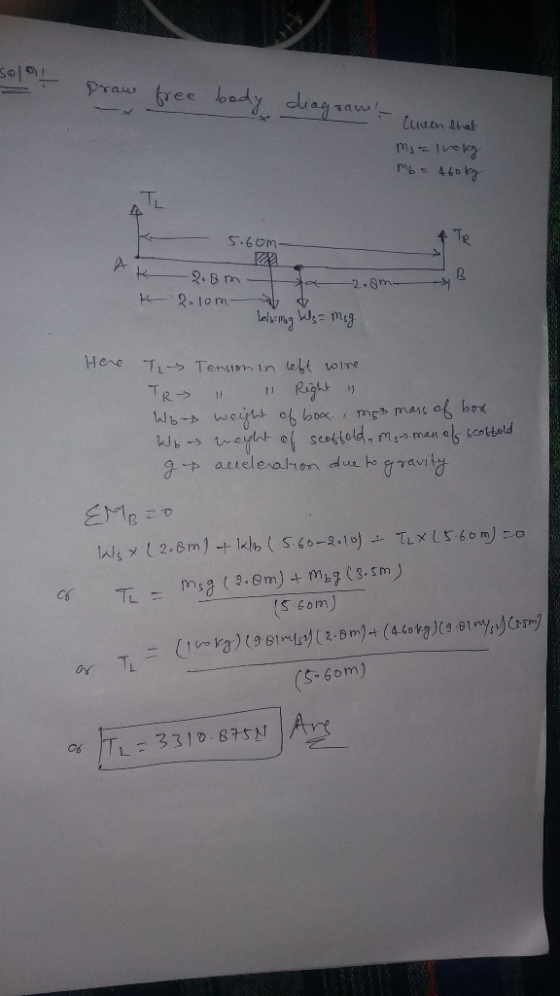

7a). A 100 kg scaffold is 5.60 m long. It is hanging with two wires, one...
7a). A 100 kg scaffold is 5.60 m long. It is hanging with
two wires, one from each end. A 460 kg box sits
2.10 m from the left end. What is the tension in
the left hand side wire?(g = 9.8
m/s2)
______Newtons
