A 110 kg scaffold is 6.00 m long. It is hanging with two wires, one from...

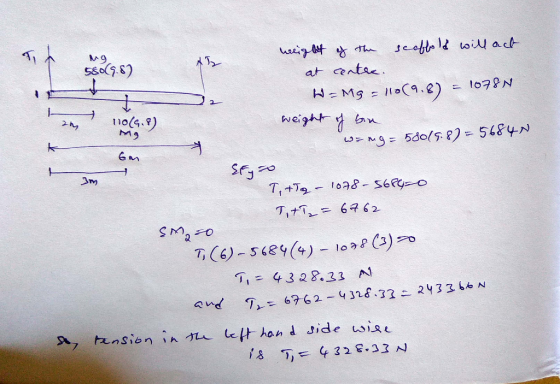

A 110 kg scaffold is 6.00 m long. It is hanging with two wires, one from each end. A 580 kg box sits 2.00 m from the left end. What is the tension in the left hand side wire?(g = 9.8 m/s2)
Homework Answers
Add Answer to:
A 110 kg scaffold is 6.00 m long. It is hanging with two
wires, one from...
A 80 kg scaffold is 6.20 m long. It is hanging with two wires, one from...
A 80 kg scaffold is 6.20 m long. It is hanging with two wires, one from each end. A 420 kg box sits 1.50 m from the left end. What is the tension in the right hand side wire?(g = 9.8 m/s2)
A 120 kg scaffold is 6.20 m long. It is hanging with two wires, one from...
A 120 kg scaffold is 6.20 m long. It is hanging with two wires, one from each end. A 440 kg box sits 1.20 m from the left end. What is the tension in the right hand side wire?(g = 9.8 m/s2)
7a). A 100 kg scaffold is 5.60 m long. It is hanging with two wires, one...
7a). A 100 kg scaffold is 5.60 m long. It is hanging with two wires, one from each end. A 460 kg box sits 2.10 m from the left end. What is the tension in the left hand side wire?(g = 9.8 m/s2) ______Newtons
A 100-kg scaffold is held up by a wire at each end. The scaffold is 6.00...
A 100-kg scaffold is held up by a wire at each end. The scaffold is 6.00 m long. A 500-kg box sits 1.00 m from the left end. What is the tension in each wire?
1. A uniform 40.0-kg scaffold of length 6.0 m is supported by two light cables, as...
1. A uniform 40.0-kg scaffold of length 6.0 m is supported by two light cables, as shown below. An 80.0-kg painter stands 1.0 m from the right end of the scaffold, and his 2.5 kg painting equipment is 1.5 m from the left end. a) Draw an FBD of the scaffold and clearly label all the forces acting on the scaffold b) Summing the torques acting on the scaffold, find the tension in the right-hand cable. Summing the forces acting...
Two painters, each of mass 75.0 kg, stand on a 12.0 m scaffold, 6.00 m apart...
Two painters, each of mass 75.0 kg, stand on a 12.0 m scaffold, 6.00 m apart and 3.00 m from each end. They share a paint container of mass 21.0 kg in the middle of the scaffold. What weight (in N) must be supported by each of the ropes secured to the ends of the scaffold?
A uniform 50-kg scaffold of length 7.0 m is supported by two light cables, as shown...
A uniform 50-kg scaffold of length 7.0 m is supported by two light cables, as shown below. A 58-kg painter stands 1.0 m from the left end of the scaffold, and his paint bucket is 1.5 m from the right end. If the tension in the left cable is twice that in the right cable, find the tensions in the cables and the mass of the bucket. Express all answers rounded to one decimal place.
A) A 11 m long board is held up at the two ends by a rope....
A) A 11 m long board is held up at the two ends by a rope. A 45 kg box sits 3 m from the left end. Find the tension in the rope on the right. B) A 11 m long board that has a mass of 14 kg is held up by two ropes. The left rope is 4 m from the left end of the board, and the other rope is 2 m from the right end of...
Two long wires, each 10 m long and parallel, hang from wires 4.00 cm long, as...
Two long wires, each 10 m long and parallel, hang from wires
4.00 cm long, as shown in the figure. The wires carry equal
currents and each carry a current of 160.0 Amps.
a) (20pts) Find the magnitude of the magnetic field generated by
one wire just the distance where the other wire is.
b) (30pts) Based on the previous answer, find the mass of each
wire so that a 6o angle is formed between the wire and the vertical...
A sign of mass m is hanging from 2 wires that are placed symmetrically and the...
A sign of mass m is hanging from 2 wires that are placed symmetrically and the wires make an angle of Theta from the vertical. Using variables, derive an expression to solve for the tension in each wire.
1. A uniform 40.0-kg scaffold of length 6.0 m is supported by two light cables, as shown below. An 80.0-kg painter stands 1.0 m from the right end of the scaffold, and his 2.5 kg painting equipment is 1.5 m from the left end. a) Draw an FBD of the scaffold and clearly label all the forces acting on the scaffold b) Summing the torques acting on the scaffold, find the tension in the right-hand cable. Summing the forces acting...
Two long wires, each 10 m long and parallel, hang from wires
4.00 cm long, as shown in the figure. The wires carry equal
currents and each carry a current of 160.0 Amps.
a) (20pts) Find the magnitude of the magnetic field generated by
one wire just the distance where the other wire is.
b) (30pts) Based on the previous answer, find the mass of each
wire so that a 6o angle is formed between the wire and the vertical...
