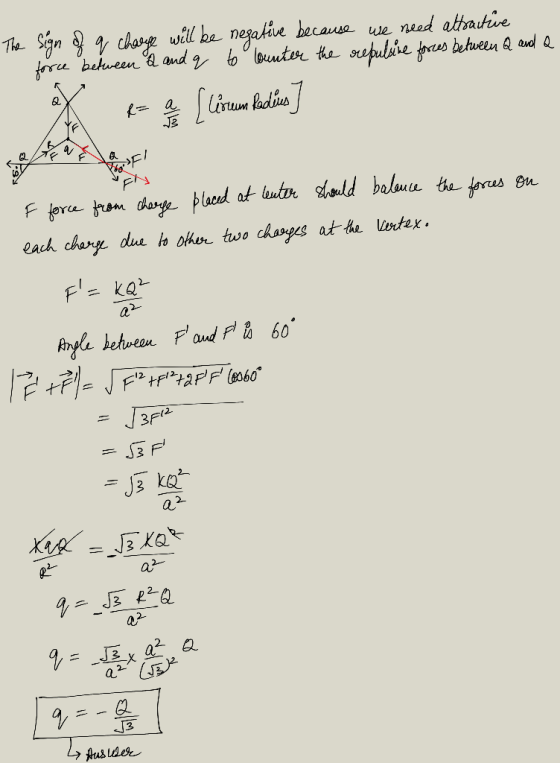

5. [5pt] Three identical charges q are placed on the vertices of an equilateral triangle of...
5. [5pt]
Three identical charges q are placed on the vertices of an
equilateral triangle of side-lengths, a. What charge Q must be
placed in the middle of the triangle (equidistant from the three
charges q) so that the system is in equilibrium?
[ans. Q = -q / sqrt(3)]
