Three identical charges q=1nC are placed in three vertices of an equilateral triangle of side 1m....

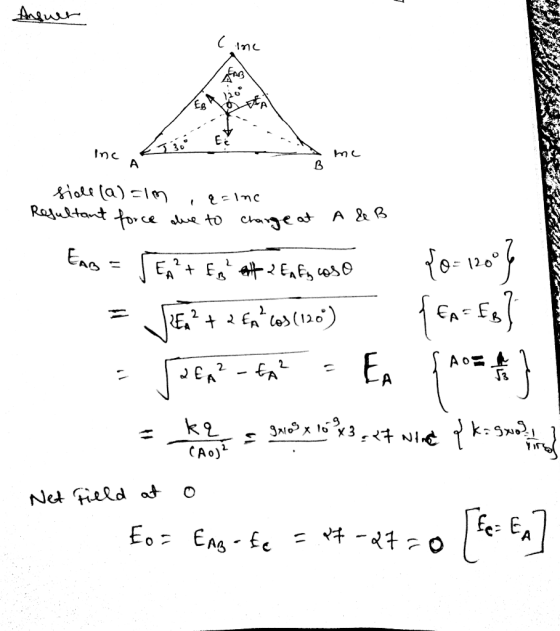

Three identical charges q=1nC are placed in three vertices of an equilateral triangle of side 1m. Make a large clear diagram of this situation and find the electric field at the centre of the triangle (where the angle bisectors cross).
Homework Answers
Add Answer to:
Three identical charges q=1nC are placed in three vertices of an
equilateral triangle of side 1m....
5. [5pt] Three identical charges q are placed on the vertices of an equilateral triangle of...
5. [5pt] Three identical charges q are placed on the vertices of an equilateral triangle of side-lengths, a. What charge Q must be placed in the middle of the triangle (equidistant from the three charges q) so that the system is in equilibrium? [ans. Q = -q / sqrt(3)]
Three identical point charges, Q = +5 C are placed at the vertices of an equilateral...
Three identical point charges,
Q = +5 C are placed at the vertices of an equilateral triangle as
shown in the figure. The length of each side of the triangle is d =
1.5 cm
I think the answer is 3.46E7 upwards but I'm not sure
SECTION B Do all the Problems) 1) Three identical point charges, Q +5HC are placed at the vertices of an equilateral triangle as shown in the figure. The length of each side of the...
Two identical positive point charges, +Q, are placed at two of the vertices of an equilateral...
Two identical positive point charges, +Q, are placed at two of the vertices of an equilateral triangle of side length a. Derive the expression for the magnitude of the electric field at the third vertex of the triangle. Your answer can only contain the symbols Q, a, and ke (the Coulomb constant) and a numerical factor.
Three identical point charges each of charge q are located at the vertices of an equilateral...
Three identical point charges each of charge q are located at
the vertices of an equilateral triangle as shown in the figure. The
distance from the center of the triangle to each vertex is a. (a)
Show that the electric field at the center of the triangle is zero.
(b) Find a symbolic ex pression for the electric potential at the
center of the triangle. (c) Give a physical explanation of the fact
that the electric potential is not zero,...
Three identical point charges each of charge q are located at the vertices of an equilateral...
Three identical point charges each of charge q are located at the vertices of an equilateral triangle as shown in the figure. The distance from the center of the triangle to each vertex is a. (a) Show that the electric field at the center of the triangle is zero. (b) Find a symbolic ex pression for the electric potential at the center of the triangle. (c) Give a physical explanation of the fact that the electric potential is not zero,...
4. Three charges lie on the vertices of an equilateral triangle of side a. Find the...
4. Three charges lie on the vertices of an equilateral triangle of side a. Find the net force on Q in terms of Q,q, a and k. -9
1) The three charges are at the three vertices of an equilateral triangle ?( all angles are 60 degrees) Equilateral side of the triangle 0.5 m a) Draw the forces acting ONLY-on q q 1 and q 2 b) Find...
1) The three charges are at the three vertices of an equilateral triangle ?( all angles are 60 degrees) Equilateral side of the triangle 0.5 m a) Draw the forces acting ONLY-on q q 1 and q 2 b) Find the components of each force on X and Y axes C) Find the net force on X-axis and the y-axis 43 q2 d) Use Pythagorean Theorem to tind the resultant force e) Use tangent to find the direction (angle) the...
Question: Three charges (–q, +q, and Q) are placed at the vertices of an equilateral triangle....
Question: Three charges (–q, +q, and
Q) are placed at the vertices of an equilateral triangle.
The force on Q due to the charges –q and
+q
A) points in the positive x direction
B) points in the positive y direction
C) is zero
D) points in the negative x direction
E) points in the negative y direction
L,
Three identical point charges each of charge q are located at the vertices of an equilateral...
Three identical point charges each of charge q are located at the vertices of an equilateral triangle as in the figure shown below. The distance from the center of the triangle to each vertex is a. (a) Show that the electric field at the center of the triangle is zero. (Submit a file with a maximum size of 1 MB.) Choose Fieno file selected print.pdf Score: 1 out of 1 Comment: (b) Find a symbolic expression for the electric potential...
3. Three point charges q,2q, and -3q are placed at the corners of an equilateral triangle...
3. Three point charges q,2q, and -3q are placed at the corners of an equilateral triangle of side length L as shown in the figure below: a) What is the total force on the charge q at the top of the triangle? b) What is the electric field at the center of the triangle?
Three identical point charges,
Q = +5 C are placed at the vertices of an equilateral triangle as
shown in the figure. The length of each side of the triangle is d =
1.5 cm
I think the answer is 3.46E7 upwards but I'm not sure
SECTION B Do all the Problems) 1) Three identical point charges, Q +5HC are placed at the vertices of an equilateral triangle as shown in the figure. The length of each side of the...
Two identical positive point charges, +Q, are placed at two of the vertices of an equilateral triangle of side length a. Derive the expression for the magnitude of the electric field at the third vertex of the triangle. Your answer can only contain the symbols Q, a, and ke (the Coulomb constant) and a numerical factor.
Three identical point charges each of charge q are located at
the vertices of an equilateral triangle as shown in the figure. The
distance from the center of the triangle to each vertex is a. (a)
Show that the electric field at the center of the triangle is zero.
(b) Find a symbolic ex pression for the electric potential at the
center of the triangle. (c) Give a physical explanation of the fact
that the electric potential is not zero,...
4. Three charges lie on the vertices of an equilateral triangle of side a. Find the net force on Q in terms of Q,q, a and k. -9
1) The three charges are at the three vertices of an equilateral triangle ?( all angles are 60 degrees) Equilateral side of the triangle 0.5 m a) Draw the forces acting ONLY-on q q 1 and q 2 b) Find the components of each force on X and Y axes C) Find the net force on X-axis and the y-axis 43 q2 d) Use Pythagorean Theorem to tind the resultant force e) Use tangent to find the direction (angle) the...
Question: Three charges (–q, +q, and
Q) are placed at the vertices of an equilateral triangle.
The force on Q due to the charges –q and
+q
A) points in the positive x direction
B) points in the positive y direction
C) is zero
D) points in the negative x direction
E) points in the negative y direction
L,
Three identical point charges each of charge q are located at the vertices of an equilateral triangle as in the figure shown below. The distance from the center of the triangle to each vertex is a. (a) Show that the electric field at the center of the triangle is zero. (Submit a file with a maximum size of 1 MB.) Choose Fieno file selected print.pdf Score: 1 out of 1 Comment: (b) Find a symbolic expression for the electric potential...
3. Three point charges q,2q, and -3q are placed at the corners of an equilateral triangle of side length L as shown in the figure below: a) What is the total force on the charge q at the top of the triangle? b) What is the electric field at the center of the triangle?
