1) The three charges are at the three vertices of an equilateral triangle ?( all angles are 60 degrees) Equilateral side of the triangle 0.5 m a) Draw the forces acting ONLY-on q q 1 and q 2 b) Find...

Question

Question

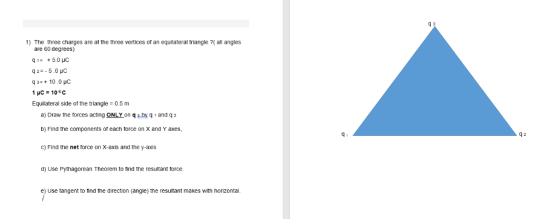

1) The three charges are at the three vertices of an equilateral triangle ?( all angles are 60 degrees) Equilateral side of t

science Advanced-Physics

Answer 1

Answer #1

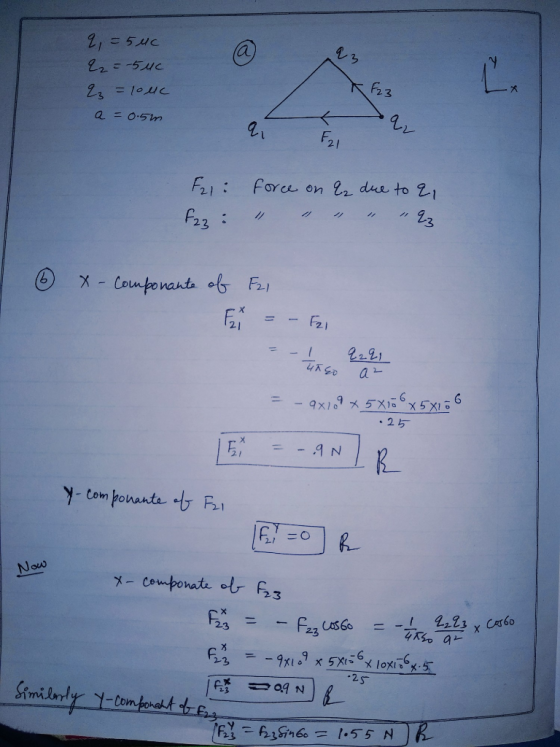

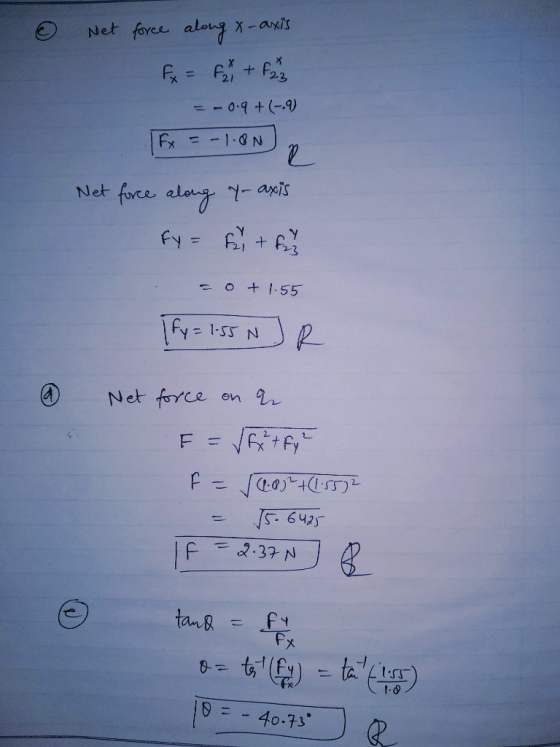

along x- axis Net ot 1.55 Net force on 642 ta- 1. 6 p:-40-73。反 2 a=0.51n 21 F21 FI force on 2r dee to 21 2.1 .2与 2s

Answer 2
