Saturated liquid at 10 psia enters a pump in a steam power plant. Determine the specific...

Saturated liquid at 10 psia enters a pump in a steam power plant. Determine the specific work with an outlet pressure of 200 psia if isentropic efficiency is (a) 100% and (b) 80%.

engineering   Mechanical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

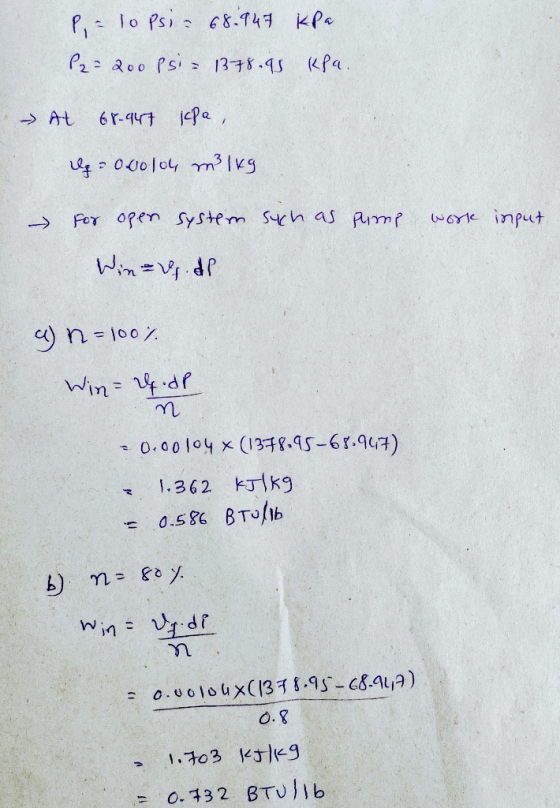

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
Saturated liquid at 10 psia enters a pump in a steam power plant. Determine the specific...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • In a steam power plant, water is pressurized in an adiabatic pump from 100kPa as a saturated liqu...

    In a steam power plant, water is pressurized in an adiabatic pump from 100kPa as a saturated liquid to 5 MPa at 150C. The pump is directly driven by an adiabatic steam turbine, which also powers a generator. Steam enters the steam turbine at 5 MPa and 450C and leaves as saturated vapor at 100kPa. Determine the net-work output of the pump-turbine-generator combination if the generator operates at 85% efficiency. (in kJ/kg) ) b) Determine the entropy generation for both...

  • A steam power plant operates with a maximum pressure of 3750 psia, maximum temperature of 1110...

    A steam power plant operates with a maximum pressure of 3750 psia, maximum temperature of 1110 oF, and condenser pressure of 5 psia. There is a closed feedwater heater with stream extraction pressure of 100 psia with throttled condensate, and an open feedwater heater at a pressure of 700 psia. Assume isentropic turbomachinery. Determine Determine the mass fraction of steam extracted for each feedwater heater. Turbine work in Btu/lb Pump work in Btu/lb Heat addition in steam generator in Btu/lb...

  • Answers are in parenthesis A steam Rankine cycle operates with 100 psia saturated steam that is...

    Answers are in parenthesis A steam Rankine cycle operates with 100 psia saturated steam that is reduced to 1 atm through expansion in a turbine with an isentropic efficiency of 80%. Water is at 80°F and 1 atm when it enters the boilerfeed pump. The pump's isentropic efficiency is 60%. What is the cycle's thermal efficiency? (Note: this is a problem from the PE exam) (0.098)

  • Consider a steam power plant that operates on a reheat Rankine cycle and has a net...

    Consider a steam power plant that operates on a reheat Rankine cycle and has a net power output of 80 MW. Steam enters the high-pressure turbine at 10 MPa and 550°C and the low-pressure turbine at 1 MPa and 550°C. Steam leaves the condenser as a saturated liquid at a pressure of 10 kPa. The isentropic efficiency of the turbine is 80 percent, and that of the pump is 95 percent. Show the cycle on a T-s diagram with respect...

  • Consider a steam power plant that operates on a reheat Rankine cycle and has a net...

    Consider a steam power plant that operates on a reheat Rankine cycle and has a net power output of 80 MW. Steam enters the high-pressure turbine at 10 MPa and 500°C and the low-pressure turbine at 1 MPa and 500°C. Steam leaves the condenser as a saturated liquid at a pressure of 10 kPa. The isentropic efficiency of the turbine is 74 percent and that of the pump is 95 percent. Determine the quality (or temperature, if superheated) of the...

  • You are to analyze a simple steam power plant. At the boiler exit, the pressure is...

    You are to analyze a simple steam power plant. At the boiler exit, the pressure is 8 MPa and the temperature is 1000 °C. The turbine isentropic efficiency is 85%. The condenser pressure is 15 kPa and the water is a saturated liquid at the condenser exit. The pump isentropic efficiency is 80%. Answer the following: a) What is the quality at the exit in %, if the turbine is assumed isentropic? b) What is the work output of the...

  • A steam power plant design consists of an ideal Rankine cycle with regeneration. Steam enters Turbine...

    A steam power plant design consists of an ideal Rankine cycle with regeneration. Steam enters Turbine 1 at P1 and T1 at the rate of m1 and exits at P2. A fraction (y') of the steam exiting Turbine 1 is diverted to a closed feedwater heater while the remainder enters Turbine 2. A portion (y'') of the steam exiting Turbine 2 at P3 is diverted to an open feedwater heater while the remainder enters Turbine 3. The exit of Turbine...

  • Saturated liquid water at 10 kPa leaves the condenser of a steam power plant and is...

    Saturated liquid water at 10 kPa leaves the condenser of a steam power plant and is pumped to the boiler pressure of 5 MPa. Calculate the work for an isentropic pumping process in kJ/kg.

  • A combined gas turbine-vapor power plant has a net power output of 100 MW. Air enters...

    A combined gas turbine-vapor power plant has a net power output of 100 MW. Air enters the compressor of the gas turbine at 100kPa, 300K, and is compressed to 1200kPa. The isentropic efficiency of the compressor is 84%. The conditions at the inlet to the turbine are 1200kPa and 1400 K. Air expands through the turbine, which has an isentropic efficiency of 88%, to a pressure of 100kPa. The air then passes through the interconnecting heat exchanger, and is finally...

  • Superheated steam at 20 MPa, 560oC enters the turbine of a vapor power plant. The pressure...

    Superheated steam at 20 MPa, 560oC enters the turbine of a vapor power plant. The pressure at the exit of the turbine is 0.7 bar, and liquid leaves the condenser at 0.4 bar at 75oC. The pressure is increased to 20.1 MPa across the pump and the specific enthalpy is 338.14 kJ/kg. The turbine isentropic efficiency is 81%. Cooling water enters the condenser at 20oC with a mass flow rate of 70.7 kg/s and exits the condenser at 38oC. For...
