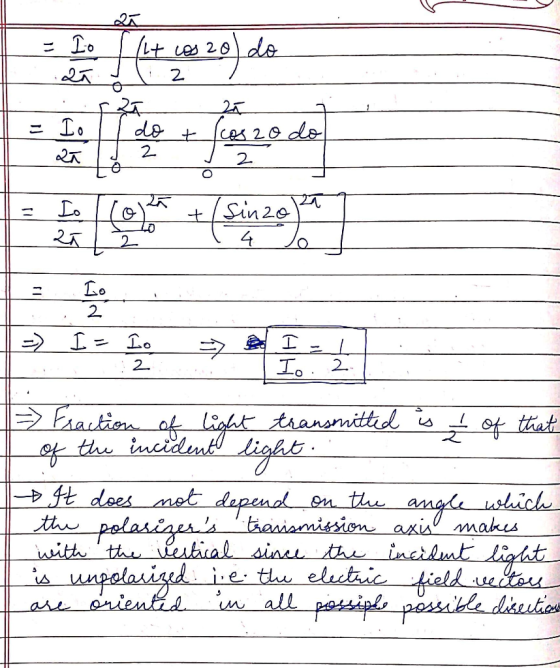

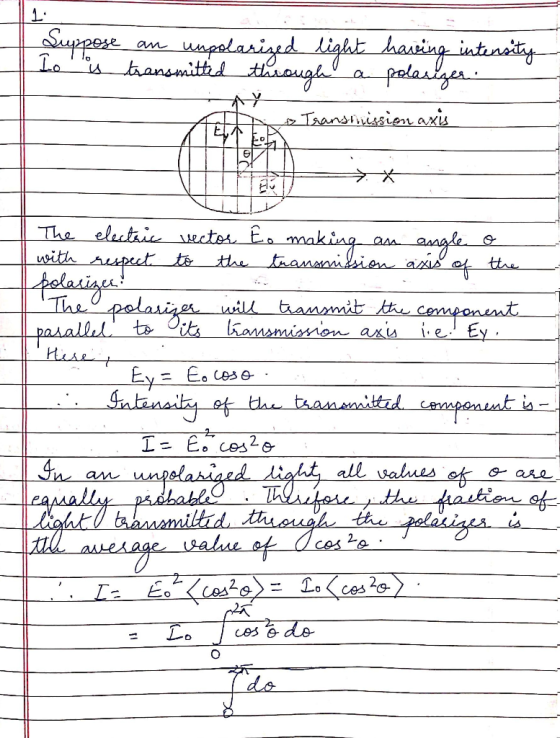

1. Unpolarized light is incident upon a polarizer whose axis is tilted 30 degrees relative to vertical. What fraction of the light is transmitted through the polarizer?

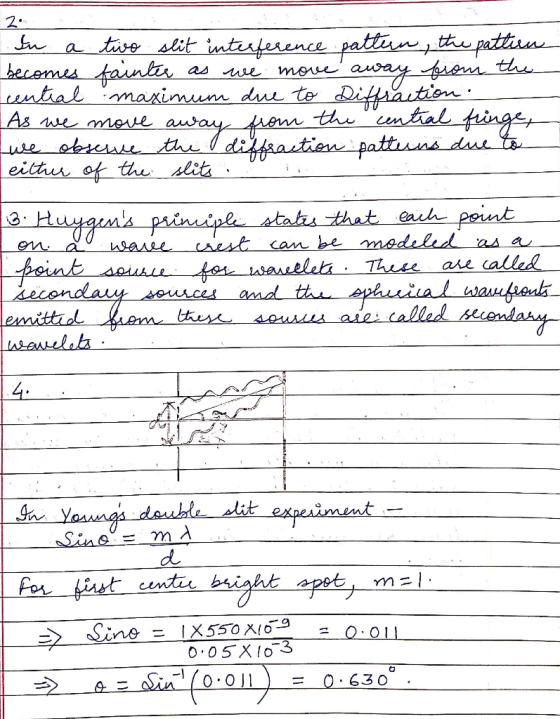

2.
In a two-slit interference pattern, the pattern becomes fainter as we move away from the central maximum due to
Question 4 options:
|
Interference |
|
|
Diffraction |
|
|
Resolution |
|
|
The Rayleigh criterion |
|
|
I don't know. |
3.
Huygens' principle states that
Question 3 options:
|
Monocromatic light incident upon two slits will form an interference pattern. |
|
|
Monocromatic light incident upon a single small slit will form an interference pattern. |
|
|
Each point on a wave crest can be modeled as a point source for wavelets. |
|
|
The optical resolution of the eye is limited. |
|
|
None of the above. |
4) If light with a wavelength of 550 nm is incident on a pair of slits separated by 0.05 mm, what is the angle to the first off-center bright spot?

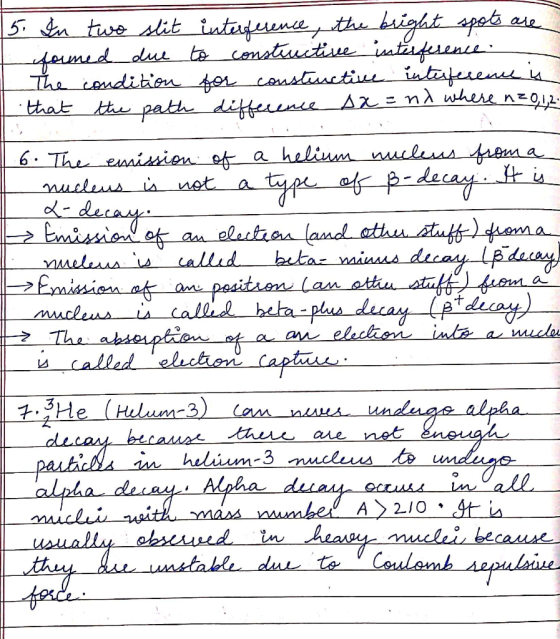

5)
Considering two-slit interference, the locations where bright spots are found on the screen are due to
Question 1 options:
|
Destructive interference. |
|
|
Constructive interference. |
|
|
Dispersion. |
|
|
Diffraction. |
|
|
None of the above. |
6)
Which of the following is not a type of beta-decay?
Question 3 options:
|
The emission of an electron (and other stuff) from a nucleus |
|
|
The emission of an positron (and other stuff) from a nucleus |
|
|
The emission of a helium nucleus from a nucleus |
|
|
The absorption of an electron into a nucleus. |
|
|
All of the above are types of beta decay. |
7)
Why could helium-3 never undergo alpha decay?
Question 4 options:
|
There is not enough energy stored in the bonds of helium-3 to allow for alpha decay. |
|
|
There are not enough particles in a helium-3 nucleus to undergo alpha decay. |
|
|
Alpha decay requires mediation via neutrinos, which will not interact with a helium-3 nucleus. |
|
|
None of the above. |
|
|
I don't know. |
