What is the expected cost per letter for the huffman coding below B 10 E 45...
What is the expected cost per letter for the huffman coding below
| B | 10 |
| E | 45 |
| S | 25 |
| T | 20 |
Homework Answers

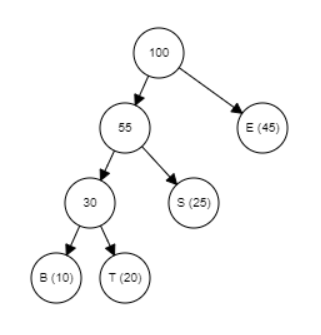

Huffman tree: --------------
Huffman codewords: -------------------- B - 000 E - 1 S - 01 T - 001
Cost per Letter: ----------------- B - 3 bits E - 1 bits S - 2 bits T - 3 bits
