The maximum potential difference across the terminals of a 60.0-Hz sinusoidal ac source is +17.0 V...
The maximum potential difference across the terminals of a 60.0-Hz sinusoidal ac source is +17.0 V at t = 1/4 cycle. If at t = 0 the potential difference is zero, calculate the potential difference at t = 2.00 ms

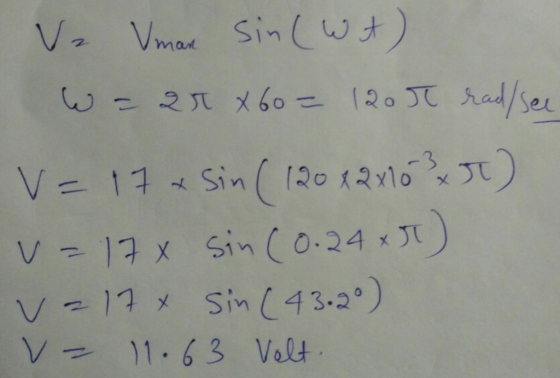

please show work and explain, book says answer is 11.6V
Homework Answers
Add Answer to:
The maximum potential difference across the terminals of a
60.0-Hz sinusoidal ac source is +17.0 V...
24. An AC source operating at 60. Hz with a maximum voltage of 170 V is...
24. An AC source operating at 60. Hz with a maximum voltage of 170 V is connected in series with a resistor (R 1.2 k2) and an inductor (L = 2.8 H). (a) what is the maximum value of the current in the circuit? (b) What are the maximum values of the potential difference across the resistor and the induc- tor? (c) When the current is at a maximum, what are the mag- nitudes of the potential differences across the...
A 380 Hz sinusoidal voltage with a maximum amplitude of 120 V at t = 0 is applied across the terminals of an inductor.
A 380 Hz sinusoidal voltage with a maximum amplitude of 120 V at t = 0 is applied across the terminals of an inductor. The maximum amplitude of the steady-state current in the inductor is 20 A. Part A What is the frequency of the inductor current? Part B If the phase angle of the voltage is zero, what is the phase angle of the current? Part C What is the inductive reactance of the inductor? Part D What is the inductance of the inductor? Part E What is the...
An AC source operating at 60-Hz with a maximum voltage of 170 V is connected in series with a resistor (R = 1.2 k Q) and capacitor (C = 2.5 μF).
An AC source operating at 60-Hz with a maximum voltage of 170 V is connected in series with a resistor (R = 1.2 k Q) and capacitor (C = 2.5 μF). a) What is the maximum value of the current in the circuit? b) What is the maximum values of the potential difference across the resistor and capacitor? c) When the current is zero, what are the magnitudes of the potential difference across the resistor, capacitor and AC source? How much charge is...
2. An AC power source with V 220 V and f60.0 Hz is connected in a...
2. An AC power source with V 220 V and f60.0 Hz is connected in a series RLC circuit. The resistance, R. inductance, L, and capacitance. C. of this circuit are, respectively. 46.0 12, 0.150 H. and 0.035 mF. Find each of the following quantities, (a) the inductive reactance, the capacitive reactance, (c) the impedance of the circuit (d) the maximum current through the circuit (based on the frequency given above) (e) the maximum potential difference across each circuit element...
(1 point) When an ac source with a peak potential difference of 48 V is connected...
(1 point) When an ac source with a peak potential difference of 48 V is connected to a series RLC circuit, the peak current is 5 A. The capacitor is C = 50 uF, the frequency is 120 Hz, and the current leads the potential difference by 55º. Find the resitance and the inductance. R= 12 L = Н.
(1 point) When an ac source with a peak potential difference of 60 V is connected...
(1 point) When an ac source with a peak potential difference of 60 V is connected to a series RLC circuit, the peak current is 2 A. The capacitor is C = 35 uF, the frequency is 140 Hz, and the current leads the potential difference by 50°. Find the resitance and the inductance. R= 12 L = H
(1 point) When an ac source with a peak potential difference of 32 V is connected...
(1 point) When an ac source with a peak potential difference of 32 V is connected to a series RLC circuit, the peak current is 3 A. The capacitor is C = 35 uF, the frequency is 110 Hz, and the current leads the potential difference by 40.. Find the resitance and the inductance. R= 12 L= H
(1 point) When an ac source with a peak potential difference of 46 V is connected...
(1 point) When an ac source with a peak potential difference of 46 V is connected to a series RLC circuit, the peak current is 3 A. The capacitor is C = 104F, the frequency is 110 Hz, and the current leads the potential difference by 350. Find the resitance and the inductance. RE 46/3 12 0.225 H
A 45-mH inductor is connected to an ac source of emf with a frequency of 250...
A 45-mH inductor is connected to an ac source of emf with a frequency of 250 Hz and a maximum emf of 20 V. If the voltage across the inductor is +20 V at time t = 0, what is the voltage at time t = 2.0 ms? A : 0 V B : −10 V C :20 V D : −20 V E : 10 V
step by step plase A 10.0-uF capacitor is plugged into a 110 V-rms 60.0-Hz voltage source,...
step by step plase
A 10.0-uF capacitor is plugged into a 110 V-rms 60.0-Hz voltage source, with an ammeter in series. Show that the rms current through the capacitor is 0.415 A. Before the switch is closed in the figure, the potential across the capacitor is 200 V. At some instant after the switch is closed, the instantaneous current is 0.70 A. Show that the energy in the capacitor at this instant is 31 milliJoules. s 4.0 uF 0.20 H
24. An AC source operating at 60. Hz with a maximum voltage of 170 V is connected in series with a resistor (R 1.2 k2) and an inductor (L = 2.8 H). (a) what is the maximum value of the current in the circuit? (b) What are the maximum values of the potential difference across the resistor and the induc- tor? (c) When the current is at a maximum, what are the mag- nitudes of the potential differences across the...
2. An AC power source with V 220 V and f60.0 Hz is connected in a series RLC circuit. The resistance, R. inductance, L, and capacitance. C. of this circuit are, respectively. 46.0 12, 0.150 H. and 0.035 mF. Find each of the following quantities, (a) the inductive reactance, the capacitive reactance, (c) the impedance of the circuit (d) the maximum current through the circuit (based on the frequency given above) (e) the maximum potential difference across each circuit element...
(1 point) When an ac source with a peak potential difference of 48 V is connected to a series RLC circuit, the peak current is 5 A. The capacitor is C = 50 uF, the frequency is 120 Hz, and the current leads the potential difference by 55º. Find the resitance and the inductance. R= 12 L = Н.
(1 point) When an ac source with a peak potential difference of 60 V is connected to a series RLC circuit, the peak current is 2 A. The capacitor is C = 35 uF, the frequency is 140 Hz, and the current leads the potential difference by 50°. Find the resitance and the inductance. R= 12 L = H
(1 point) When an ac source with a peak potential difference of 32 V is connected to a series RLC circuit, the peak current is 3 A. The capacitor is C = 35 uF, the frequency is 110 Hz, and the current leads the potential difference by 40.. Find the resitance and the inductance. R= 12 L= H
(1 point) When an ac source with a peak potential difference of 46 V is connected to a series RLC circuit, the peak current is 3 A. The capacitor is C = 104F, the frequency is 110 Hz, and the current leads the potential difference by 350. Find the resitance and the inductance. RE 46/3 12 0.225 H
step by step plase
A 10.0-uF capacitor is plugged into a 110 V-rms 60.0-Hz voltage source, with an ammeter in series. Show that the rms current through the capacitor is 0.415 A. Before the switch is closed in the figure, the potential across the capacitor is 200 V. At some instant after the switch is closed, the instantaneous current is 0.70 A. Show that the energy in the capacitor at this instant is 31 milliJoules. s 4.0 uF 0.20 H
