Calculate the strength of the electric fields at the origin produced by the following two charges:...
Calculate the strength of the electric fields at the origin produced by the following two charges: +10nC at 0.04m to the right of the origin, +5.0nC at 0.02m south of the origin & do not forget the angle.
Homework Answers

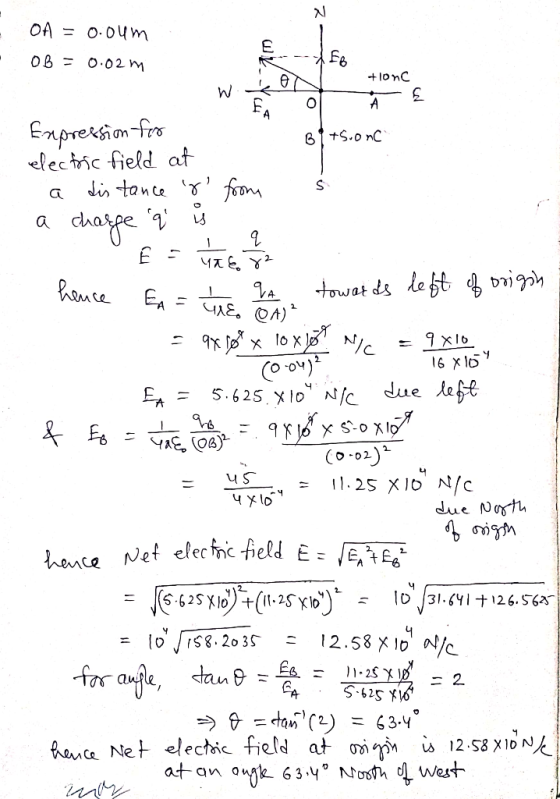

net electric field is
3600 - 63.40 = 296.60 counter
clockwise from Positive X axis
