List the Class of the following networks and thereafter sub-net them according to the instructions contained...
- List the Class of the following networks and thereafter sub-net them according to the instructions contained in the table, i.e. calculate the sub-network addresses, the subnet mask, the broadcast addresses and range of the legal unicast addresses for each subnet in both scenarios. Subnet all 0’s and 1’s are illegal. (Use the answer template in Appendix A.)
|
Network Address |
Number of networks required |
|

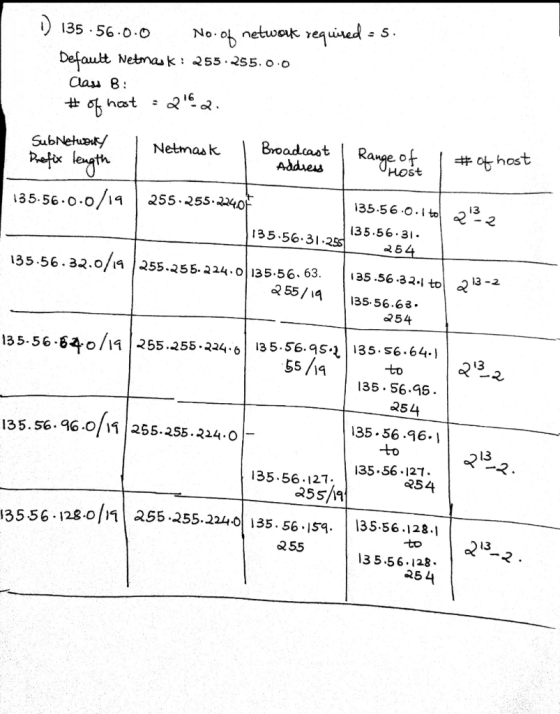

133.56.0.0 |
5 |
|

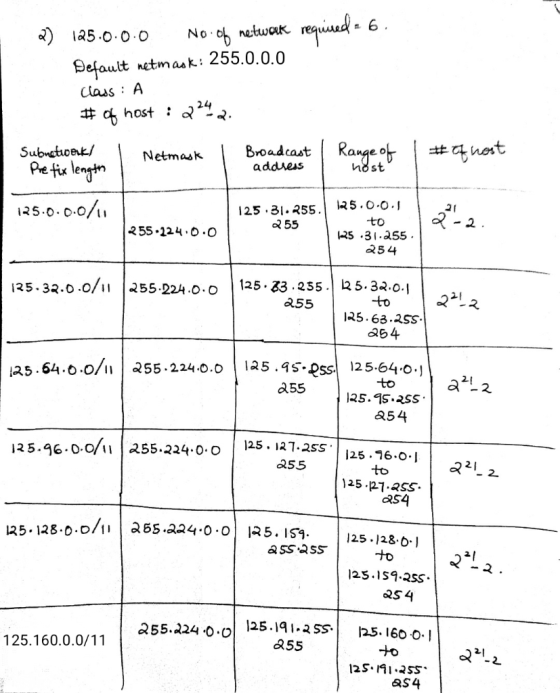

125.0.0.0 |
6 |
Appendix A
|
Scenario 1 |
||||
|
Network |
Default NetMask |
Class |
# of hosts |
|
|
133.56.0.0 |
||||
|
SubNetwork/ Prefix Length |
Netmask |
Broadcast |
Range of Hosts |
# of hosts |
|
Addr |
||||
|
Scenario 2 |
||||
|
Network |
Default NetMask |
Class |
# of hosts |
|
|
125.0.0.0 |
||||
|
SubNetwork/ Prefix Length |
Netmask |
Broadcast |
Range of Hosts |
# of hosts |
|
Addr |
||||
