Assume a transparent rod of diameter d = 3.75 µm has an index of refraction of...

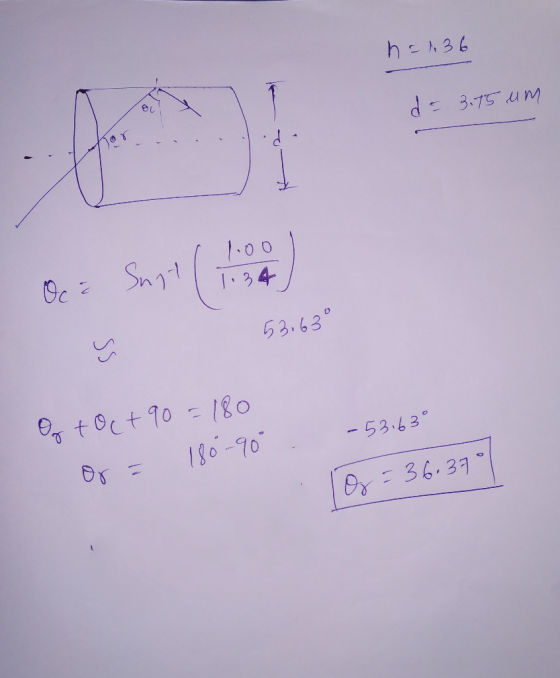

Assume a transparent rod of diameter d = 3.75 µm has an index of refraction of 1.34. Determine the maximum angle θ for which the light rays incident on the end of the rod in the figure below are subject to total internal reflection along the walls of the rod. Your answer defines the size of the cone of acceptance for the rod.
Homework Answers
Add Answer to:
Assume a transparent rod of diameter d = 3.75 µm has an index of
refraction of...
One of the pieces of experimental apparatus involves a beam of light entering a transparent rod (see the figure below) of diameter d = 4.50 um and index of refraction n = 1.23
You are working in an optical research laboratory. One of the pieces of experimental apparatus involves a beam of light entering a transparent rod (see the figure below) of diameter d = 4.50 um and index of refraction n = 1.23, surrounded by air. Your supervisor has given you the task of determining the cone of acceptance for the rod, which is the maximum angle θmax (in degrees) for which the light rays incident on the end of the rod are...
Determine the maximum angle θ for which the light rays incident on the end of the...
Determine the maximum angle θ for which the light rays
incident on the end of the light pipe in the figure below are
subject to total internal reflection along the walls of the pipe.
Assume that the pipe has an index of refraction of 1.33 and that the outside medium is
air.
°?
UIDE QUESTIONS 1. If the transparent material has an index of refraction of 1.60, what is...
UIDE QUESTIONS 1. If the transparent material has an index of refraction of 1.60, what is the angle of incidence beyond which total internal reflection occurs? 2. Is it possible for the critical angle to exist when light goes from air ( n = 1.00 ) into water (n 1.33)? Explain your answer. PROBLEMS 1. A ray of light from air, incident at an angle of 60° on top of a transparent surface, is refracted and reflected partly. It is...
A plastic paperweight with an index of refraction n = 1.29 rests on a desk as...
A plastic paperweight with an index of refraction n = 1.29 rests
on a desk as shown in the figure. An incident ray of light enters
the horizontal top surface at an angle ? to the vertical. Find the
minimum value of ? for which the internal reflection on the
vertical surface of the paperweight is total. Assume that the index
of refraction of air is 1.
A plastic paperweight with an index of refraction n = 1.29 rests on...
A ray of light is incident in air on a block of a transparent solid whose...
A ray of light is incident in air on a block of a transparent
solid whose index of refraction is n. If n = 1.34, what is the
largest angle of incidence for which total internal reflection will
occur at the vertical face (point shown in the figure )?
A transparent oil of index of refraction 1.15 spills on the surface of water (index of...
A transparent oil of index of refraction 1.15 spills on the surface of water (index of refraction 1.33), producing a maximum of reflection with normally incident green light (wavelength 500 nm in air). Assuming the maximum occurs in the first order, determine the thickness of the oil slick. nm
The figure shows the vertical interface between two transparent materials with different indices of refraction. You...
The figure shows the vertical interface between two transparent
materials with different indices of refraction. You do not know the
exact value of
for each material, but you are told that total internal reflection
is possible for light rays incident on the interface from the right
side.
Given this information, which of the numbered rays is a possible
refracted ray for the incident ray shown?
At an interface between an unknown transparent material and water, a ray of light is incident...
At an interface between an unknown transparent material and water, a ray of light is incident from the water side at an angle of 30.0 degrees to the normal. The refracted ray makes an angle of 25.0 degrees. A) what is the index of refraction for the unknown material? B) what is the critical angle for total internal reflection for the interface described? C) Make a drawing showing the geometry for rays that would undergo total internal reflection at this...
At an interface between an unknown transparent materials and water, a ray of light is incident...
At an interface between an unknown transparent materials and water, a ray of light is incident from the water side at an angle of 45 degree to the normal. The refracted ray makes an angle of 36.8 degree with the normal. A) What is the index of refraction for the unknown materials? B) what is the critical angle for total internal reflection for the interface described? C) make a drawing showing the geometry for rays that would undergo total internal reflection...
A light ray passes through a rectangular slab of transparent material having index of refraction n=2,...
A light ray passes through a rectangular slab of transparent material having index of refraction n=2, as shown in the figure (Figure 1) . The incident angle is θ0=70.0∘. Determine θa. Determine θb. Determine θc.
Determine the maximum angle θ for which the light rays
incident on the end of the light pipe in the figure below are
subject to total internal reflection along the walls of the pipe.
Assume that the pipe has an index of refraction of 1.33 and that the outside medium is
air.
°?
UIDE QUESTIONS 1. If the transparent material has an index of refraction of 1.60, what is the angle of incidence beyond which total internal reflection occurs? 2. Is it possible for the critical angle to exist when light goes from air ( n = 1.00 ) into water (n 1.33)? Explain your answer. PROBLEMS 1. A ray of light from air, incident at an angle of 60° on top of a transparent surface, is refracted and reflected partly. It is...
A plastic paperweight with an index of refraction n = 1.29 rests
on a desk as shown in the figure. An incident ray of light enters
the horizontal top surface at an angle ? to the vertical. Find the
minimum value of ? for which the internal reflection on the
vertical surface of the paperweight is total. Assume that the index
of refraction of air is 1.
A plastic paperweight with an index of refraction n = 1.29 rests on...
A ray of light is incident in air on a block of a transparent
solid whose index of refraction is n. If n = 1.34, what is the
largest angle of incidence for which total internal reflection will
occur at the vertical face (point shown in the figure )?
The figure shows the vertical interface between two transparent
materials with different indices of refraction. You do not know the
exact value of
for each material, but you are told that total internal reflection
is possible for light rays incident on the interface from the right
side.
Given this information, which of the numbered rays is a possible
refracted ray for the incident ray shown?
